Pocket Spring Row Cutting Machine YT-HQ-2
The pocket spring coiler adopts PLC program control, full touch screen operation. It's used for strip pocket spring cutting.
On the other hand, it has automatic reading, cutting and conveying functions, simple operation, high degree of automation, can save glue to the maximum extent, reduce costs.
This spring cutting machine also has fault detection and protection device, which can improve the safety of the whole machine, with automatic stop function when the material is used up.
In terms of price, we have a special quotation sheet for each machine. At the same time, we can also provide professional mattress machinery solutions and quotations according to your manufacturing needs.
If you need more information about pocket spring row cutting machine, please leave us a message, or contact our sales representative.
Parameters of YT-HQ-2
Total Power |
3.3KW |
Power Supply |
3-Phase, 380 V, 50 Hz/60 Hz |
Total Weight |
600KG |

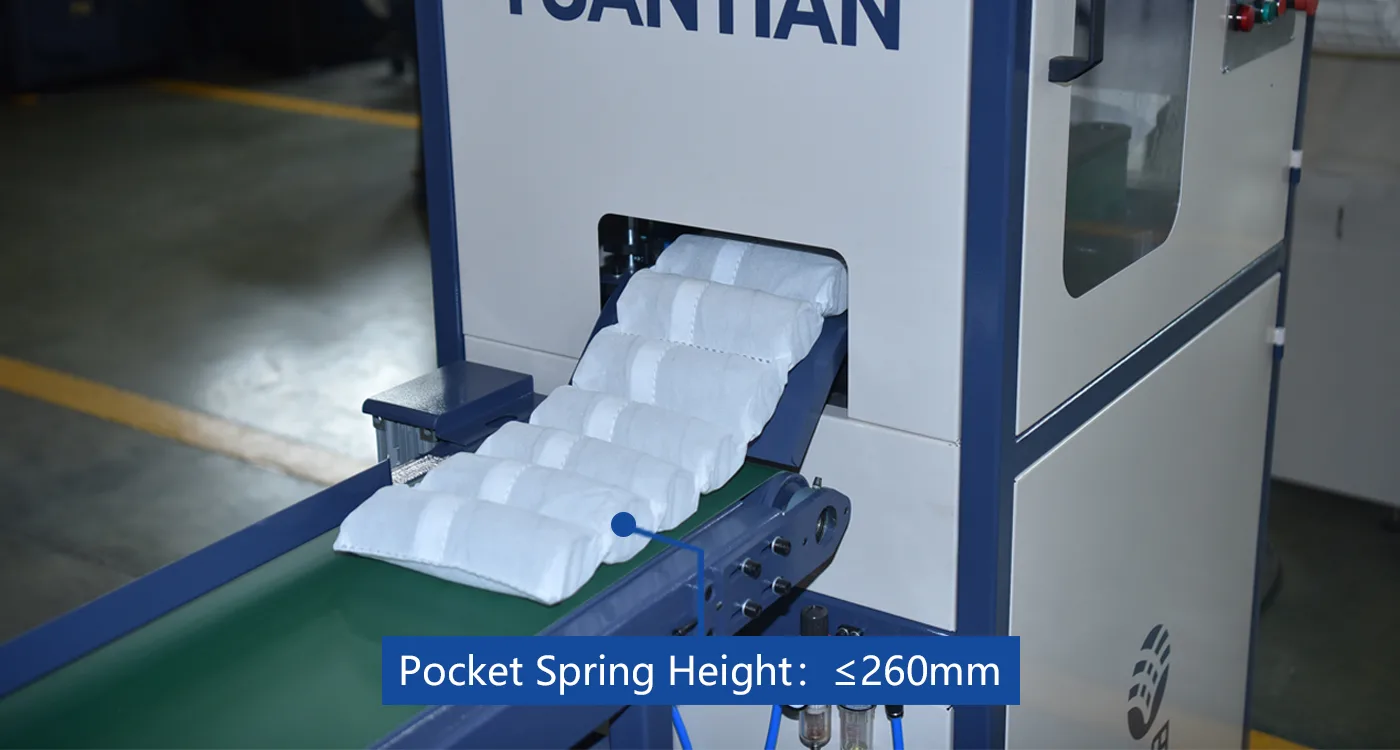

Pocket Spring Height |
≤260mm |
Air Pressure |
0.6-0.8Mpa |

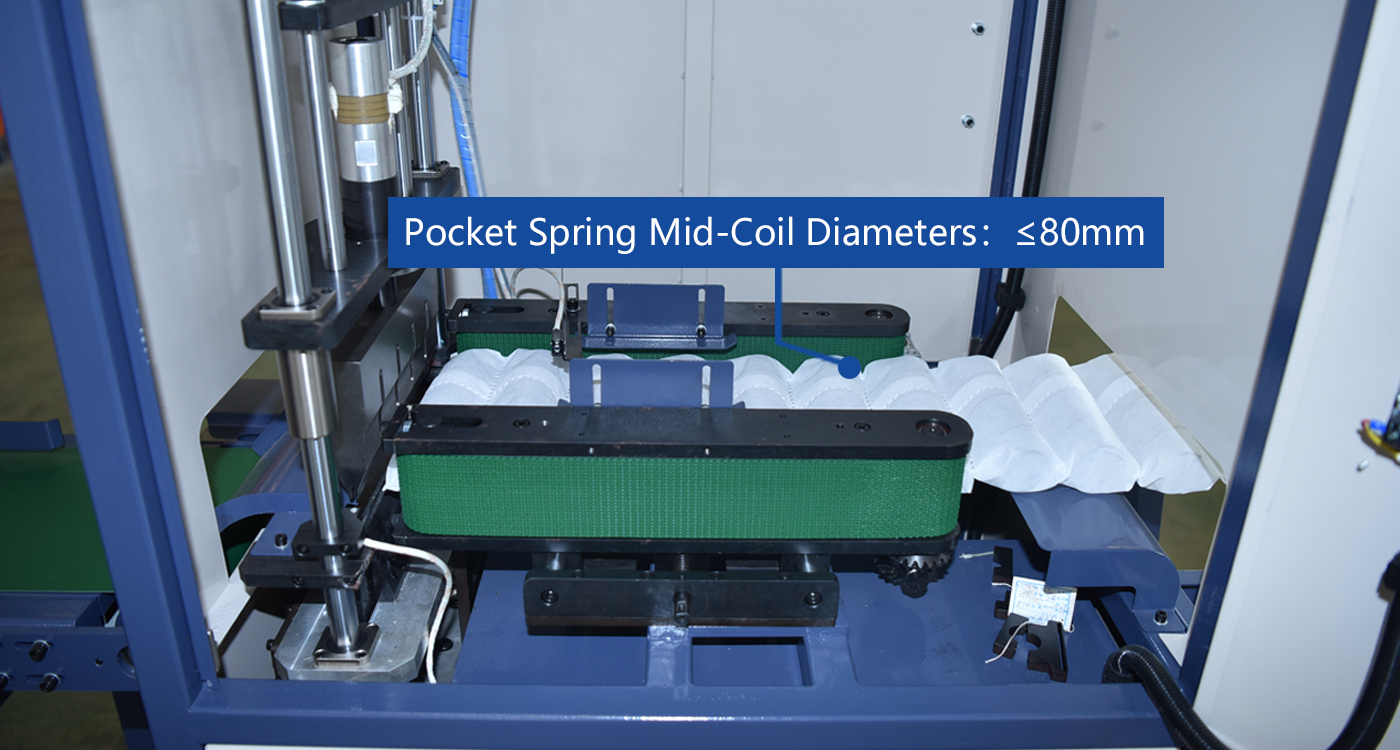

Pocket Spring Mid-Coil Diameters |
≤80mm |
Overall Dimension |
4050x820x1800mm |
