Pocket Spring Machine YT-DZ-10

Pocket Spring Machine

YT-DZ-10

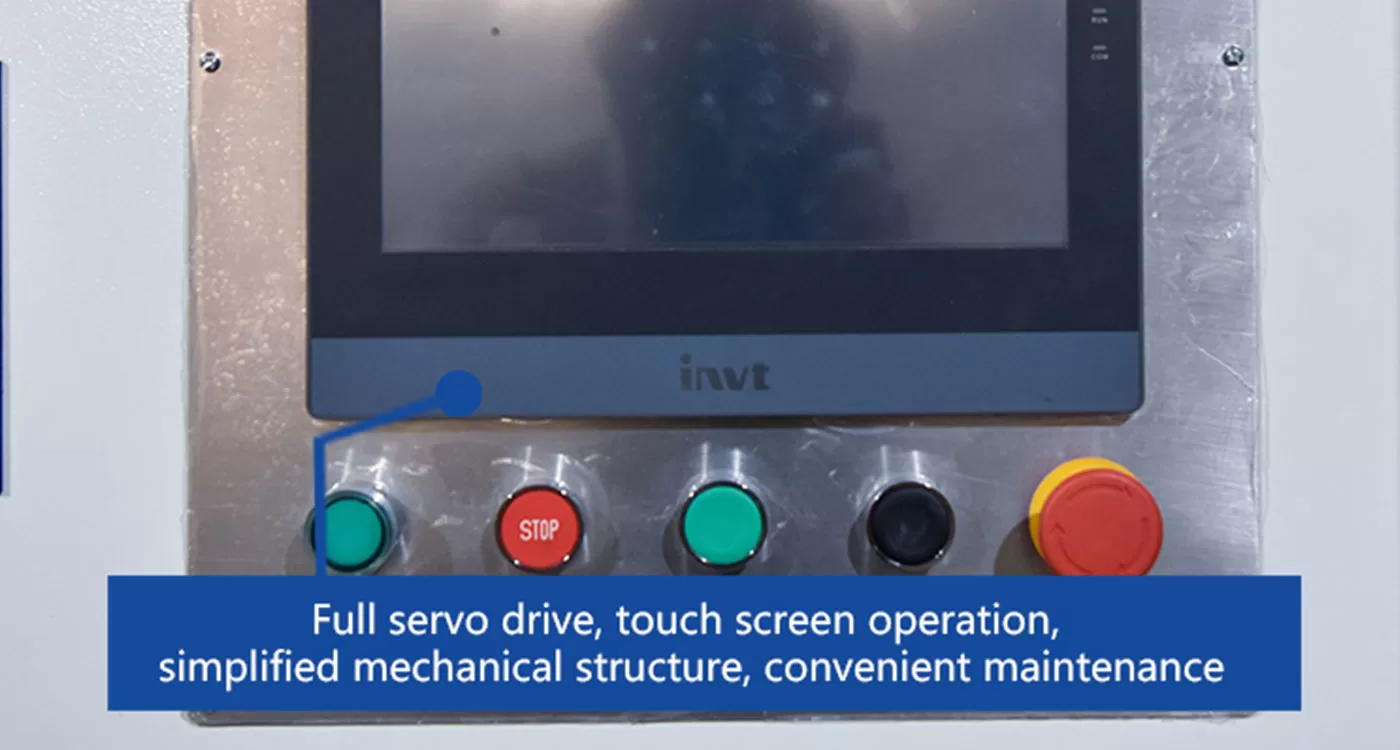

The pocket spring machine is specially designed for the production of high-quality independent pocket springs, featuring an advanced full servo drive system and a touch screen operation interface. The equipment is easy to operate, with a compact mechanical structure, ensuring an efficient and stable production process. It is an ideal choice for modern spring manufacturing enterprises.

The equipment is equipped with dual heads for double springs, which greatly improves production efficiency. It also integrates an automatic cutting device, achieving an integrated operation of spring forming and cutting, significantly enhancing production efficiency.

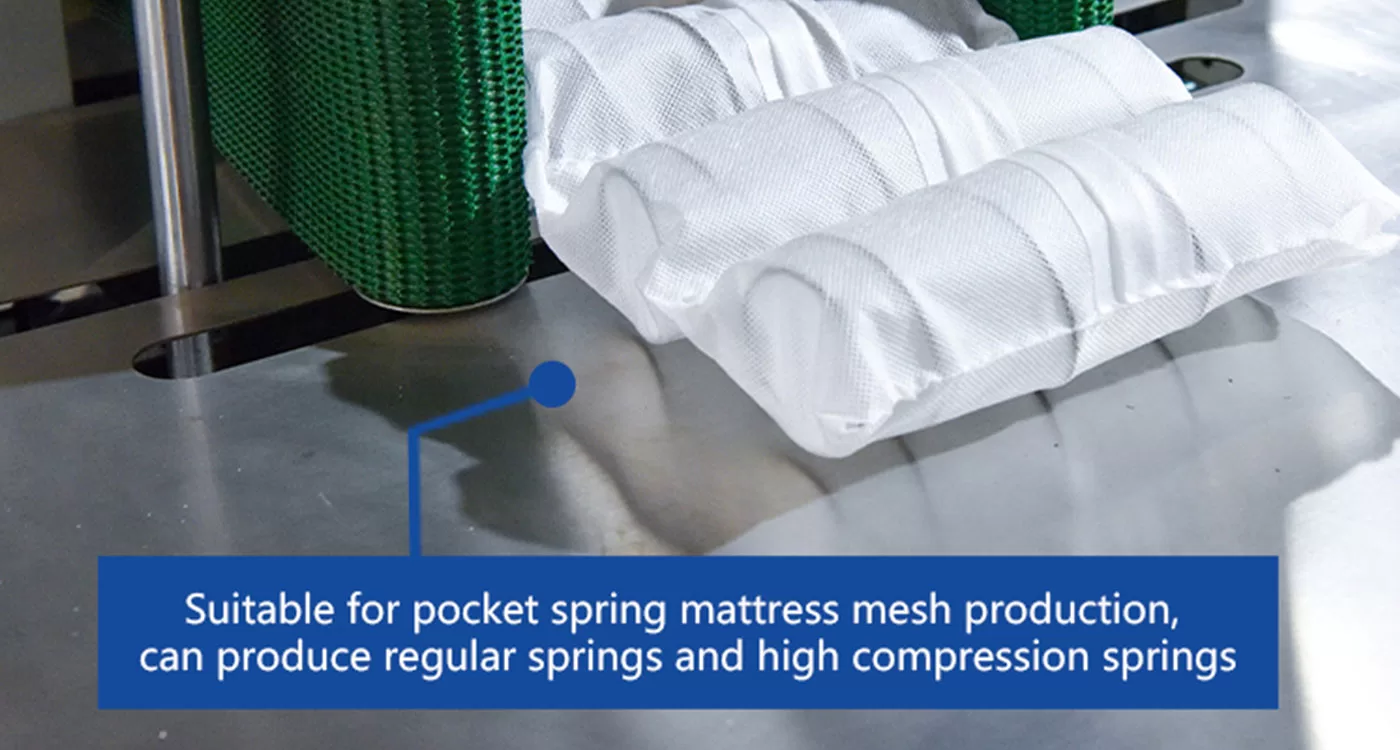

This pocket spring machine is suitable for the production of standard springs, low-profile springs, and high-compression springs, and parameters can be flexibly adjusted according to customer requirements. Meanwhile, multiple spring specification parameters can be set and stored, and the production mode can be switched quickly, significantly saving debugging time and reducing labor operation costs.

Spring Shape	Straight shape or waist – drum shape	Total Power Capacity	≈63.5KW
Production Efficiency	80pcs/min	Power Supply	3Ph 380V 50Hz
Wire Dia	1.8 – 2.1mm	Overall Dimension	2750×1730×2220mm
Non-Woven Fabric Width	380 – 600mm	Reel Dimension	2500×650×1850mm
Spring Middle Dia	52 – 75mm	Payoff Rack Dimension	2280×1500×1850mm

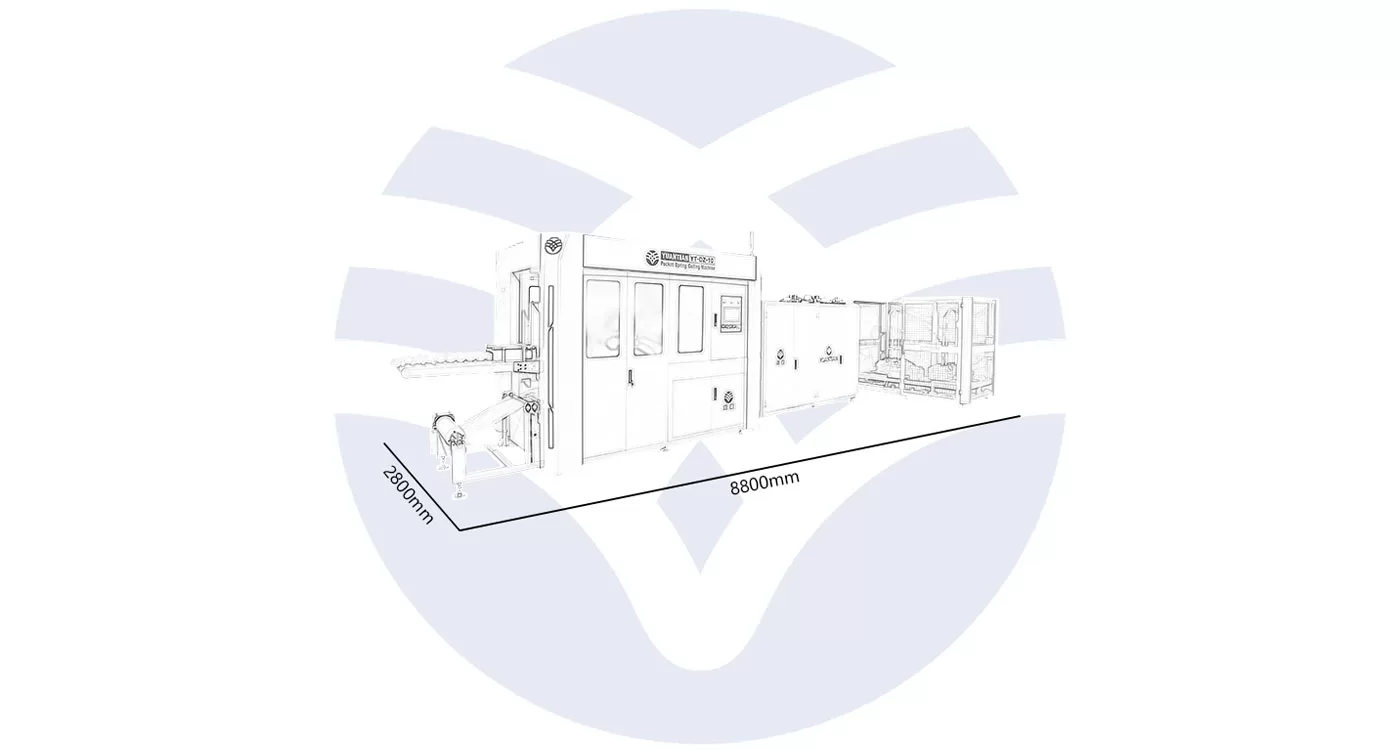

Pocket Spring Height	150 – 220mm	Total Installation Dimension	8800×2800mm
Air – Pressure	0.6 – 0.8MPa
