Bonnell Spring Assembling Machine YT-CW-2

Bonnell Spring Assembling Machine
Bonnell Spring Assembling Machine

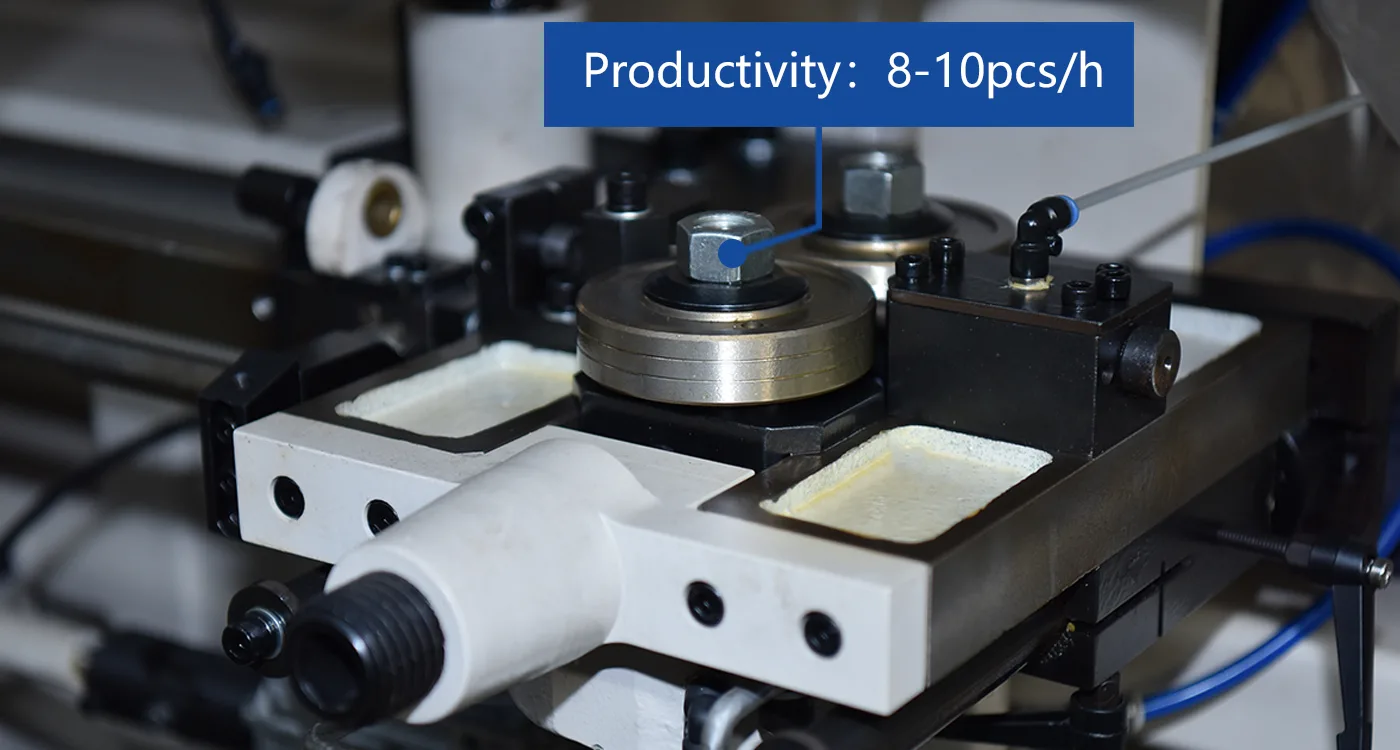

Productivity
Productivity

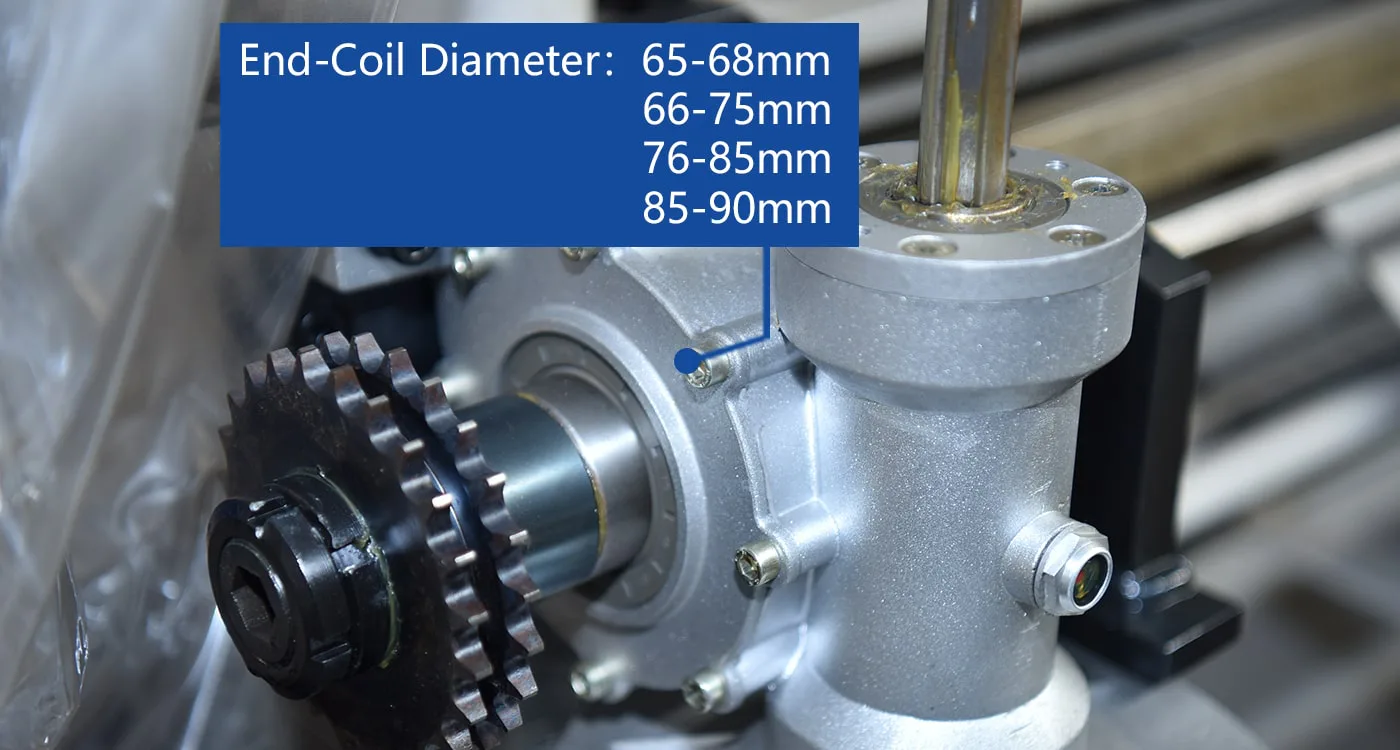

End-Coil Diameter
End-Coil Diameter

Semi-Auto Spring Assembling Machine (YT-CW-2)

1. This machine is mainly used for assembling spring units with springs and helical wire.

2. The parameters such as spring unit size, helical wire diameter, end coil diameter, spring height can be set within a certain range, upper and lower assembling can complete simultaneously, according to different size of jaws.

3. Auto cutting and clenching can be realized at both ends of helical wire, auto-stop when helical wire jammed.

4. Operation is easy and simple by one person, capacity 60-80 sheets / 8 hour.

Parameters of YT-CW-2

Total Power

2.95KW

Productivity

8-10pcs/h

Power Supply

3-Phase 380V 50Hz

Max Width of Unit

2m

Spring Height

80-190mm

Total Weight

1060KG

Helical Wire Diameter

φ1.3-φ1.4 mm

Spring Wire Diameter

φ2.0-φ2.4 mm

Overall Dimension

3150x1810x1730mm

End-Coil Diameter

(Different end-coil diameter,use different jaws accordingly)

Jaw Model

End-Coil Diameter

68B Jaw

65-68mm

78B Jaw

66-75mm

A Jaw

76-85mm

C Jaw

85-90mm

YT-CW-2 Bonnell Spring Assembling Machine Sample
