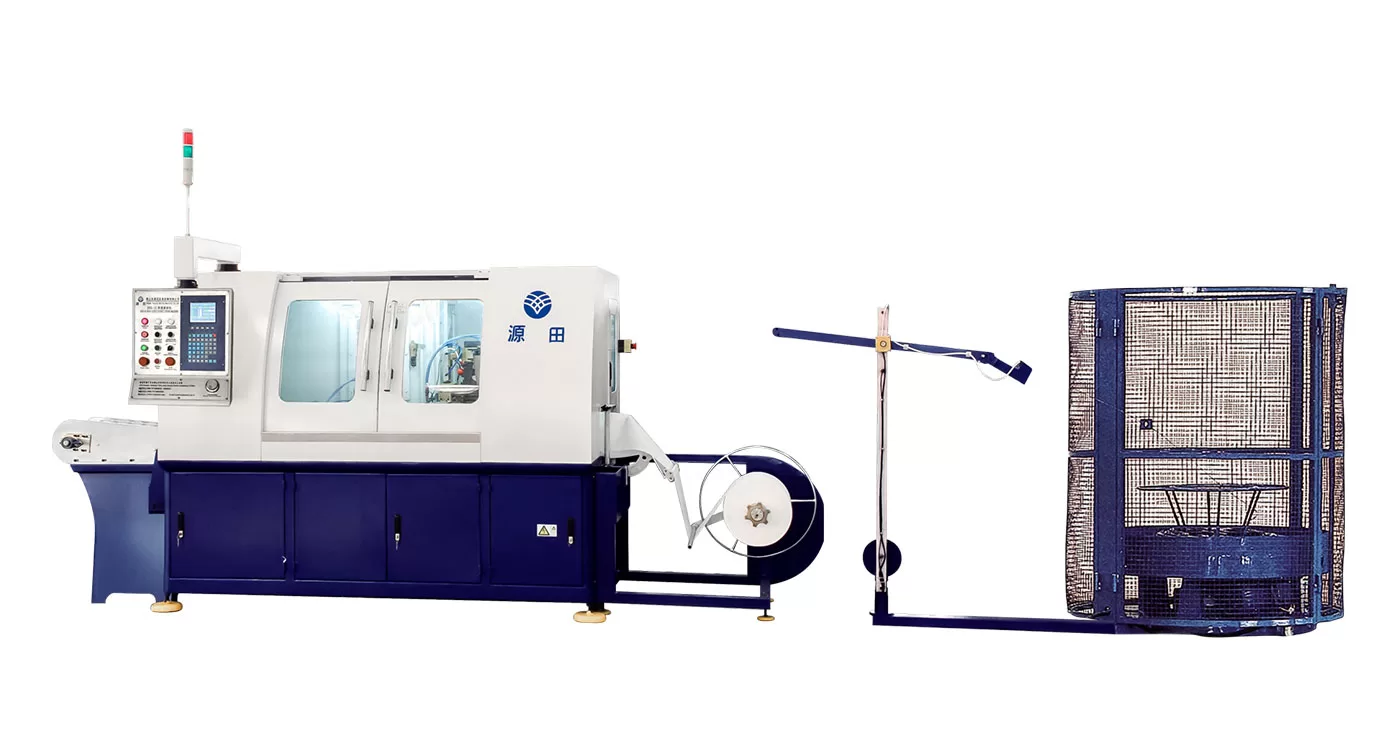

Pocket Spring Coiling Machine YT-DZG-1A

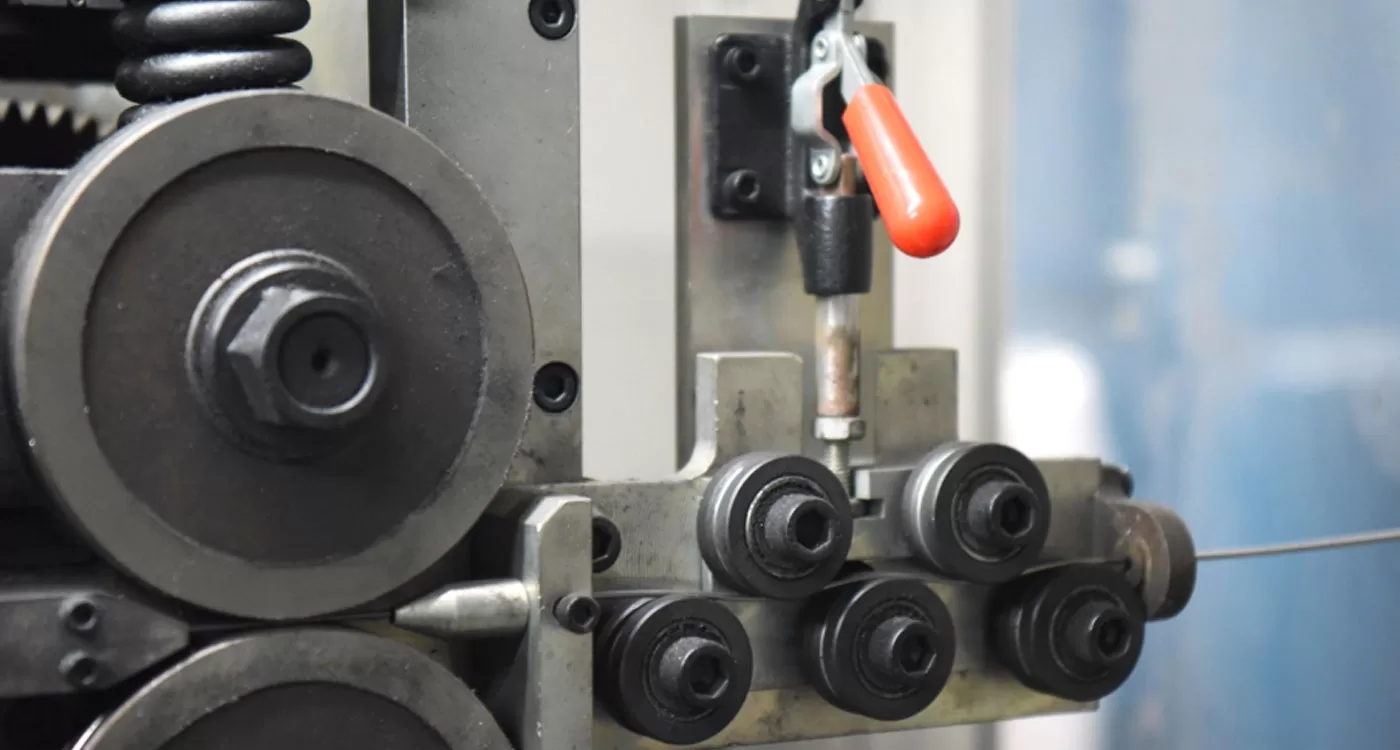

The DZG-1A automatic pocket spring machine is developed and researched on our original pocket spring machine for several years. This equipment is protected by the patent. It adopts PLC for control to increase intelligence, automation and safety. When working, it can auto-test the cloth-feeding and wire-feeding status. When the woven-fabric and wire are use up or spring choked, the machine can auto-stop and the above status and trouble are display on screen. It adopts separate cloth-feeding motor to feed non-woven, the minimum width of which is 70-80g/m2, so the cost of production can thus be decreased. It has the automatic cutting function.
1. Using computer numerical control spring machine, after setting parameters, no need to adjust and automatically store data, no need to re – debug settings, can realize different specifications of springs, using optimized design, compact structure, easy installation and debugging, good safety.
2.Curtain – type lining and non – woven fabric device, prevent fabric belt damage.

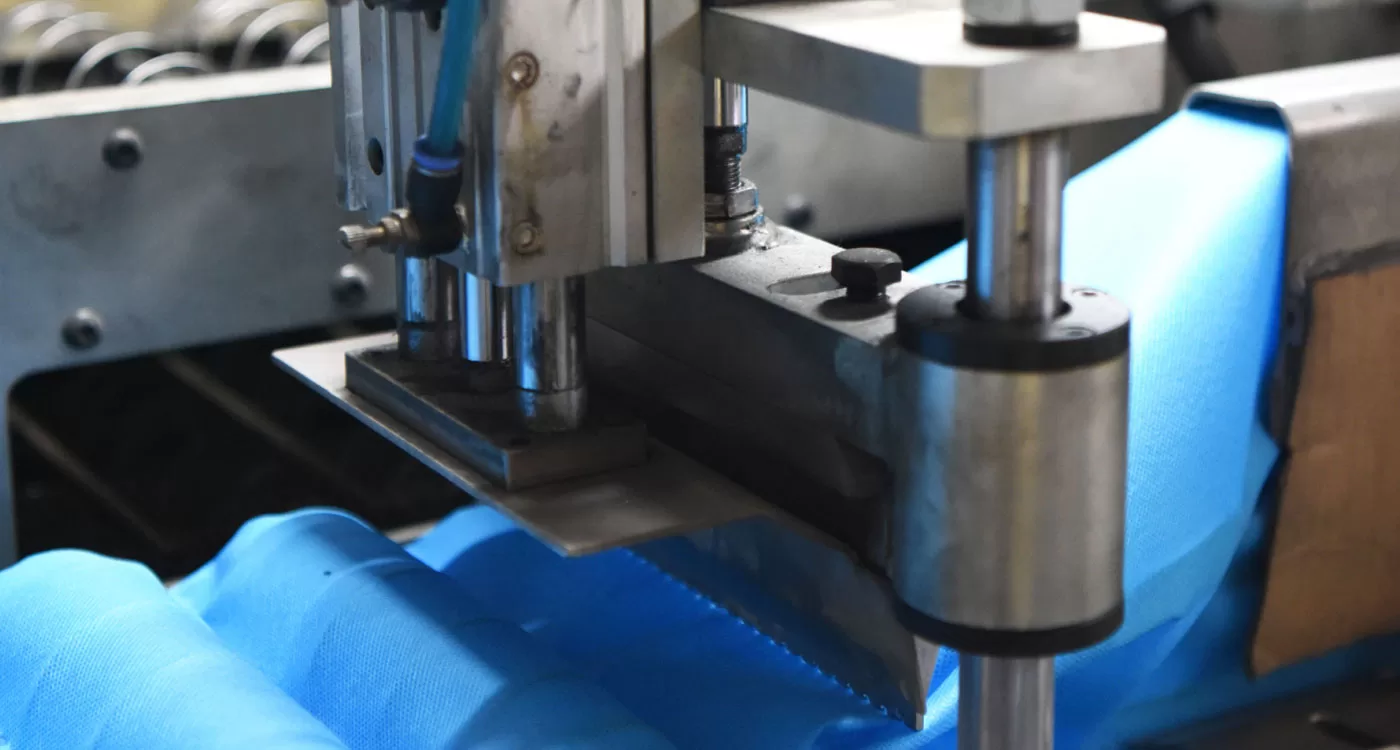

3. Automatic cutting, carry out fixed – length cutting for strip springs.
In terms of price, we have a special quotation sheet for each machine. At the same time, we can also provide professional mattress machinery solutions and quotations according to your manufacturing needs.
If you need more information about mattress pocket spring coiling machine, please leave us a message, or contact our sales representative.
Parameters of YT-DZG-1A
Productivity | 65Pcs/min |
Overall Dimension | 239017201730mm |
Air Supply | 0.6~0.8Mpa |
Air Consumption | >0.8m³/min |
Total Power | 35kw |
Power Supply | 3Ph380v50hz (Can be customized) |
Free Spring Height | (160~260)mm |
Pocketed Spring Height | (120~220)mm |
Wire Diameter | (Φ1.8~Φ2.3)mm |
Mid – Coil Diameter | (Φ62~Φ75)mm |
Non – Woven Fabric Width | (380~600)mm |
Non – Woven Fabric Thickness | ≥70g/m² |
