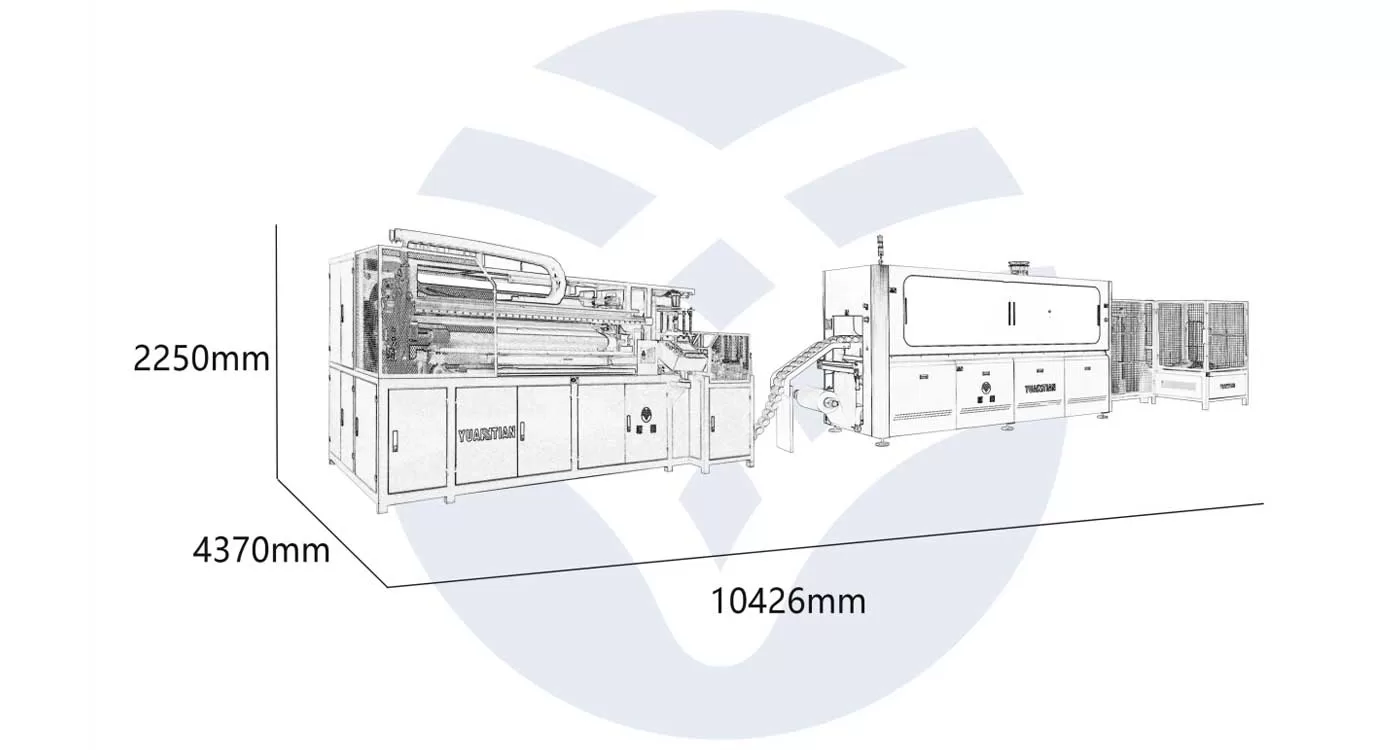

Automatic Pocket Spring Unit Production Line YT-DZG-6+DX-012
YT-DZG-6 pocket spring machine is the newly developed and researched product with independent IPR. It adopts automatic CNC spring coiling machines and sets spring sizes full parameterization. And data of various specifications of springs can be stored to convert different specifications rapidly. It applies servo control extensively that simplifies mechanical structures and makes it more convenient to care and maintain. When the machine breaks down and runs out of materials, intelligent detecting system can auto-stop and alert and the above status and trouble will be displayed on control screen, which fully realizes its advantage of easily understand and operate. It can auto cut the springs and connect heat-welded fabric, so it can substantially reduce operators’ labor strength and improve production efficiency. As an ideal equipment for mattress industry, it optimizes and rebuilds the adjustment of the speed of payoff rack and adds its adjusting knob, showing the designing characteristic of humanization.
YT-DZG-6+DX-012
Technical Parameter | Details | Technical Parameter | Details | |
Speed | 110Pcs/min | Speed | 110Pcs/min | |
Overall Size (LxWxH) | 402617951917mm | Overall Size (LxWxH) | 4026*1795*1917mm | |
Power Supply | 3Ph380v50hz (Can be customized) | Power Supply | 3Ph380v50hz (Can be customized) | |
Air Supply | 0.6 – 0.8MPa | Air Supply | 0.6 – 0.8MPa | |
Air Consumption | 0.8m³/min | Air Consumption | 0.8m³/min | |
Total Power | 40KW | Total Power | 40KW | |
Working Power | 25kw | Working Power | 25kw | |
Free Spring Height | 190 – 250mm | Free Spring Height | 190 – 250mm | |
Pocketed Spring Height | 150 – 210mm | Pocketed Spring Height | 150 – 210mm | |
Wire Diameter | Φ1.8 – Φ2.2mm | Wire Diameter | Φ1.8 – Φ2.2mm | |
Mid – Coil Diameter | Φ55 – Φ75mm | Mid – Coil Diameter | Φ55 – Φ75mm | |
Non – Woven Fabric Density | ≥70g/m² | Non – Woven Fabric Density | ≥70g/m² |
