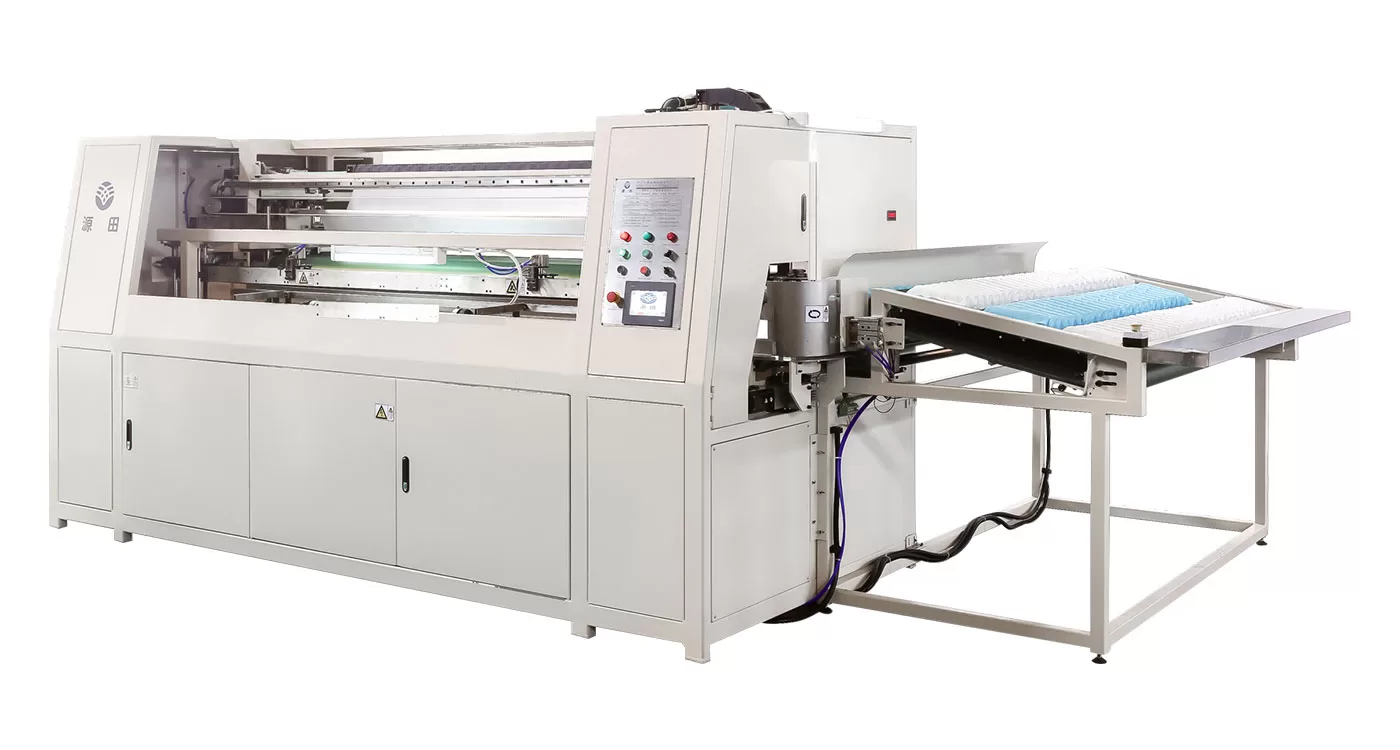

Automatic Pocket Spring Assembling Machine YT-DN-6

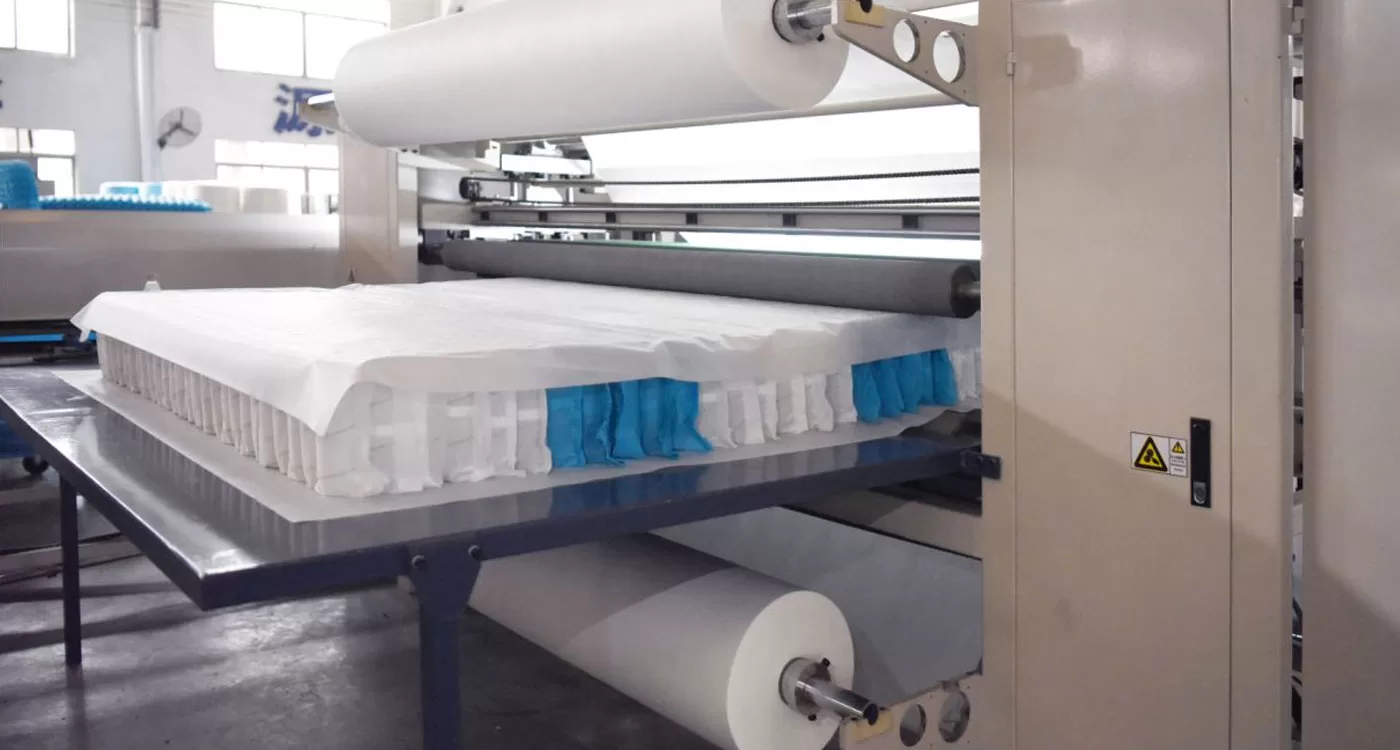

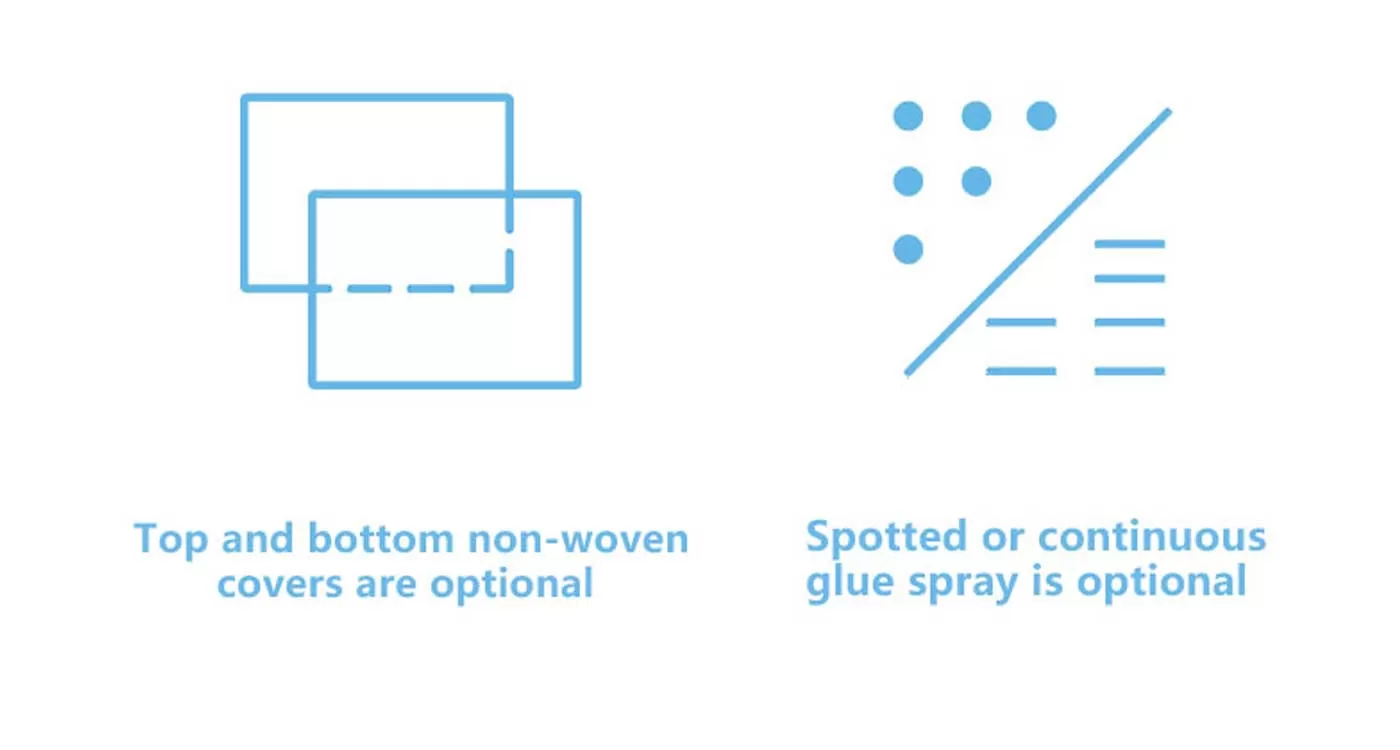

YT-DN-6 Digital Controlled Pocket Spring Assembling Machine is used for assembling pocket spring rows with/without non-woven covers. Operator just needs simply and continuously to put pocket spring rows onto the conveyor device. The machine will automatically deliver, reorganize springs, spray the glue, press and join the spring rows until a complete spring unit is finished. It will also cut the pocket spring unit to the set size automatically and push it out. During the whole process, the operator does not need to put the spring rows in good order. The width of pocket spring unit is simply adjusted by the wheel adjustment structure and clamping belt speed. Conveyor belt position is adjusted electrically by gear motor jogging, in order to adapt to different pocket spring height accordingly. This has simplified the conversion procedure, increased productivity and saved labor. It will be the most ideal and popular equipment for pocket spring mattress production.
1. Automatically complete conveying,finishing, glue – spraying and advancing sticky – link.
2. Automatically cut the target bed net according to the set requirements and send it out automatically.

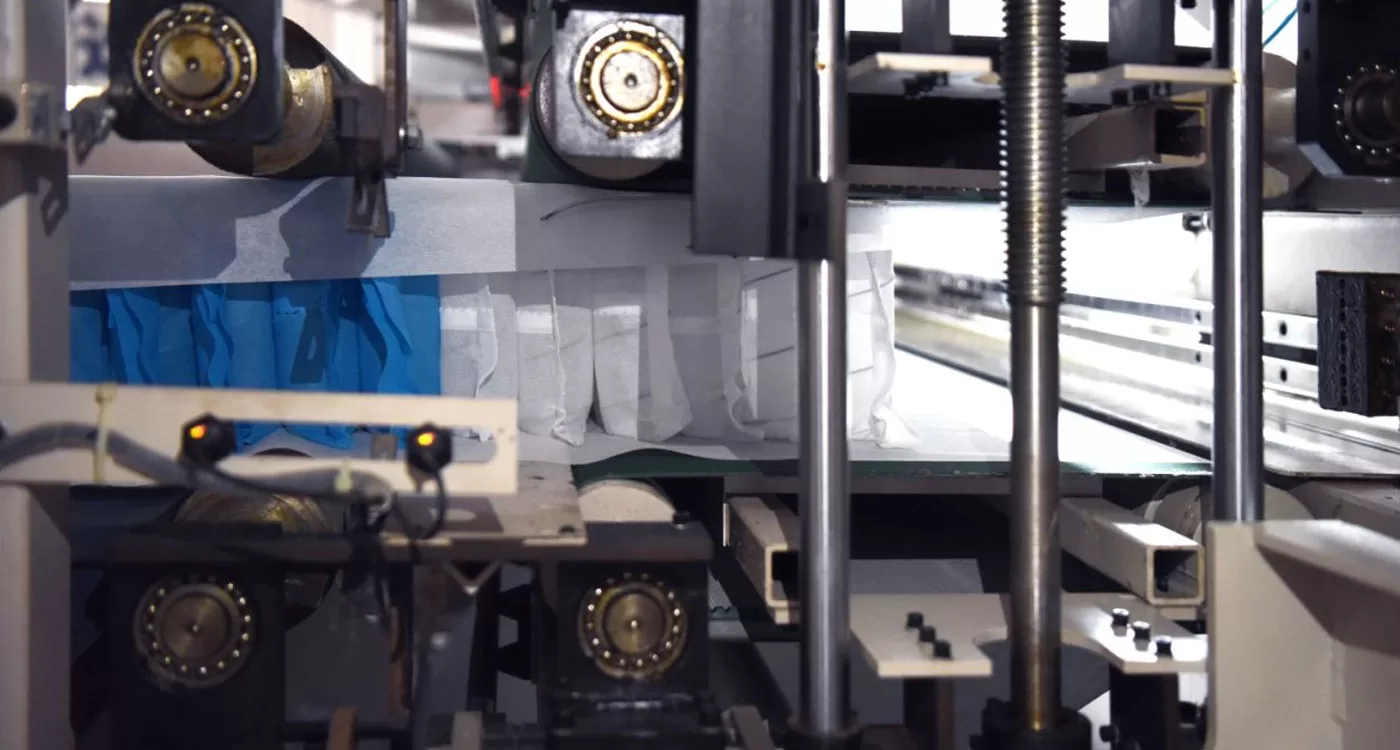

3. By adjusting the paddle wheel mechanism and matching the speed of the clamping belt, the width of the bed net can be easily adjusted (The width of the bed net can be adjusted by adjusting the paddle wheel mechanism, and the position of the conveyer belt can be adjusted electrically by driving the lifting and lowering reducer).
Parameters of YT-DN-6
| Spring Shape | Barrel and Cylindrical Shape |
| Spring Unit Width | ≤2100mm |
| Productivity | Pocket spring unit 15 – 20 pcs/h |
| Spring Mid – coil Diameter | 50~70mm |
| Spring Height | 120~220mm |
| Non – Woven Width | 700~2100mm |
| Non – Woven Size | Outer Diameter ≤750mm |
| Non – woven Fabric Roll Weight | ≤150Kg |
| Power Supply | 3Ph 380V 50Hz (Can be customized) |
| Air Pressure | 0.6~0.8MPa |
| Air Consumption | 0.1m/min |
| Total Power | 9.0kw |
| Main Framework | 3692*1650*2000mm |

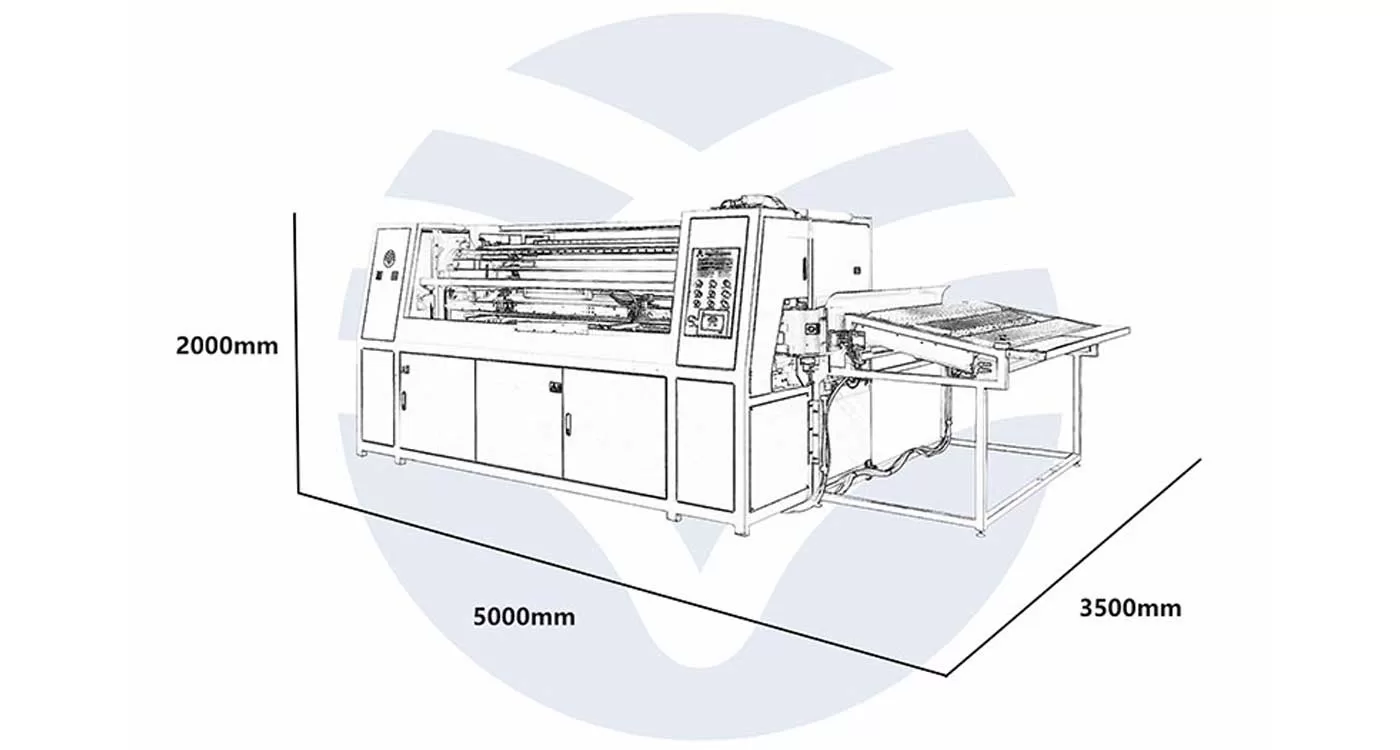

| Overall Dimension | 5000*3500*2000mm (Including workbench and conveyor table) |
| Total Weight | ≈2800Kg |
