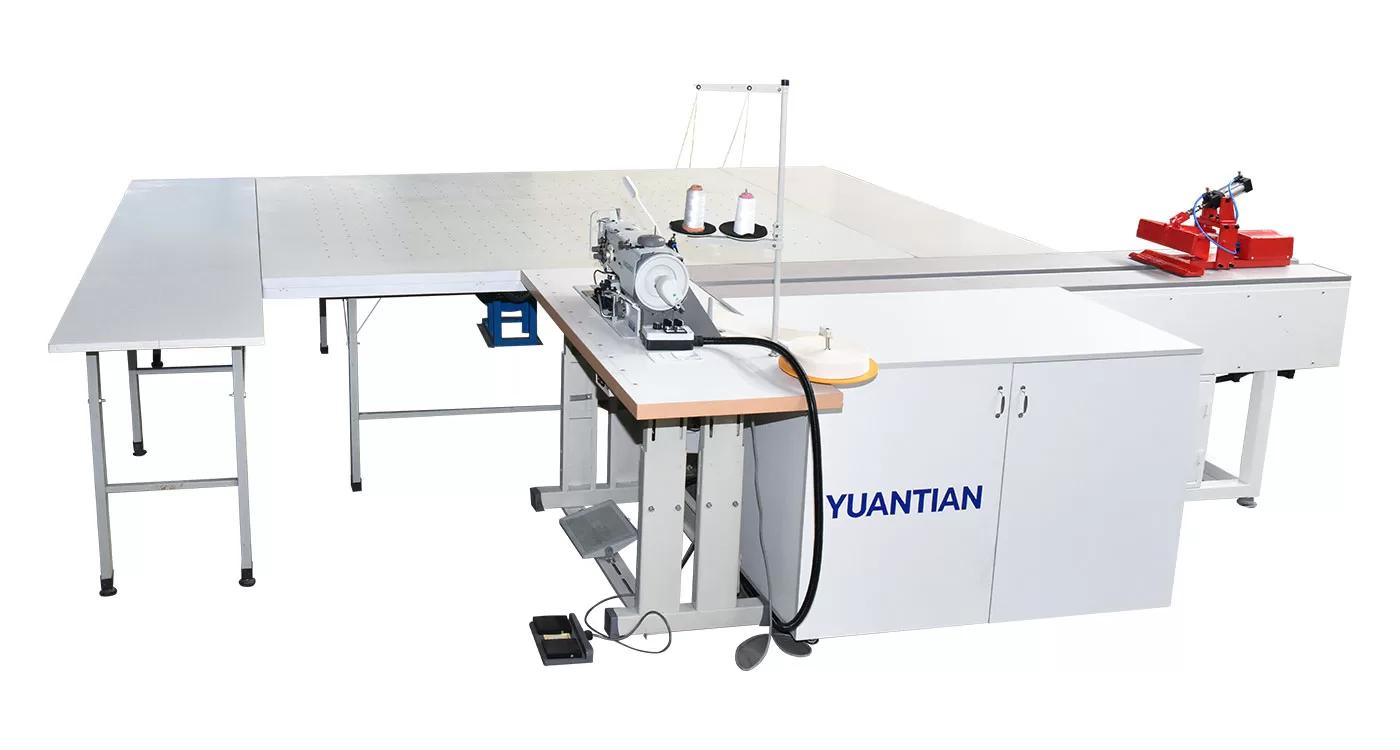

Tape Binding Machine YT-BT-1

Tape Binding Machine
Tape Binding Machine
Tape Binding Machine
YT-BT-1
Tape Binding Machine
YT-BT-1
Tape Binding Machine
YT-BT-1

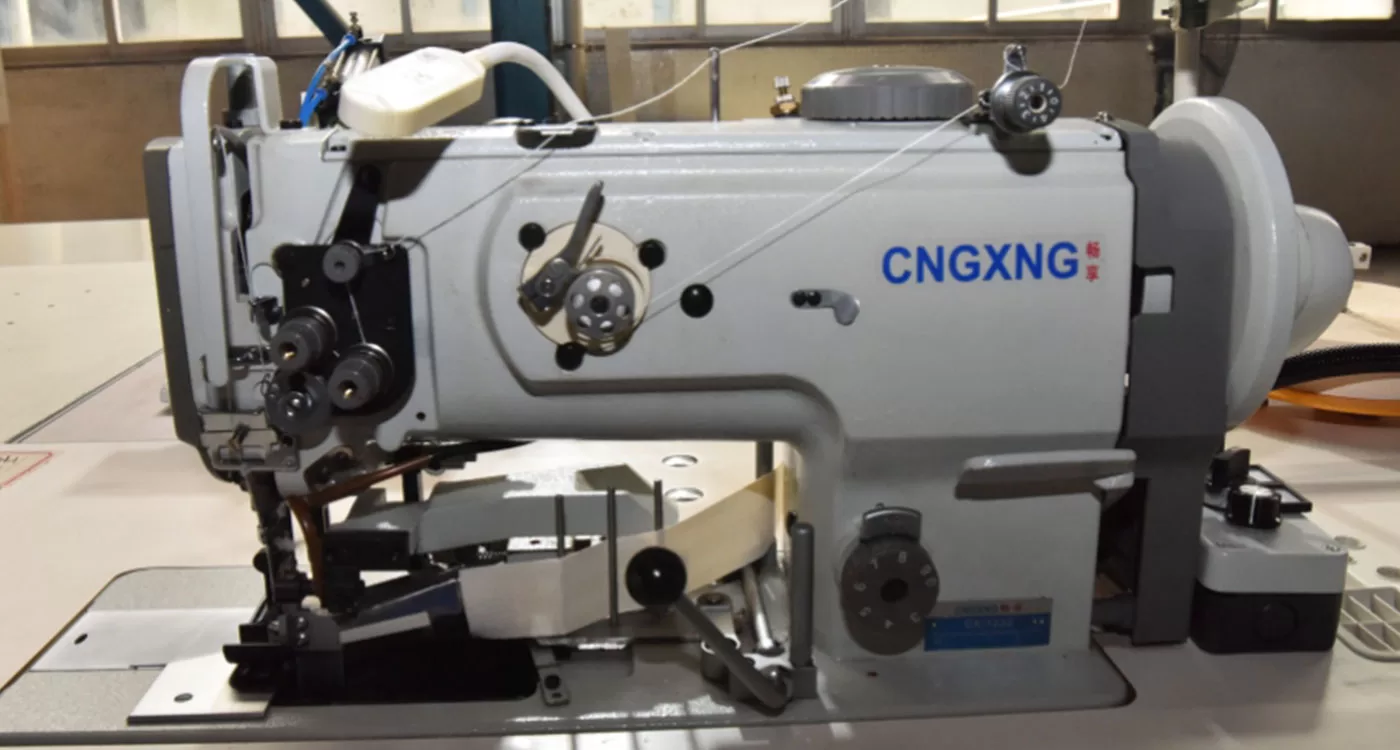

Focusing on the sewing process of mattress covers, it adopts a single – needle lock stitching mode. It can stably output specific stitch lengths and sewing speeds, and is compatible with corresponding needles and oil supply methods. It provides a standardized sewing process for mattress covers, ensuring the quality of processes such as cover splicing and edging. It helps create regular and durable mattress covers and is the core equipment for forming covers in the mattress fabric processing flow.

Technical Parameters
Sewing Traces Single Needle Lock type
Hook Hook With Bobbin Case
Horizontal Two-fold Spindle (Function Description)
Max Sewing Speed 2500RPM
Presser Foot Height Manual 9mm and Pneumatic 16mm
Max Stitch Length 5mm
Power Supply 220V
Needle Bar Ttroke 36mm
Servo Motor 750W
Needle Type DP×17MR (12#-18#)
Air Pressure 0.5Mpa (5kg/cm²)/0.3N/min
Oil Supply Method Automatic Oil Supply
