Fully Automatic Mattress Tape Edge Machine YT-WB-7B
Discover the YT-WB-7B, designed for the modern mattress manufacturer seeking superior performance and convenience. This cutting-edge over-lock mattress machine features PLC control and an interactive touchscreen interface, allowing for precise and streamlined operation. One of its standout attributes is the adjustable head angle and lifting mechanism, which can be easily controlled with digital visualization. Users can save multiple configurations, streamlining the transition between different mattress types. The machine accommodates heights from 50mm to 400mm, ensuring compatibility with a broad range of mattress production standards. Additionally, the YT-WB-7B can be equipped with either a high-performance imported sewing head or a reliable 300U chain-stitch sewing head. An innovative feature allows for one-click automatic calibration of the sewing head, optimizing its position according to mattress height. Upgrade your mattress production line with the YT-WB-7B, where efficiency, versatility, and technology converge to enhance manufacturing excellence. Embrace this machine for a significant boost in productivity and product quality.
1. This equipment features PLC control alongside a fully interactive touchscreen interface.
2. The angle of the head and its lifting mechanism are adjustable and can be easily managed with digital visualization, allowing for the storage of multiple configurations for quick replacements.
3. The over-lock mattress can be set to heights ranging from 50mm to 400mm, making it compatible with various mattress production line specifications.

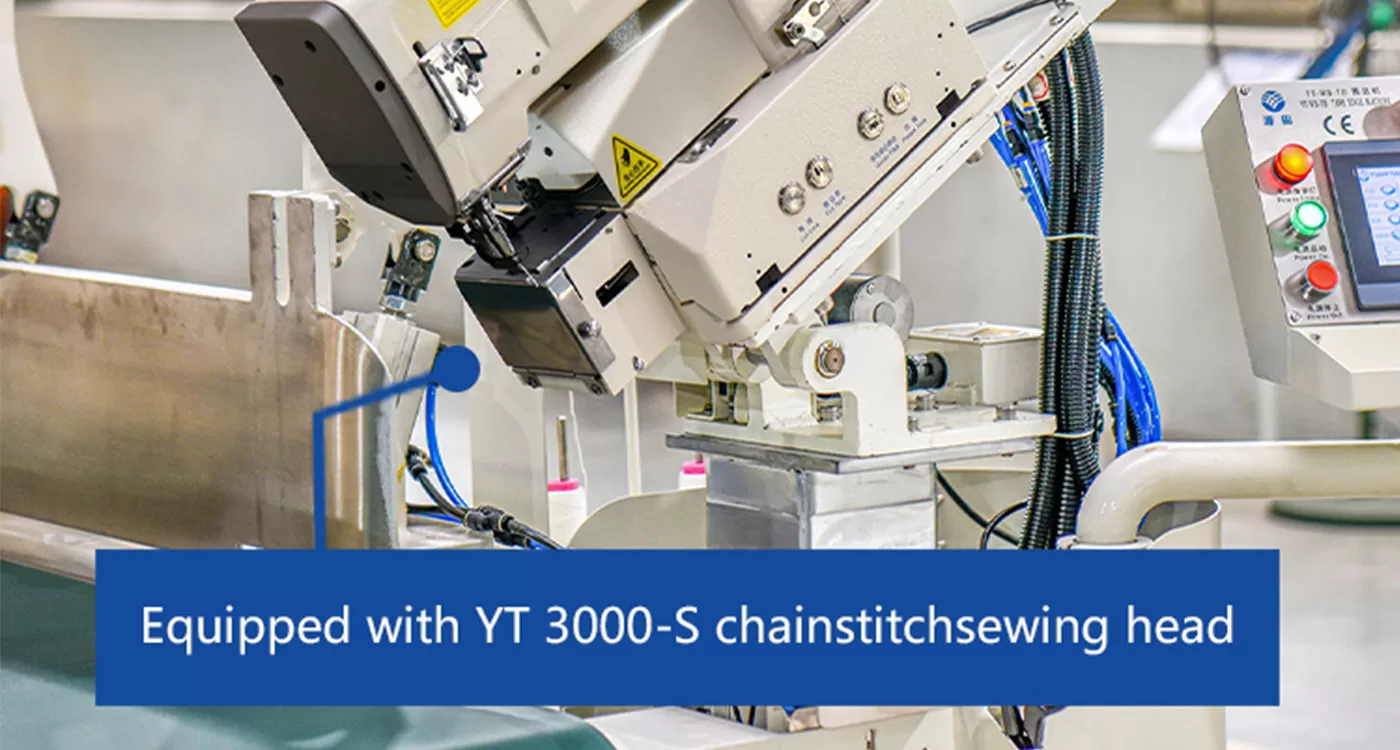

4. The machine can be furnished with either an imported sewing head or a 300U chain-stitch sewing head.
5. With a single click, the sewing head can automatically calibrate itself to the appropriate sewing position based on the height of the mattress.
YT-WB-7B
| Productivity | 12 – 18pcs/h |
| Total Weight | ≈2000kg |
| Thickness | 50 – 400mm |

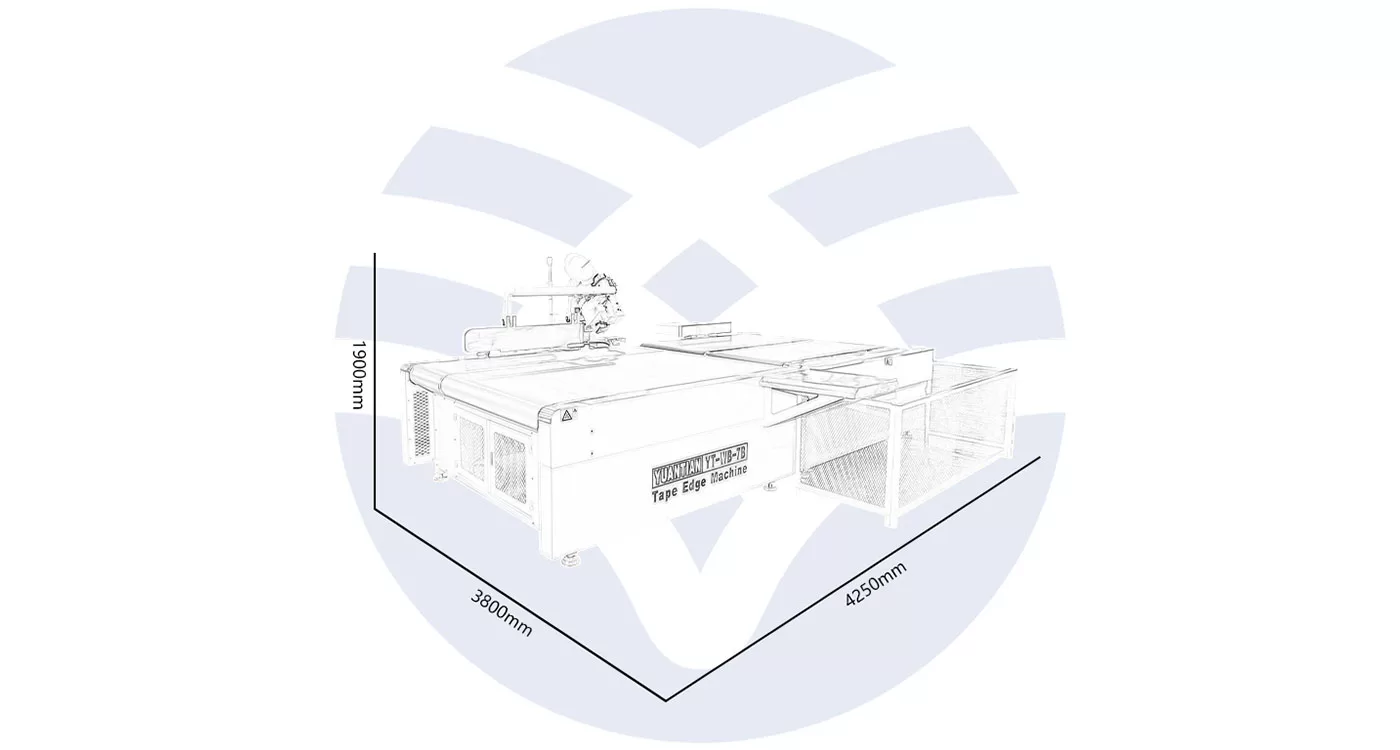

| Overall Dimension | 4250*3800*1900mm |
| Max Rotating Speed | 2500RPM (180U – S); 3000RPM (Y – 190 – S PUFF) |
| Table Size | 4180*2210*900mm |
| Total Power | ≈6.3kw |
| Standard Mattress Weight | ≤75kg |
| Power Supply | 3PH – 380v – 50Hz (Can be customized) |
| Customized for Over – Weight Mattress | ≤500kg |
| Air Pressure | 0.6 – 0.8MPa |
