Fully Automatic Tape Edge Machine YT-WB-7
1. The equipment adopts PLC control and full – touch – screen operation.

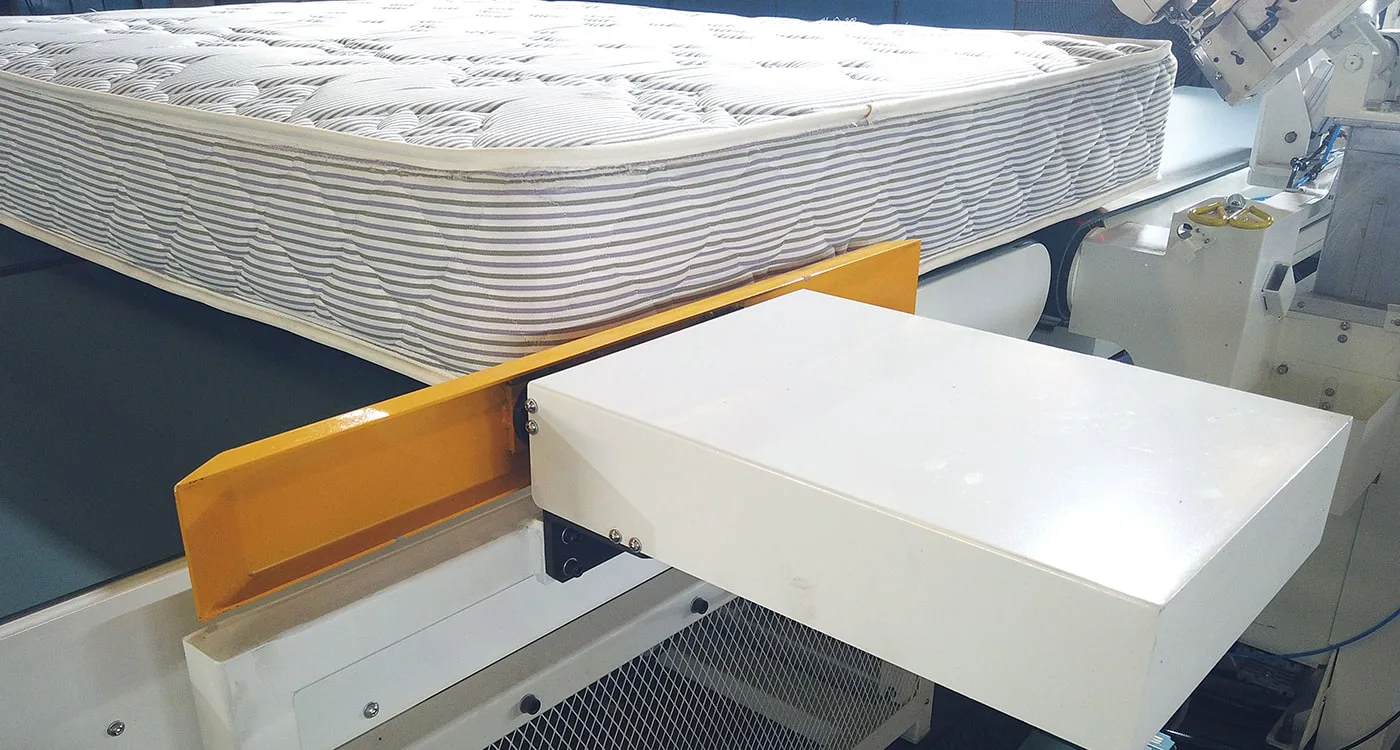

2. Automatic turning function of the mattress, automatic deceleration, automatic lifting and automatic reset of the sewing machine head when turning the corner, effective improvement of sewing quality and other technologies, and simplified operation.
3. The over – lock mattress has a height of 50 – 400mm, which is suitable for a variety of specifications of mattress production line.
4. Reasonable super width platform design make operation more comfortable.
5. Enclosing machine head has hoisting function, suitable to more bigger range mattress sewing.
6. Improvement of automatic degree make works more easy.
In terms of price, we have a special quotation sheet for each machine. At the same time, we can also provide professional mattress machinery solutions and quotations according to your manufacturing needs.
If you need more information about mattress tape edge machine, please leave us a message, or contact our sales representative.
Parameters of YT-WB-7
| Productivity | 12 – 18pcs/h |
| Total Weight | ≈1550kg |
| Thickness | 50 – 400mm |

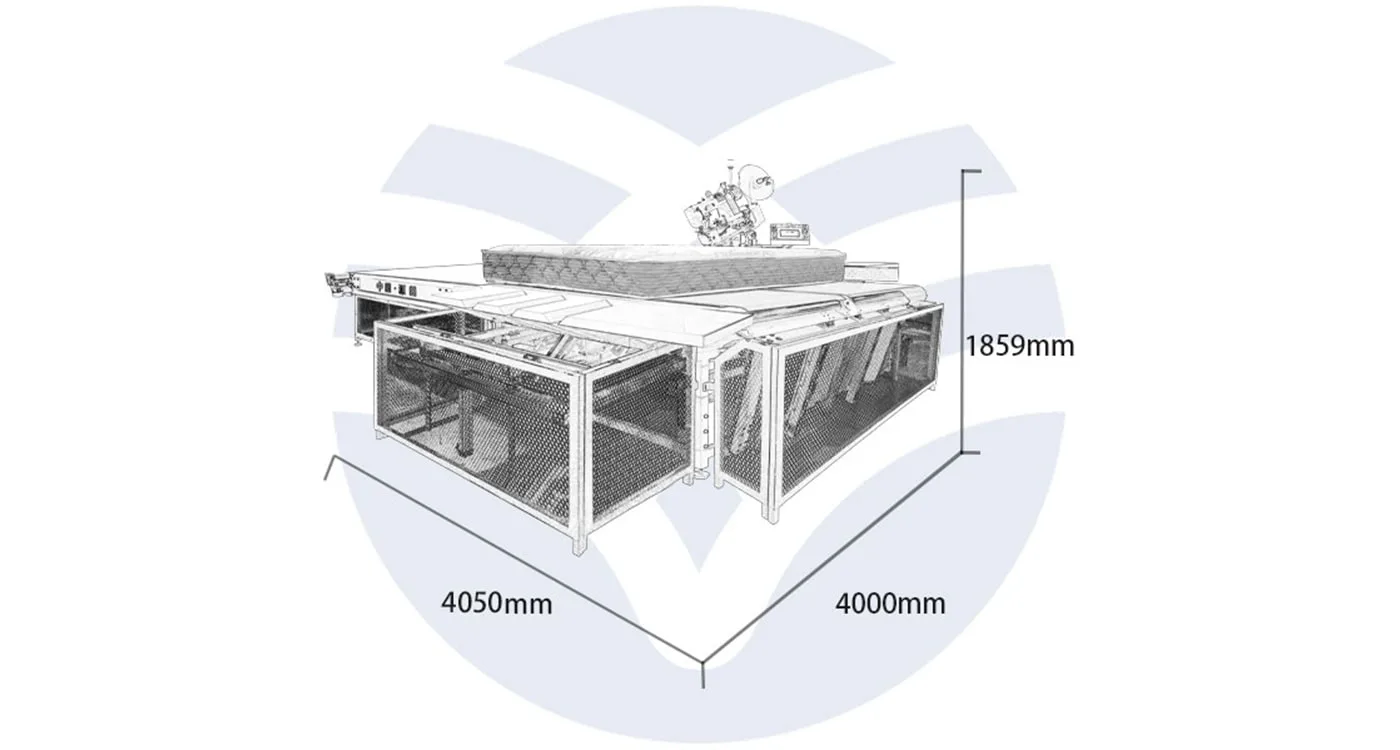

| Overall Dimension | 405040001950mm |
| Max Rotating Speed | 2000RPM (100U); 3000RPM (PUFF) |
| Table Size | 3950*2000*900mm |
| Total Power | ≈4.2kw |
| Standard Mattress Weight | ≤75kg |
| Power Supply | 3PH – 380v – 50Hz (Can be customized) |
| Customized for Over – Weight Mattress | ≤500kg |
| Air Pressure | 0.6 – 0.8MPa |
