Double Layer Automatic Tape Edge Machine YT-WB-6

Double Layer Automatic Tape Edge Machine
Double Layer Automatic Tape Edge Machine
Double Layer Automatic Tape Edge Machine
Mattress Thickness
Double Layer Automatic Tape Edge Machine
Productivity

Our machine adopts PLC program control and full touch screen operation. At the same time, it uses the upper and lower overlapping design, greatly saving the space occupied by the machine.

Optional imported sewing heads or high-speed chain stitch sewing heads. Sewing mattress thickness up to 60-450 mm, suitable for a variety of mattress production lines.

During the operation of the machine, the application of automatic sewing head control, automatic mattress height adjustment, automatic push mattress and other technologies can simplify the operation process. Its production efficiency can be up to 45-60 units per hour.

In terms of price, we have a special quotation sheet for each machine. At the same time, we can also provide professional mattress machinery solutions and quotations according to your manufacturing needs. If you need more information about double layer automatic tape edge machine, please leave us a message, or contact our sales representative.

Parameters of YT-WB-6

Total Power

18KW

Power Supply

3-Phase 380V, 50Hz/60Hz

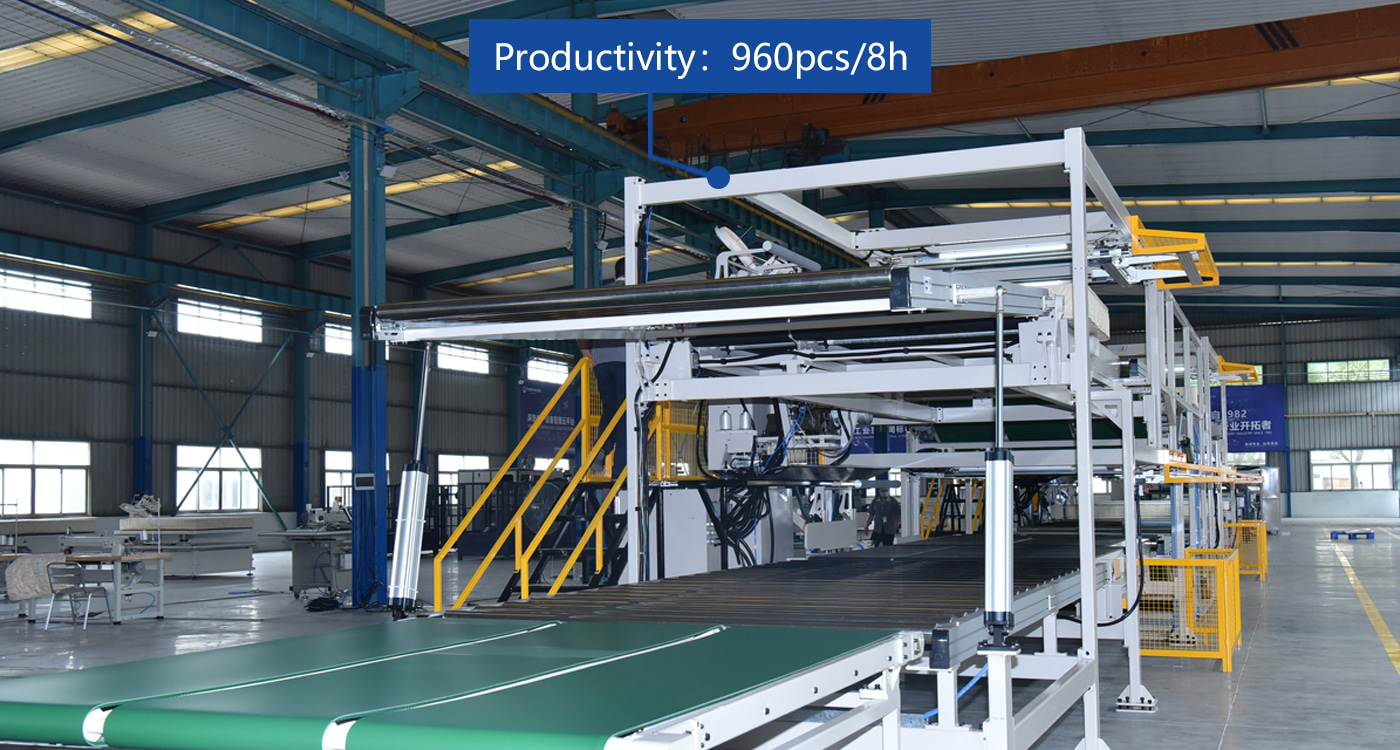

Productivity

960pcs/8h

Total Weight

10,000KG

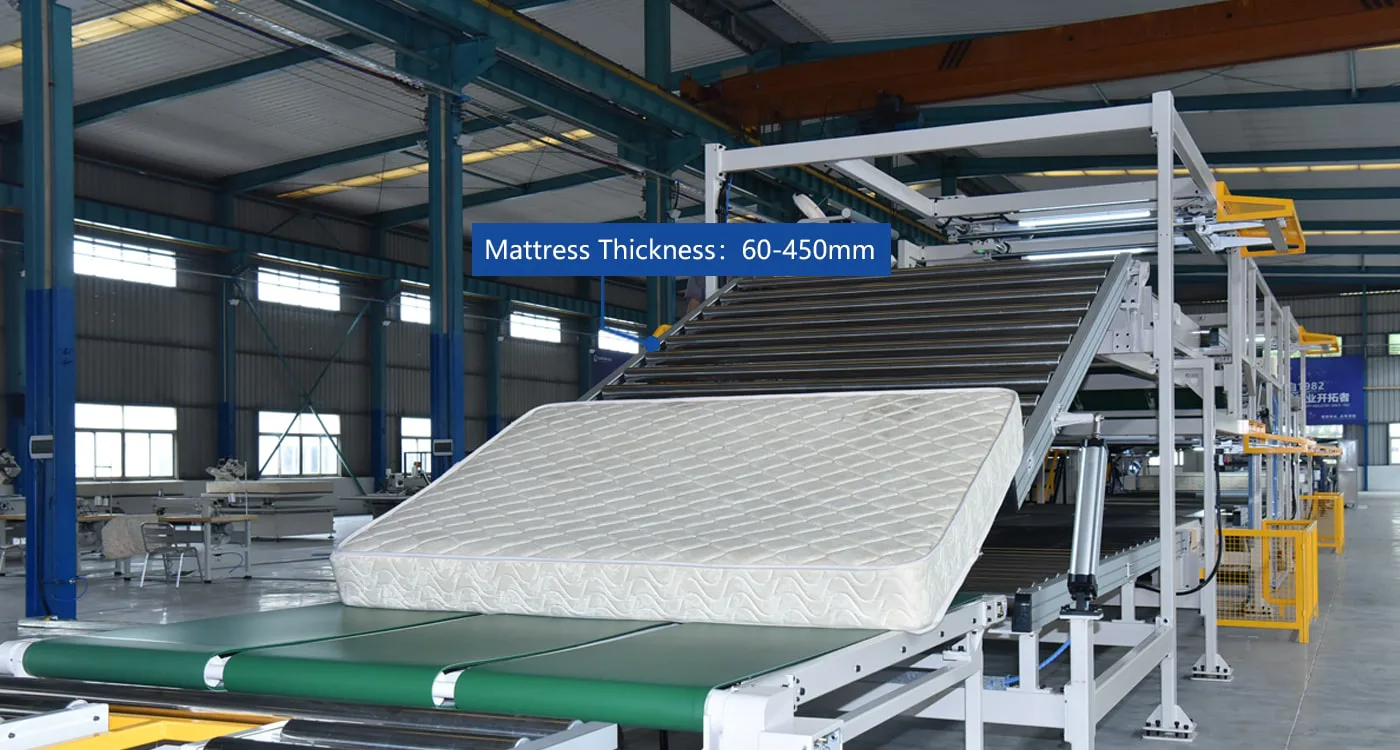

Mattress Thickness

60-450mm

Air Supply

0.6-0.8Mpa

Overall Dimension

22000×4000×3500mm

Mattress Size

2200×2000-1200×900mm

Mattress Weight

≤85KG

Max. Rotating Speed

2200RPM (300U)/2600

YT-WB-6 Double Layer Automatic Tape Edge Machine Sample

YT-WB-6 Double Layer Automatic Tape Edge Machine Sample

YT-WB-6 Double Layer Automatic Tape Edge Machine Sample
