Automatic Tape Edge Machine for Mattress Assembly YT-WB-4B

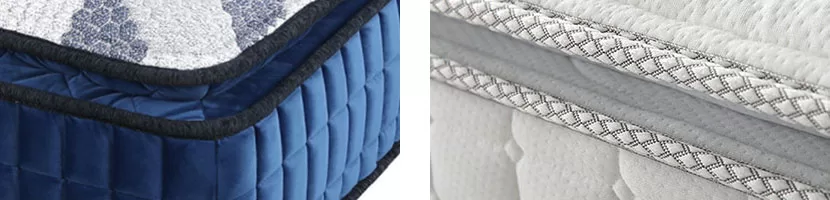

The YT-WB-4B automatic tape edge machine is specifically engineered for stitching the edge seams between the top and bottom layers of an innerspring mattress, as well as the side tape. This versatile machine is not only ideal for innerspring mattresses but also excels in the production of other soft bedding products, including sleeping bags and tents. A standout feature of this machine is its user-friendly design, allowing a single operator to manage the entire process, thus simplifying the workflow and increasing efficiency. There is no requirement for the operator to navigate around the mattress, nor is there a need to manually flip it during assembly. The YT-WB-4B is equipped with an automatic flipping mechanism that streamlines the sewing process, significantly boosting productivity and ensuring safety. Renowned for its robust performance and dependability, the YT-WB-4B tape edge machine is an excellent option for mattress manufacturing.
1. Automatic turning at corner.
2. Adapt to different height of mattresses.
3. Applicable to mattress thickness 50 – 450mm.
4. Automatic flip the mattress.
| Productivity | 12 – 18pcs/h |
| Total Weight | ≈1300kg |
| Thickness | 50 – 450mm |
| Overall Dimension | 4050*3000*1950mm |
| Max Rotating Speed | 2000RPM (100U); 3000RPM (PUFF) |

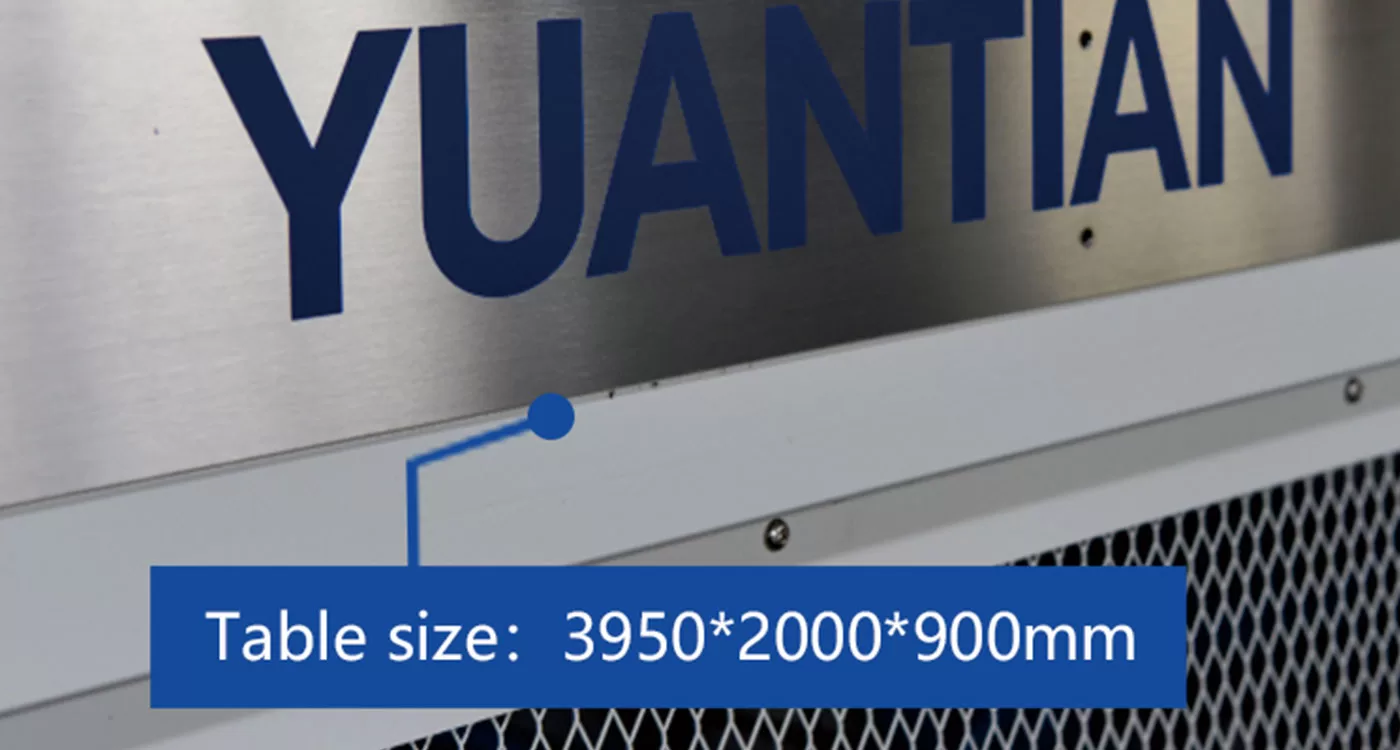

| Table Size | 3950*2000*900mm |
| Total Power | 4.2kw |
| Standard Mattress Weight | ≤75kg |
| Power Supply | 3PH – 380v – 50Hz (Can be customized) |
| Customized for Over – Weight Mattress | ≤500kg |
| Air Pressure | 0.6 – 0.8MPa |
