Single Needle Quilting Machine YT-DZHF-2

Single Needle Quilting Machine

The YT-DZHF-2 Single Needle Quilting Machine is designed for high-end customized quilting needs of mattresses. The machine head adopts imported German configuration, matched with a large rotary hook bobbin system to ensure long-term stable operation. The front-mounted installation design facilitates operation and thread replacement, integrating fully automated functions such as automatic material feeding, cutting, counting and thread trimming, with automatic stop for broken threads to ensure production safety. Equipped with an automatic lubrication system, it operates with low noise, wear resistance and excellent empty-car efficiency. It supports AutoCAD custom pattern modification, and is equipped with an automatic compensation function for material faults, accurately adapting to the personalized quilting needs of various mattress fabrics, making it the preferred equipment for high-end mattress technology upgrading.

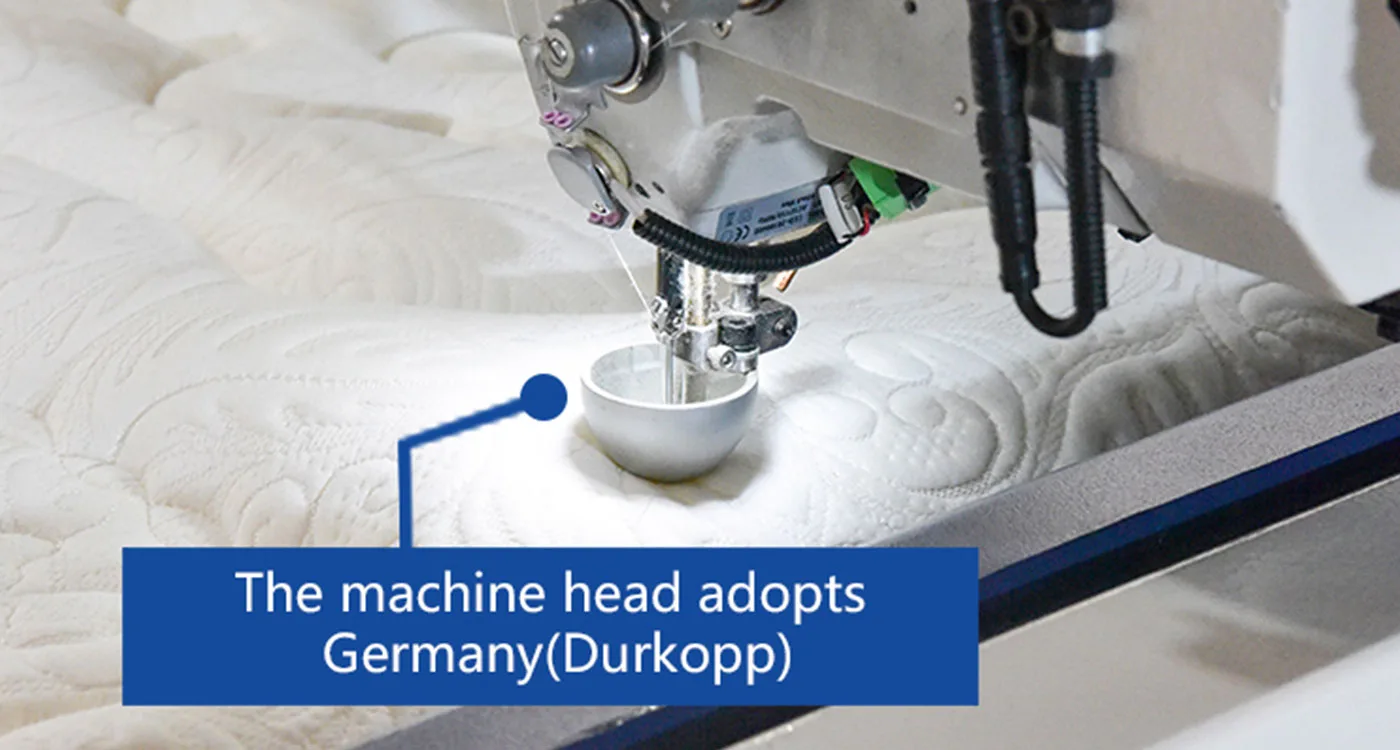

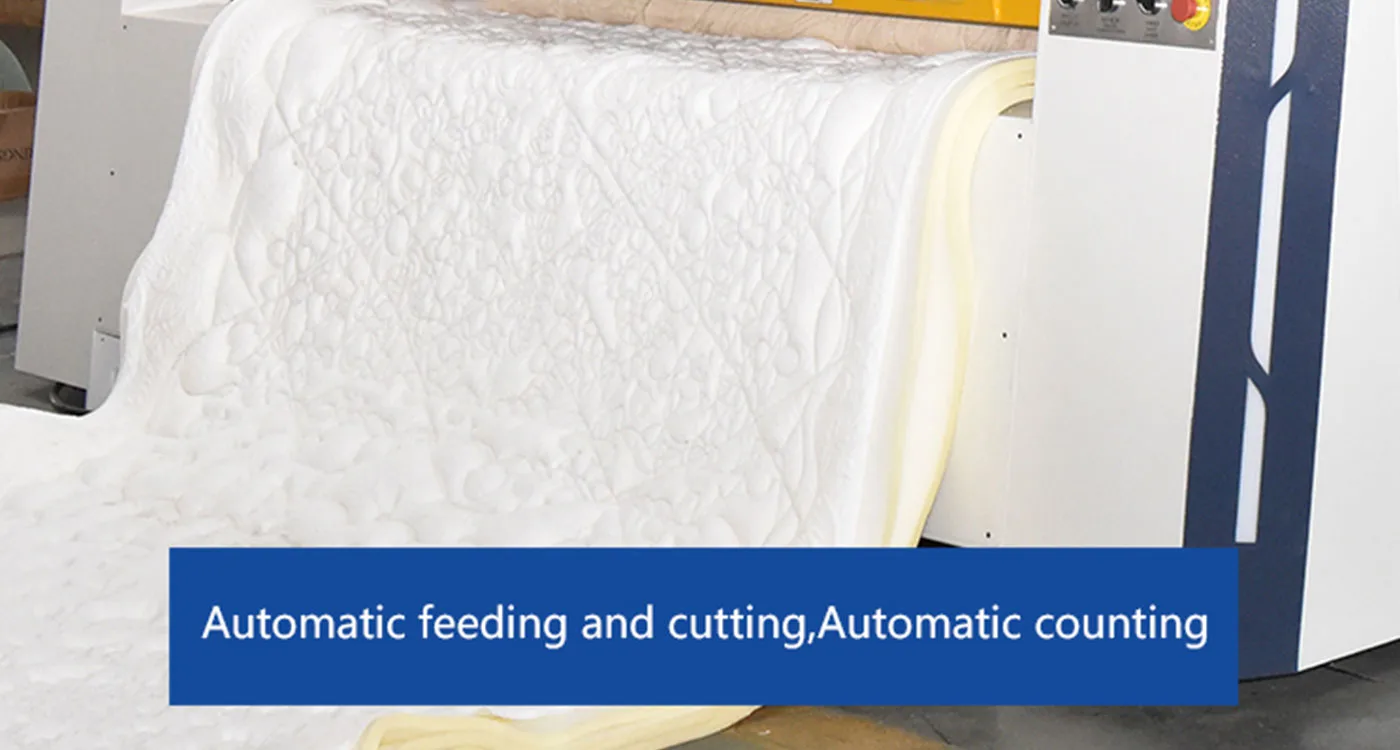

Product Information	1. The machine head adopts Germany (Durkopp) nose and the bottom thread is large rotary hook; 2. Front installation, convenient for operation, thread replacement, threading, etc; 3. Automatic feeding, automatic cutting/edge cutting, automatic counting; 4. Automatic thread cutting, automatic pull over and stop in case of broken thread; 5. Set automatic oiling, low noise, wear-resistant, empty car fast; 6. AutoCAD add pattern to drawing, can be modified; 7. Automatic compensation function for faulty patterns during material replacement.
Technical Parameters
Productivity	80-240m/h (3.12-9.36inch/h)
Needel Mode	DPX17 21#/22#/23#
Rotation Speed	1500-2500 (RPM/min)
Total Power	8kw
Sewing Thickness	≤80
Power Supply	380v/50HZ (Can be customized 220v/60Hz)
Sewing Width	2400mm (93.6inch)
Total Weight	3500kg
Stitch Length	2-6mm (0.078-0.234inch)

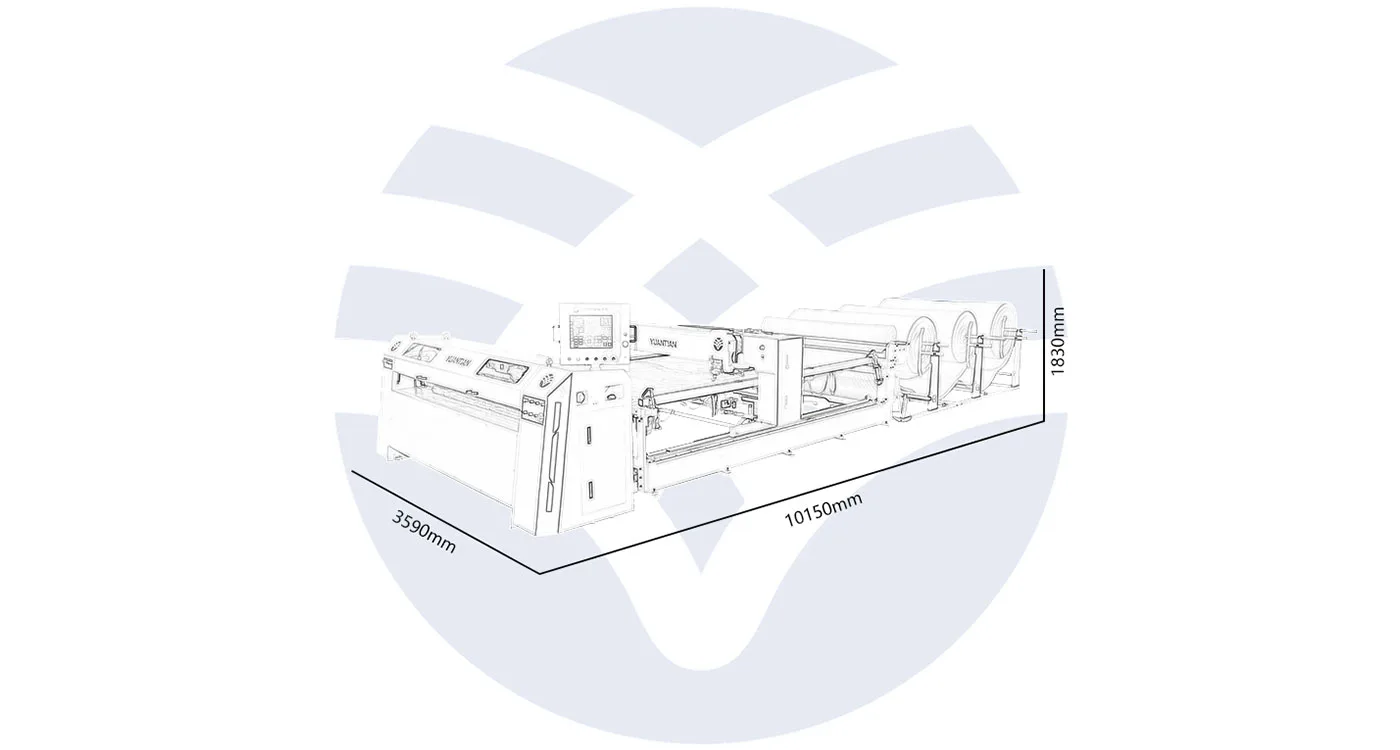

Overall Dimension	395.85154.0571.37inch

Single Needle Quilting Machine YT-DZHF-2
