Multi-Needle Quilting Machine YT-HF-9

Multi-Needle Quilting Machine

As the core equipment for mattress fabric quilting, the YT-HF-9 Multi-Needle Quilting Machine adopts an integrated anti-vibration structure and three-axis servo drive, which greatly improves the efficiency of independent pattern processing and enables multi-dimensional step quilting pattern production. Equipped with a one-click intelligent management system, it supports full-automatic monitoring and power-off memory, featuring low operating noise, high sewing precision and easy operation. It supports AutoCAD custom pattern modification, and is equipped with an automatic compensation function for material replacement faults, adapting to the efficient quilting processing of various mattress fabrics, providing a solid guarantee for the standardized and refined production of mattress appearance technology.

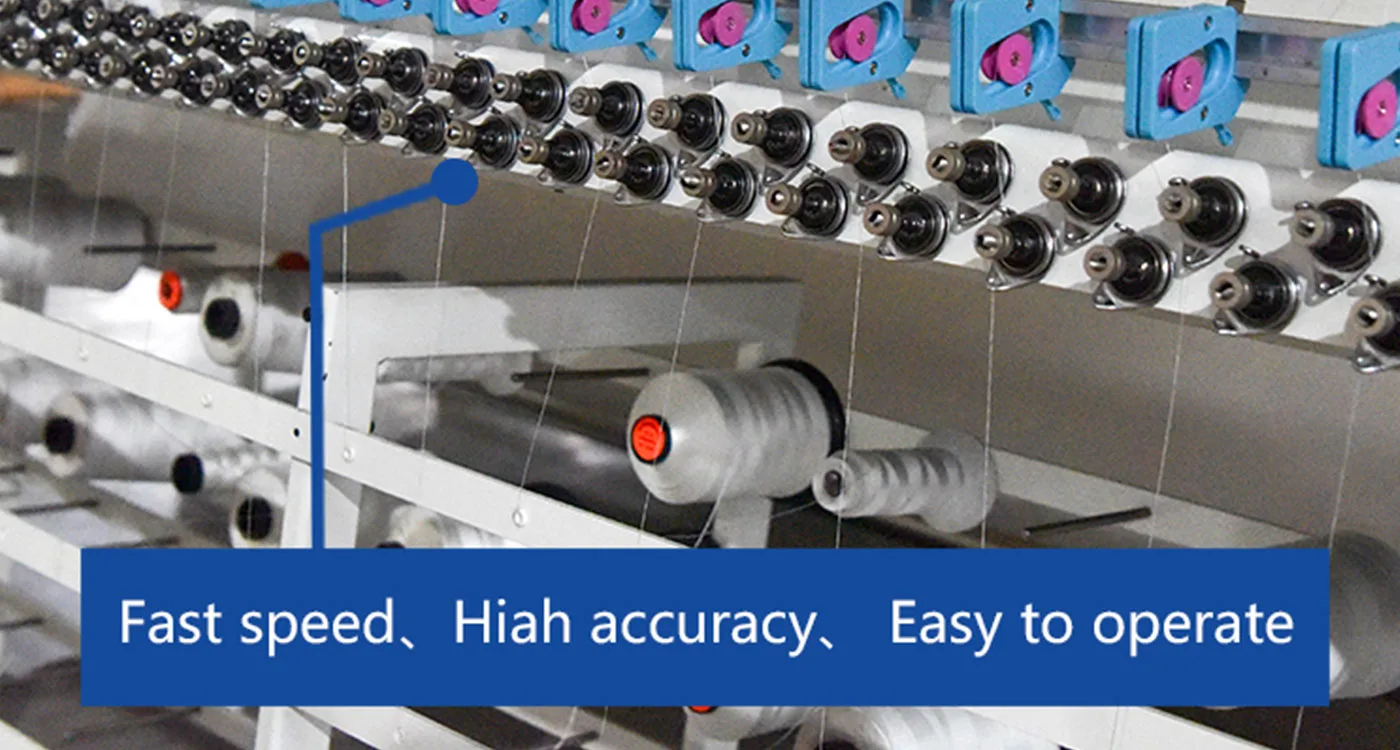

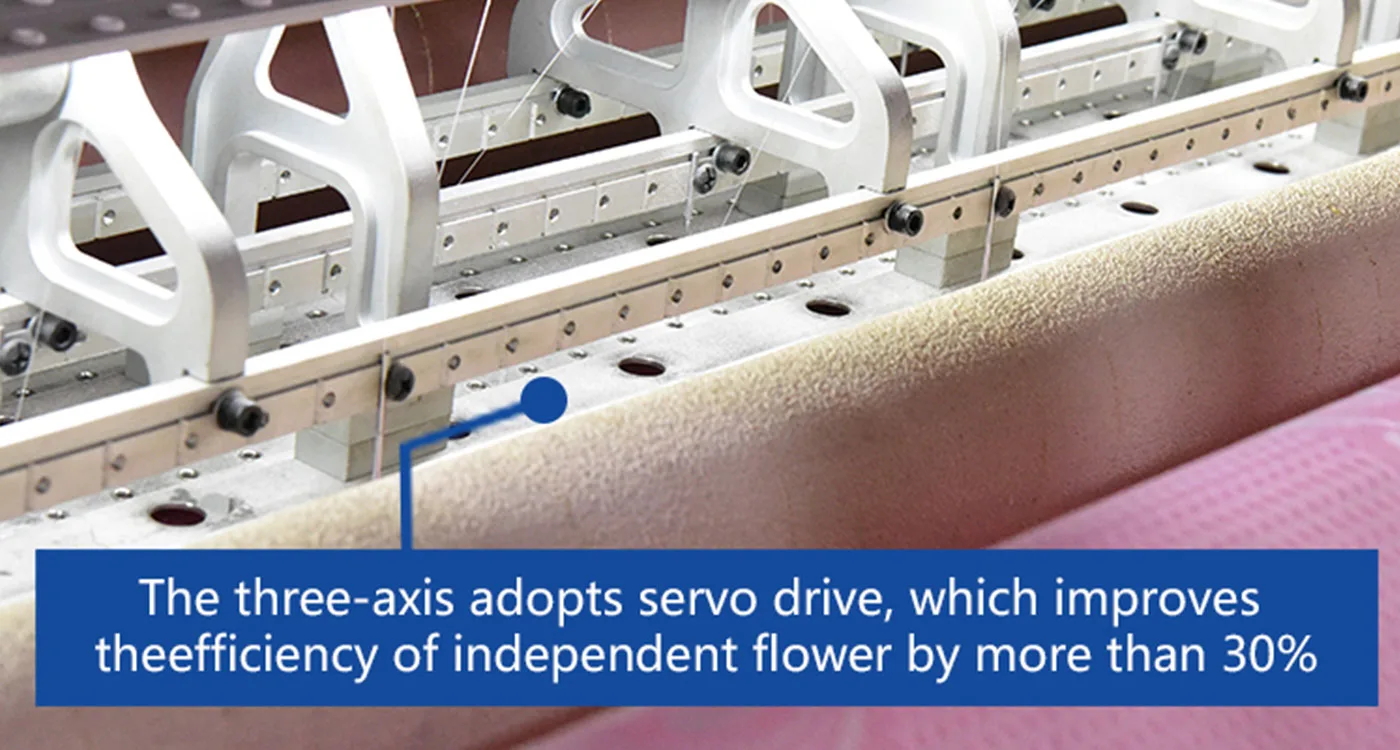

Product Information	1. The machine is an integrated structure with an anti-vibration device on the body; 2. The three-axis adopts servo drive, which improves the efficiency of independent flower by more than 30%; 3. Multi-step independent pattern (covering 360° and 180° quilting patterns); 4. One-click management, full-automatic monitoring, power-off memory; 5. Low noise, high speed, precise stitching and easy to operate; 6. AutoCAD drawing can add patterns and flower types for users to modify; 7. Automatic compensation function for faulty patterns during material replacement.
Technical Parameters
Productivity	80-300m/h
Needel Mode	120/21, 140/22, 160/23, 180/24
Rotation Speed	600-1300 (RPM/min)
Total Power	8.5kw
Sewing Thickness	≤80 (All patterns)
Power Supply	380v/50HZ (Can be customized 220v/60Hz)
Sewing Width	2450mm
Total Weight	5500kg
Stitch Length	3-8mm (0.117-0.312inch)

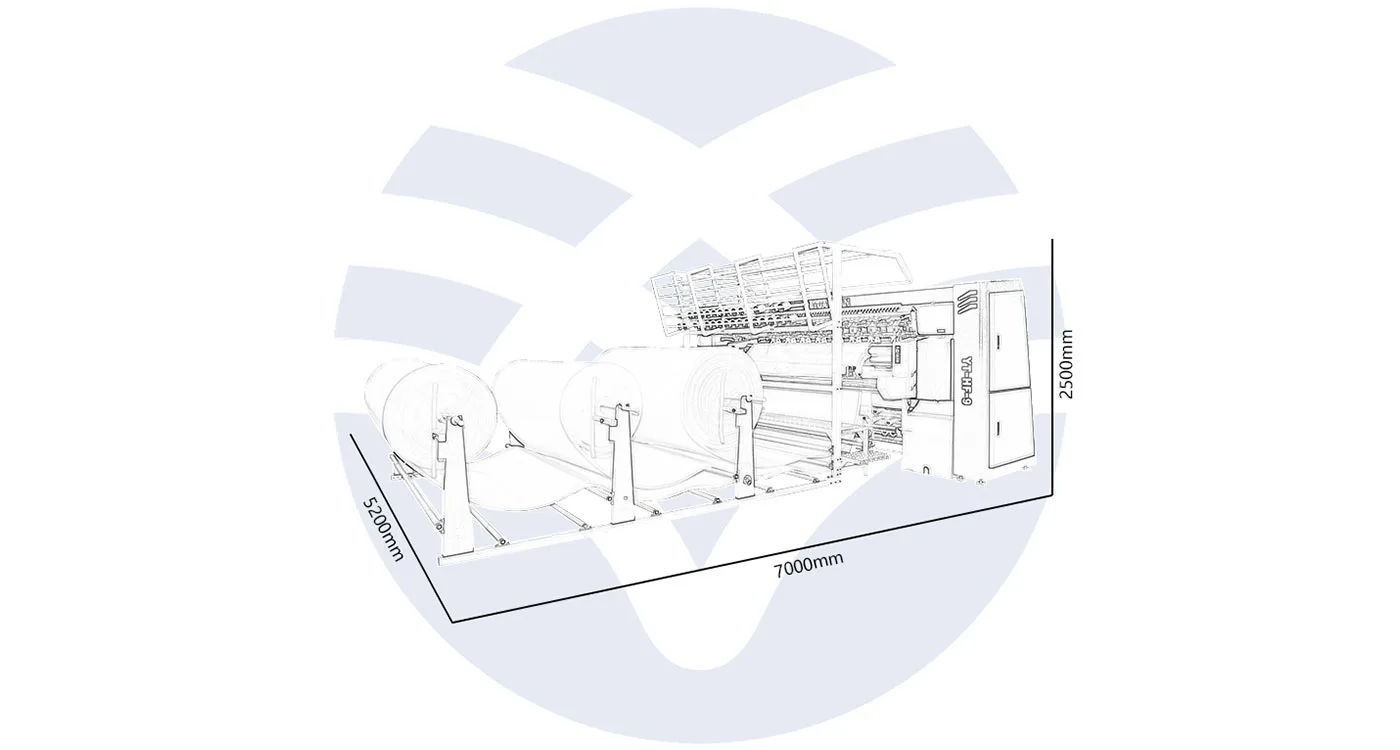

Overall Dimension	273202.897.5inch

Multi-Needle Quilting Machine YT-HF-9
