Semi-Automatic Mattress Compressing and Rolling Packing Machine YT-BZ-6B
The YT-BZ-6B mattress roll compression packaging machine is a new type of intelligent equipment developed by our company, focusing on solving the challenges of mattress transportation and packaging. It utilizes an innovative roll compression packaging process that can tightly wrap mattresses, effectively avoiding issues such as fabric contamination and scratches during transportation, while significantly reducing packaging volume and lowering logistics costs.
The equipment integrates advanced power and intelligent control systems. The power end is driven by a motor and cylinder working in coordination, ensuring stable operation of processes such as rolling and sealing. The control end includes an encoder, PLC, and touchscreen. The encoder provides precise feedback on progress, the PLC intelligently adjusts parameters, and the touchscreen enables visual operation, allowing for one-click initiation of the fully automatic packaging process, reducing manual intervention and improving packaging efficiency and quality.
In terms of mechanical structure, high-strength materials are used to create a sturdy body, ensuring long-term stable operation through rigorous testing. The operating interface is designed ergonomically, making it simple and easy to understand, allowing operators to quickly get started. This equipment can seamlessly connect to mattress production lines, providing enterprises with efficient, intelligent, modern packaging solutions.

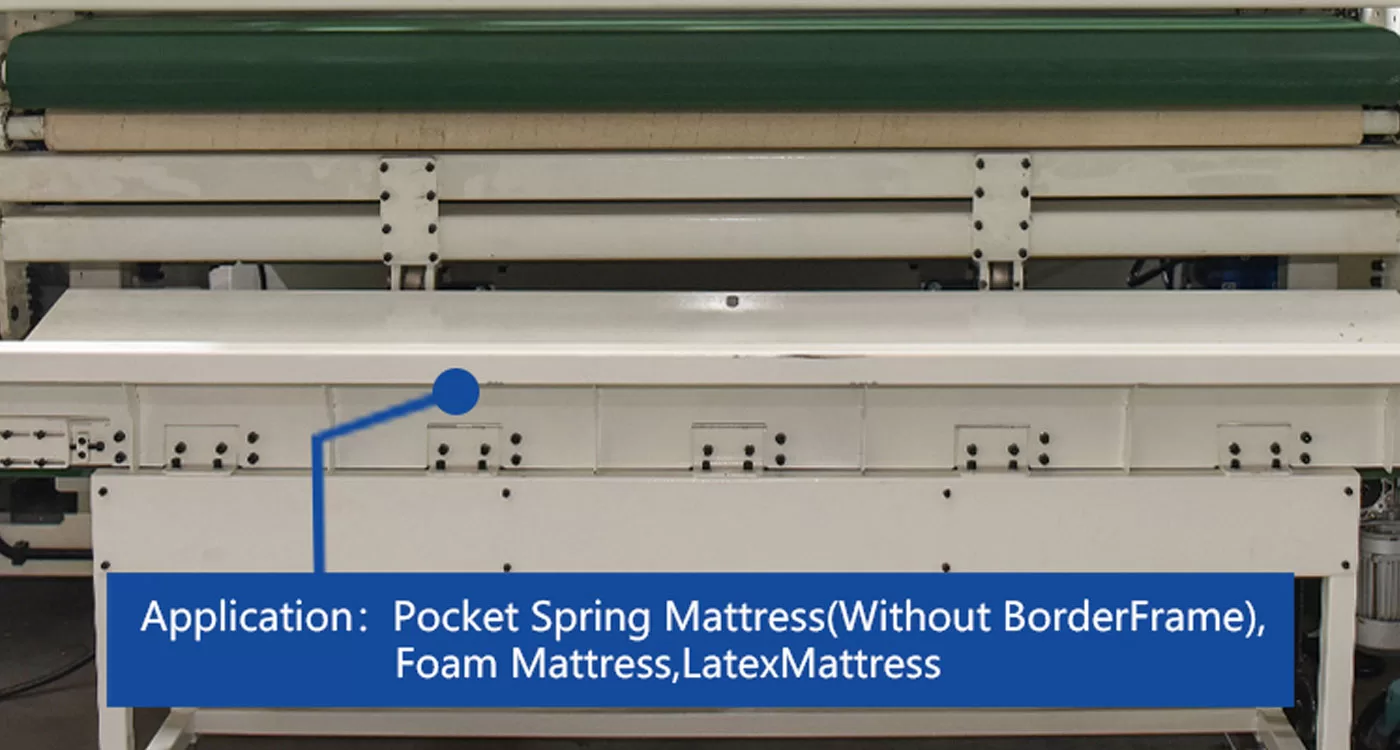

1. Suitable for packaging frameless pocket spring mattresses, sponge mattresses, latex mattresses, etc.
2. Can compress, roll, film, fold, cut, input and output integrated automatic packaging equipment for mattresses.
3. The packaged finished mattress is small in size, easy to store and transport, especially convenient for retail customers to pick up goods.
4. Modular design, can customize the configuration of the machine.
Parameters of YT-BZ-6B
| Total Power | 33kw | Packing Film Thickness | 0.06-0.13mm |
| Productivity | 25 – 35spcs | Applicable Mattress Size | 2200*2000*420mm |
| Power Supply | 3PH-380v-50hz | Packing Material | PE/PVC |
| Packing Method | Manual bagging | Product Diameter | 200 – 550mm |
| Total Weight | ≈10ton | Applicable Mattress Type | Pocket spring mattress, sponge mattress, latex mattress, memory foam mattress, ordinary spring mattress, Bonnell spring mattress |

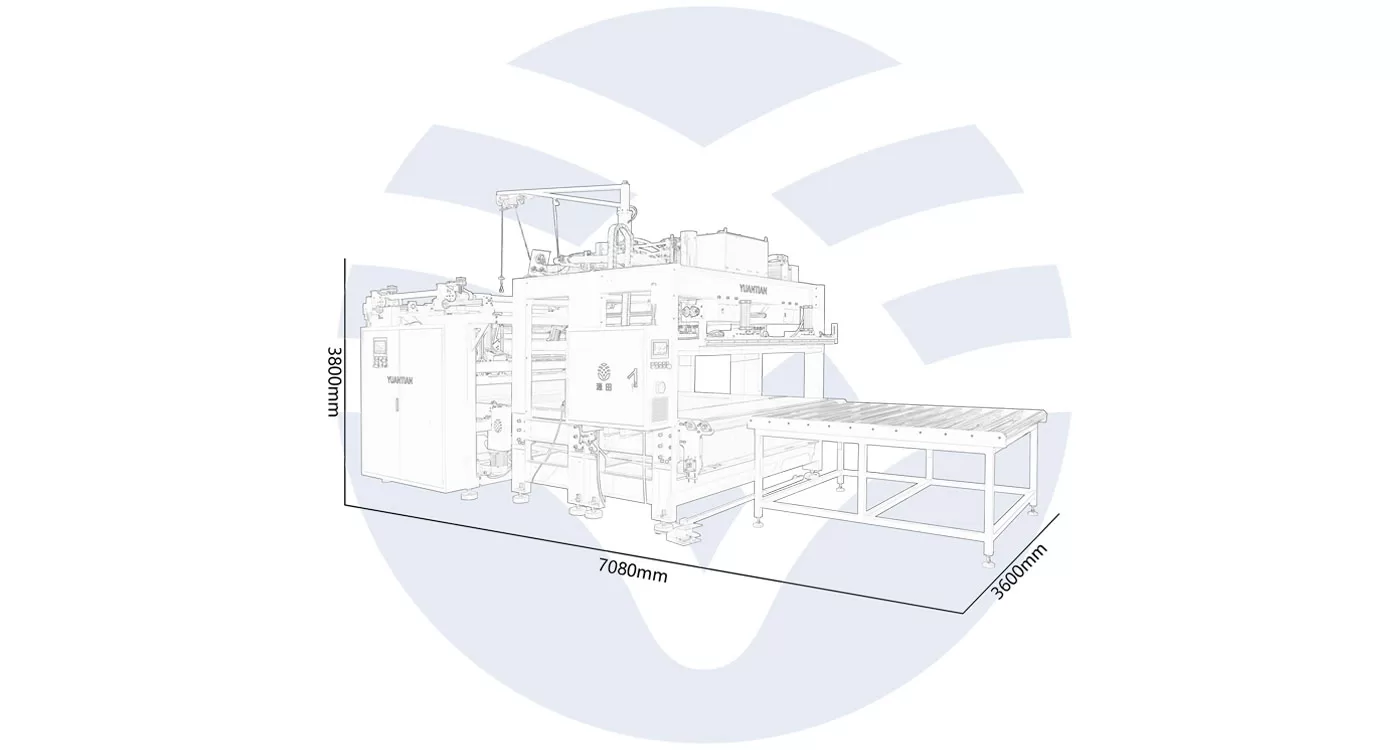

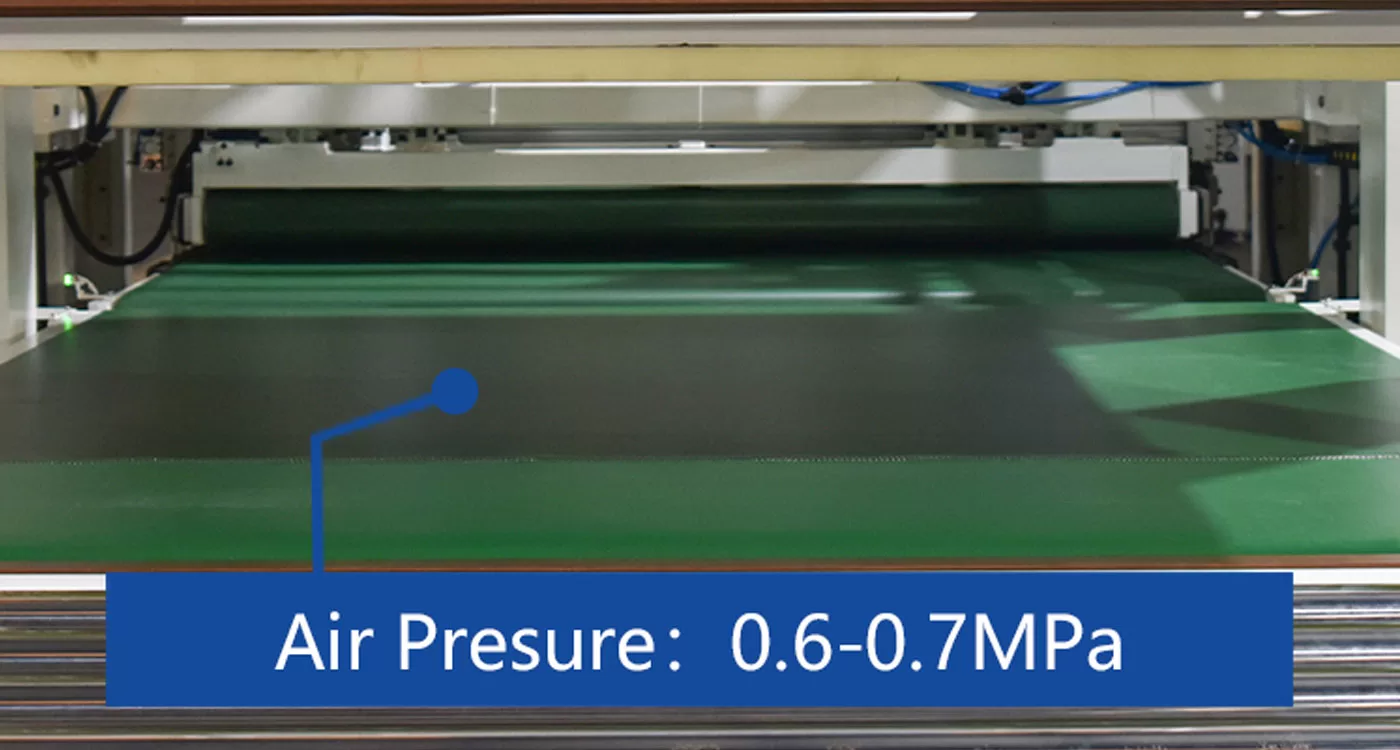

| Air Pressure | 0.6 – 0.8MPa | Overall Dimension | 7800*3600*3800mm |
