Automatic Mattress Packaging Machine YT-BZ-3A
YT-BZ-3A mattress packing machine is a new type of automatic mattress packing machine developed by our company. This machine is mainly used for PE/PVC film laminating packing of finished mattresses to protect the mattress from damage and scratches during transportation.
This machine mainly works by motor and cylinder. The control system adopts PLC, touch screen and other automation equipment, which improves the intelligence and automation of the machine. Firm mechanical structure, stable performance, easy operation and high production efficiency.
The film laminating packing has high fitting and beautiful appearance, which can be automatically adjusted according to different sizes of the mattresses, maximize the utilization rate of the packing materials, reduce the production labor, and thereby reduce the production cost of the mattress packing.
1. This equipment can be used independently or with an automatic conveyor or production line to improve production efficiency.
2. Concise body lines, compact process design, intelligent PLC data control, fully automatic induction of mattresses.
3. 3D three – dimensional size can adjust the packaging range, maximizing the reduction of manual operation.
4. The maximum packaging mattress size is 22002000420mm, and the production capacity can reach 1.5 – 2 pieces per minute.
In terms of price, we have a special quotation sheet for each machine. At the same time, we can also provide professional mattress machinery solutions and quotations according to your manufacturing needs.
If you need more information about automatic packaging machine, please leave us a message, or contact our sales representative.
Parameters of YT-BZ-3A

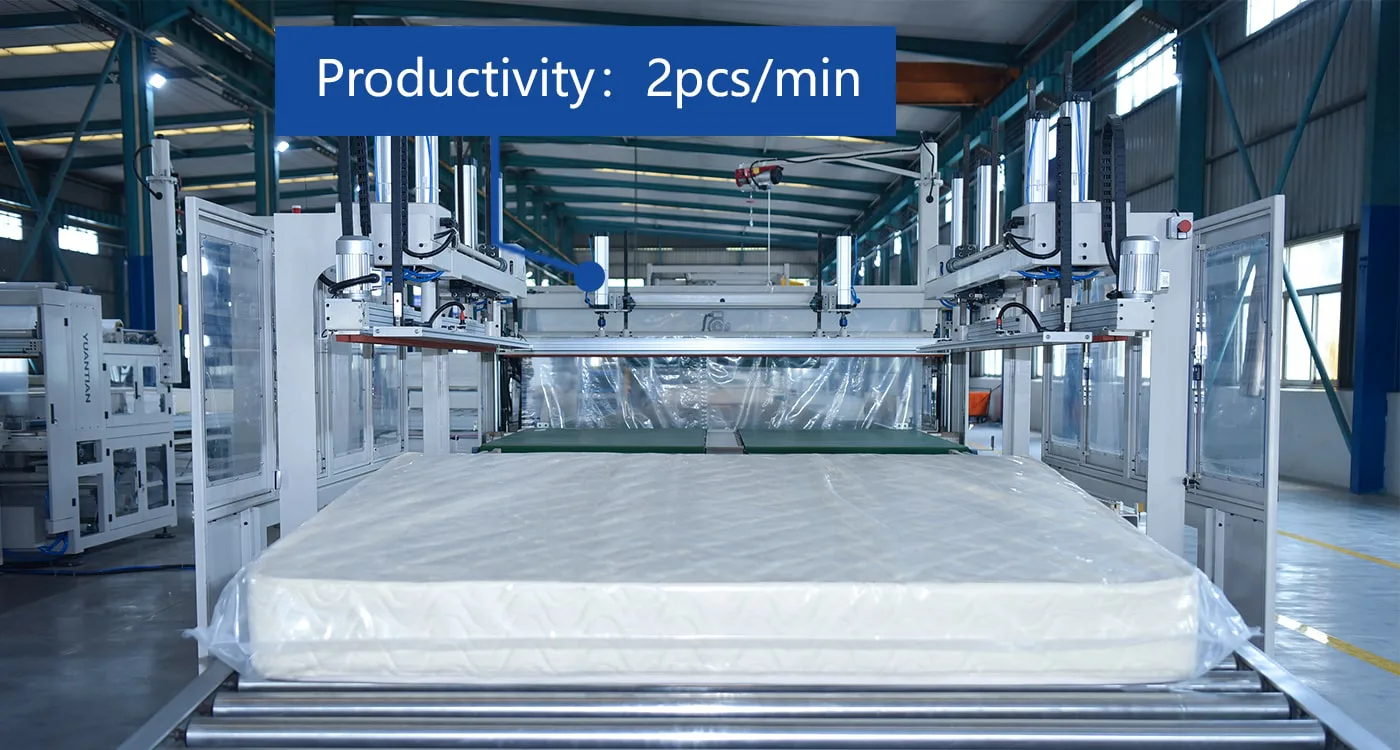

| Productivity | 2pcs/min | Applicable Mattress Size | 1800*800*100mm–2200*2000*420mm |

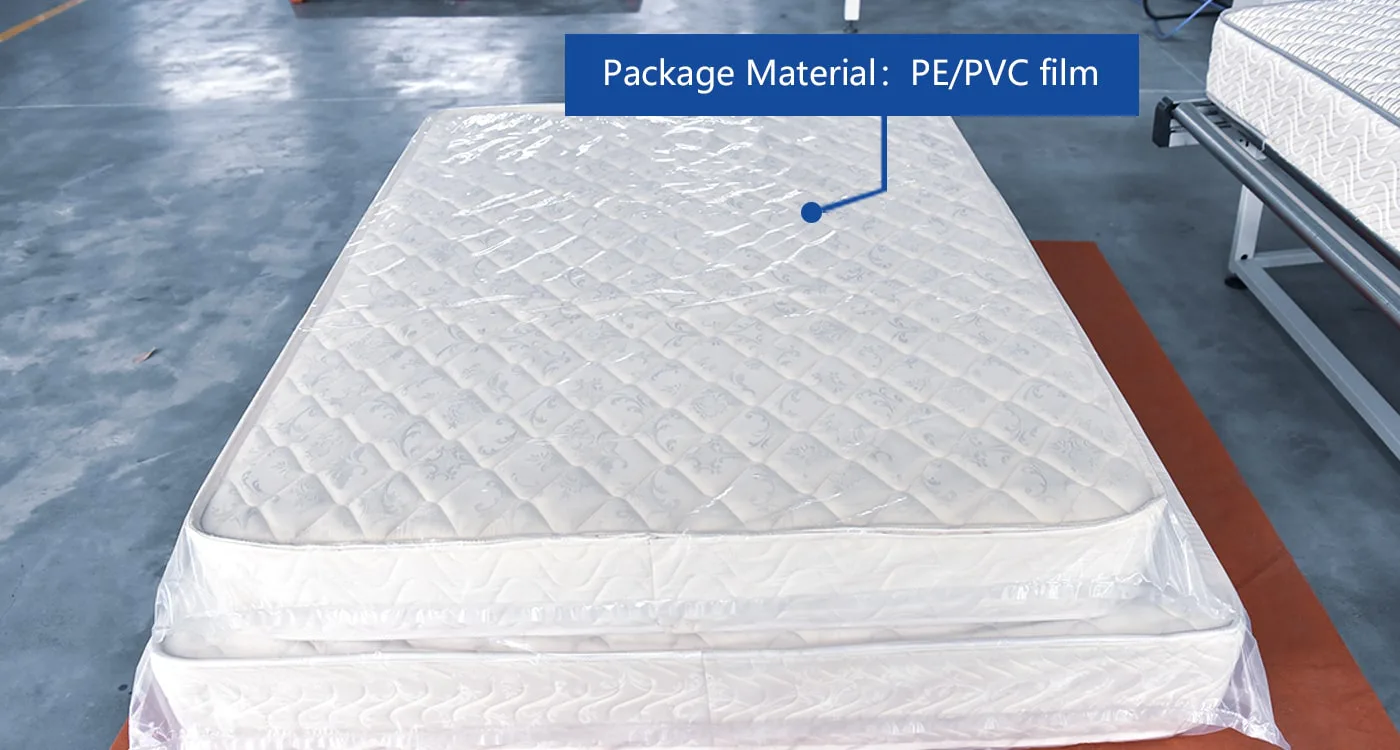

| Power Supply | 3PH-380v-50hz | Packing Material | PE/PVC |
| Max. Packing Film Width | 2700mm | Applicable Mattress Type | Sponge mattress, pocket spring mattress, ordinary spring mattress, memory foam mattress, Bonnell spring mattress |
| Total Weight | 6500KG | Overall Dimension | 7000*3290*3150mm |
| Air Pressure | 0.6 – 0.8MPa | ||
| Total Power | 16kw | Packing Film Thickness | 0.06 – 0.13mm |
