Automatic Fabric Cutting and Flanging Machine YT-CS-1

Automatic Fabric Cutting and Flanging Machine
Automatic Fabric Cutting and Flanging Machine
Automatic Fabric Cutting and Flanging Machine
Automatic Fabric Cutting and Flanging Machine Size
Automatic Fabric Cutting and Flanging Machine
Maxiumum Sewing Speed
Automatic Fabric Cutting and Flanging Machine
Stitches Speed
Automatic Fabric Cutting and Flanging Machine
Max Width

The industrial automatic fabric cutting machine for quilting adopted by PLC program, operating with a touch screen. It's an advanced electric cutter that integrates panel cutting and flanging function.

This flang machine has three high-speed imported chain stitch sewing heads, flanging the full edges in the same process of cutting fabric. Saving the working process and factory space.

At the same time, the equipment can be used together with a quilting machine or alone. This can greatly improve production efficiency, save labor for enterprises, reduce production costs.

Features

  • Max thickness: 70mm
  • Automatic needle positioning at upper position.
  • Automatic waste cleaning device.
  • Lateral sewing: 2 lateral heads in chain stitch, 2 pcs 260mm cutting discs, 2 cutting discs' elevation system.
  • Transversal sewing: 1 transversal head in chainstitch, automatic thread cutting system, 1 pc 130mm cutting disc.
  • Speed, stitch length and cutting measurement control by touch screen.
  • Sewing heads with 4 threads & 6 needle positions space: 6.85mm with each other.
  • Sewing Speed: 2-3 cover/min.

Fabric Cutting Machine for Sale

In terms of price, we have a special quotation sheet for each machine. At the same time, we can also provide professional mattress machinery solutions and quotations according to your manufacturing needs.

If you need more information about automatic fabric cutting and flanging machine, please leave us a message, or contact our sales representative.

Parameters of YT-CS-1

Total Power

4.5KW

Power Supply

3-Phase, 380V, 50/60Hz

Air Pressure

0.6-0.8Mpa

Stitch Length

1-8mm

Total Weight

1900KG

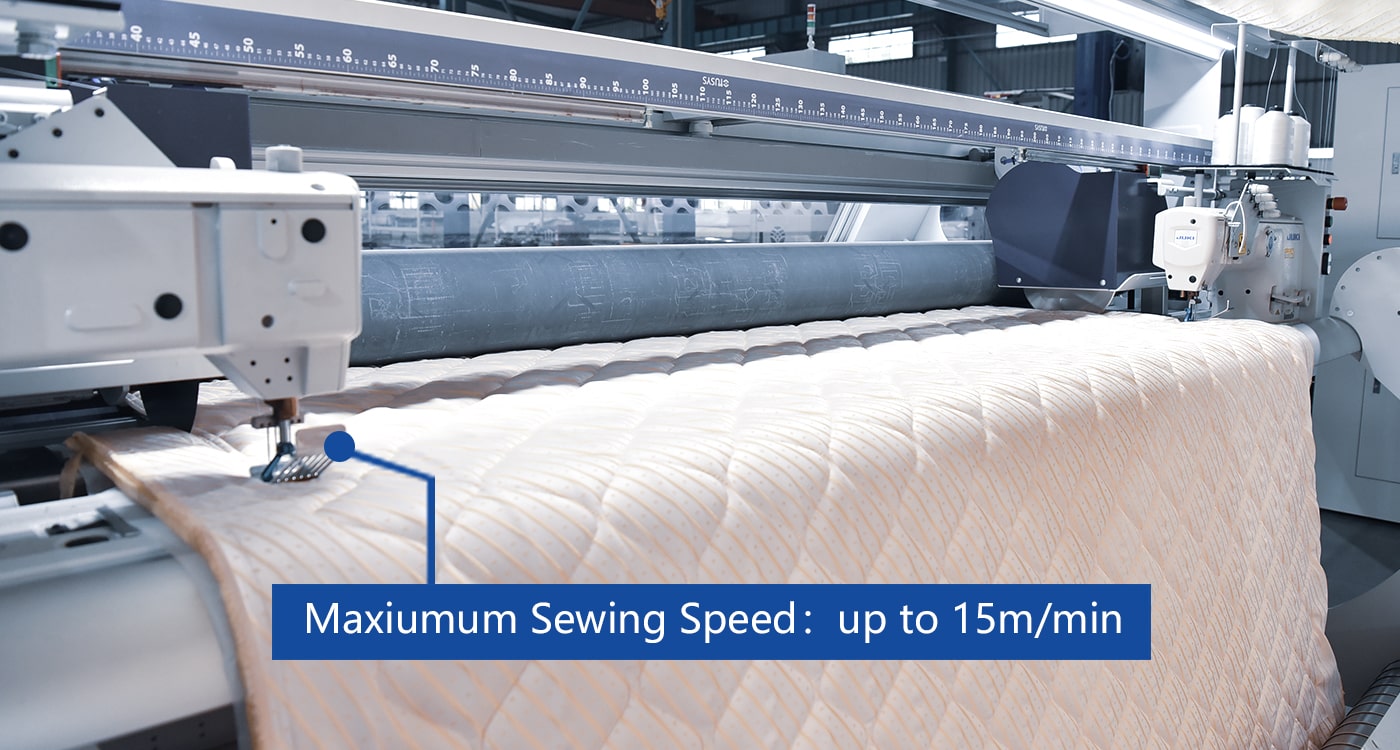

Maxiumum Sewing Speed

Up to 15m/min

Stitches Per Minute

Up to 2500RPM

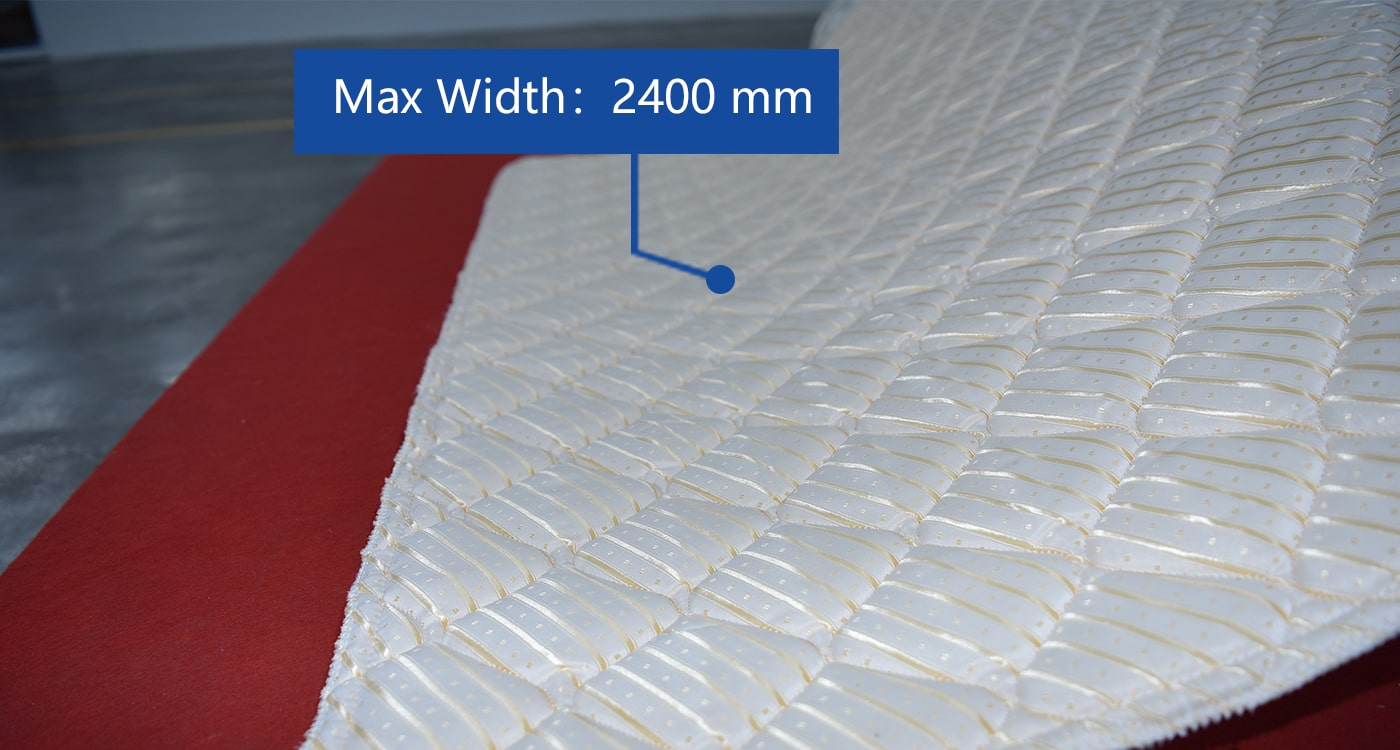

Max Width

2400 mm

Maxiumum Sewing Speed

up to 15m/min

2-3 cover /min (2000 x 2000mm)


Automatic Fabric Cutting and Flanging Machine YT-CS-1
