Automatic Mattress Roll Packaging Machine YT-BZ-5A






The machine is used for mattress packing, compressing, rotating, folding, roll wrapping and conveying rolled mattresses into boxes. It is suitable for frameless pocket spring mattress, sponge mattress and latex mattress, etc.
The well packed mattress, small size for store and long-distance transportation, is especially easier for picking up retail customers.
At the same time, our packaging machine adopts modular design, which can satisfy customer's customized production needs.
Mattress Roll Pack Machine for Sale
In terms of price, we have a special quotation sheet for each machine. At the same time, we can also provide professional mattress machinery solutions and quotations according to your manufacturing needs.
If you need more information about mattress roller packaging machine, please leave us a message, or contact our sales representative.
Parameters of YT-BZ-5A
Total Power |
30KW |
Power Supply |
3-Phase, 380V, 50Hz |
Package Material |
PE / PVC |
Range of Mattress Thickness |
8-40cm |
Max Width of The Packing PE |
2800mm |
Max Width of The Roll-Pack PVC |
2000mm |
Working Pressure |
0.6-0.8Mpa |

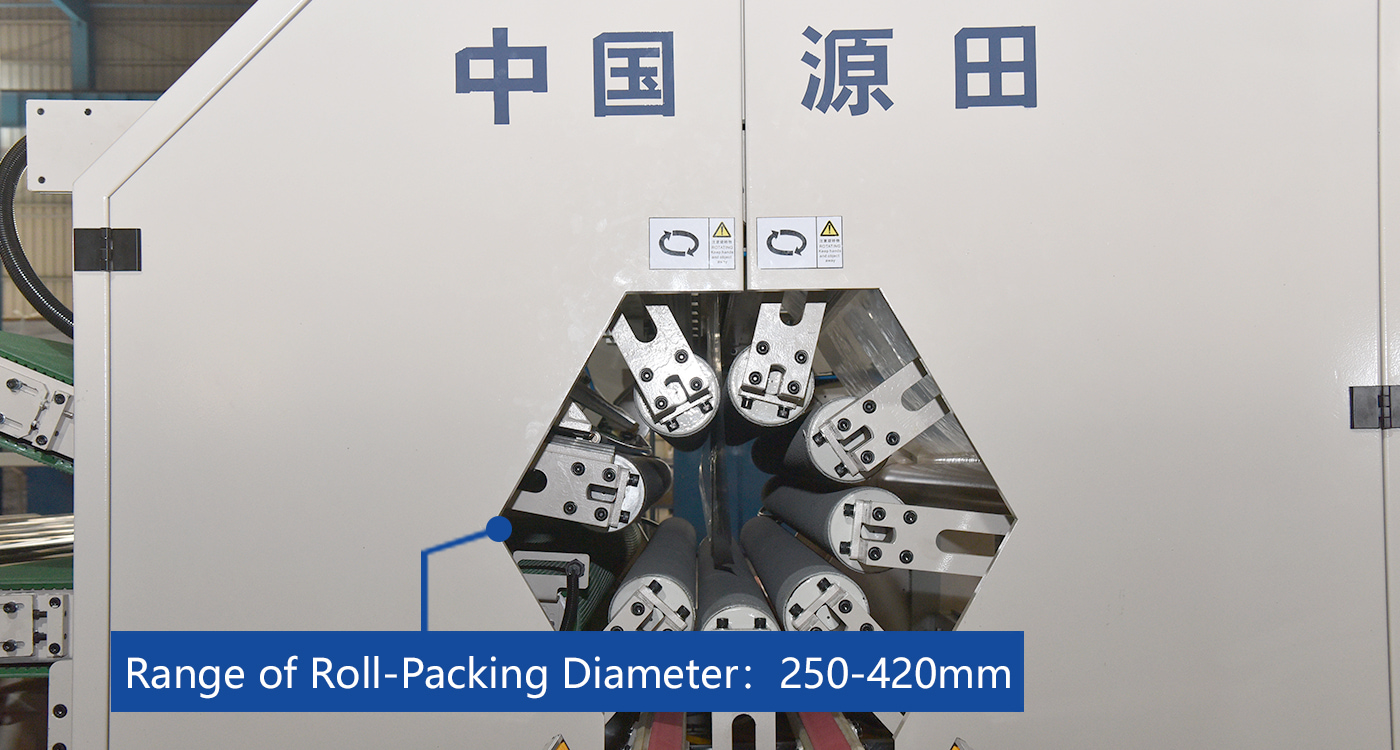

Range of Roll-Packing Diameter |
250-420mm |
Total Weight |
15 tons |
Overall Deimension |
12000x3350x3150mm |
Maximum Length of Mattress |
Max Length 2130mm |
Max Width 1930mm |
|
Roll-packing Method |
Compressed Rolling |
Compressed Folding |
|
Packaging Mattress Types:Pocket Spring Mattress (Without Border Frame), Foam Mattress, Latex Mattress |
Roll Package Operation Interface
Compression Operation
Failure Solution
