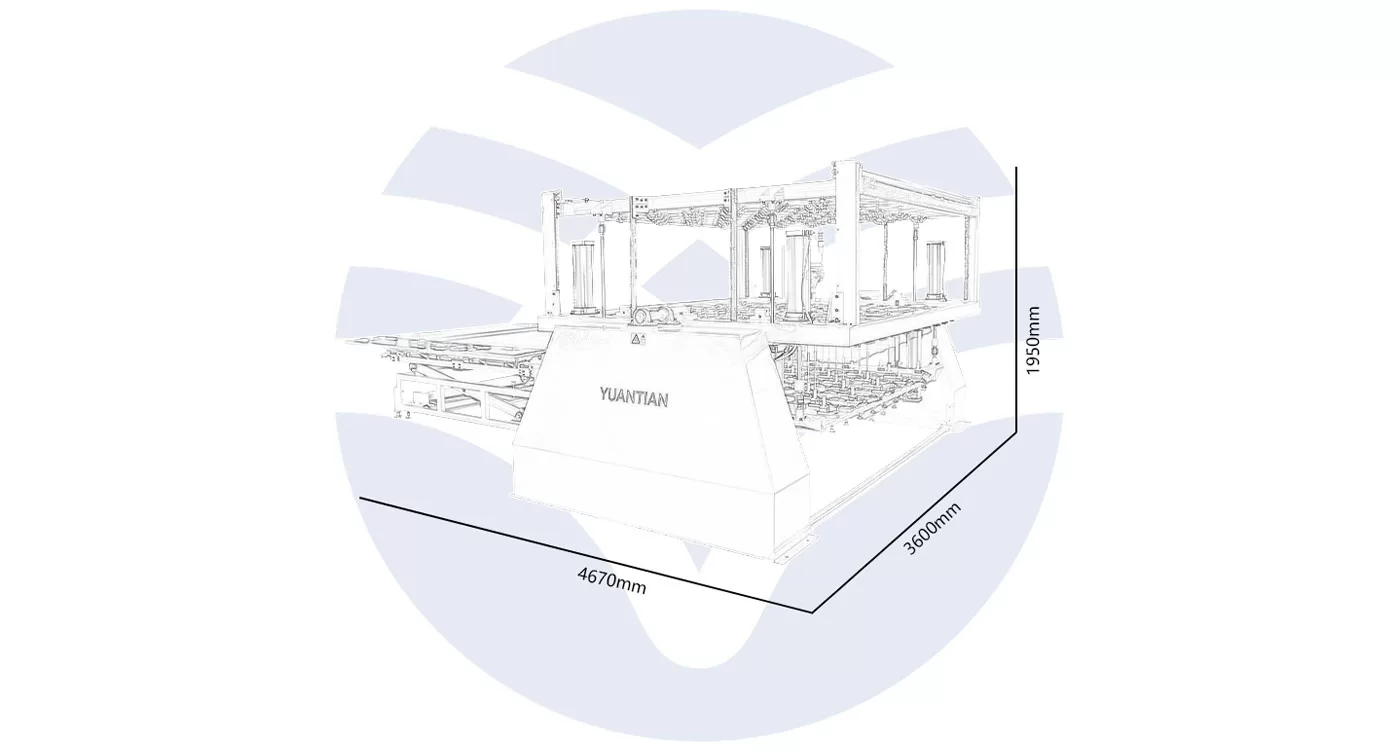

Enhance Your Mattress Production Line with YT-CD-4A Tufting Machine YT-CD-4A
The YT-CD-4A mattress tufting machine serves as an essential tool in the tufting process for mattresses. It features a multi-needle pneumatic synchronous drive that considerably decreases the tufting time compared to traditional methods, where each tuft is handled individually. The machine is operated via a pneumatic system, contributing to an easy learning curve for operators. It supports a mattress size range of 2200 x 2200 x 450 mm and is compatible with various mattress types, including pocket spring, sponge, and latex mattresses. Additionally, the adjustable conveyor table enhances mattress movement and productivity. The tufting machine’s main unit can be rotated, effectively working with the conveyor table to aid in achieving higher levels of automation in mattress tufting processes.
The features of this product are as follows:
1. Multi-needle pneumatic synchronous drivesignificantly reduces the time required for tufting and improves tufting efficiency (traditional tufting machines require tufting one by one).
2. Pneumatic drivemakes operation simple and easy to master.
3. Applicable mattress size range:2200 x 2200 x 450 mm.
4. Applicable mattress types:Pocket spring mattresses, sponge mattresses, and latex mattresses.
5. Adjustable conveyor tablefacilitates mattress transportation.
6. The tufting main machine can be rotated, working in conjunction with the adjustable conveyor table to better achieve automation.
| Air Pressure Requirements | 0.6 – 0.8MPa |
| Power Supply | 380V 50/60Hz (Customizable) |

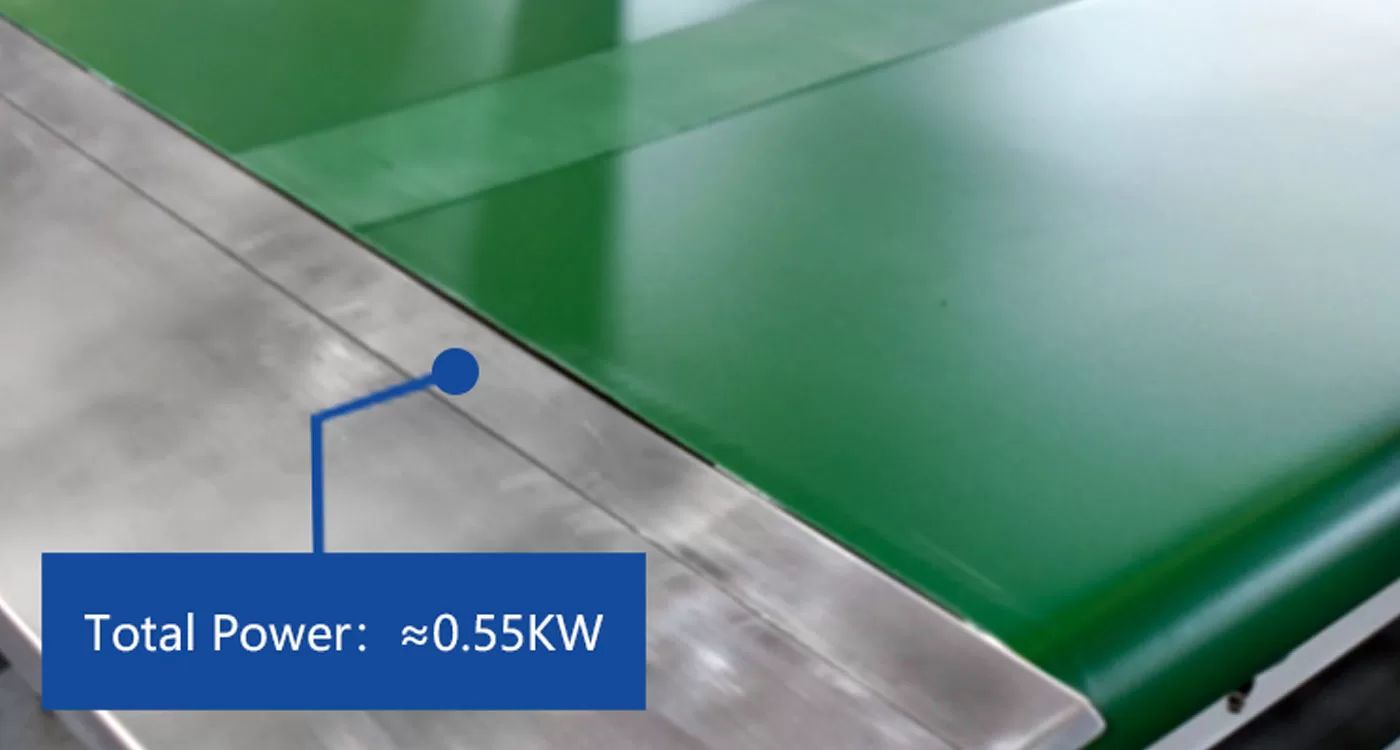

| Total Power | ≈0.55KW |
| Total Weight | ≈2.3t |
| Mattress Size | 2200×2200×450mm |
| Max Quantity of Needle | 50 |
| Needle Gauge | 150×225mm |
