Wire Straightening Machine YT-ZX-1

Wire Straightening Machine
Wire Straightening Machine
Wire Straightening Machine
YT-ZX-1
Wire Straightening Machine
Wire Straightening Machine Pump
Wire Straightening Machine

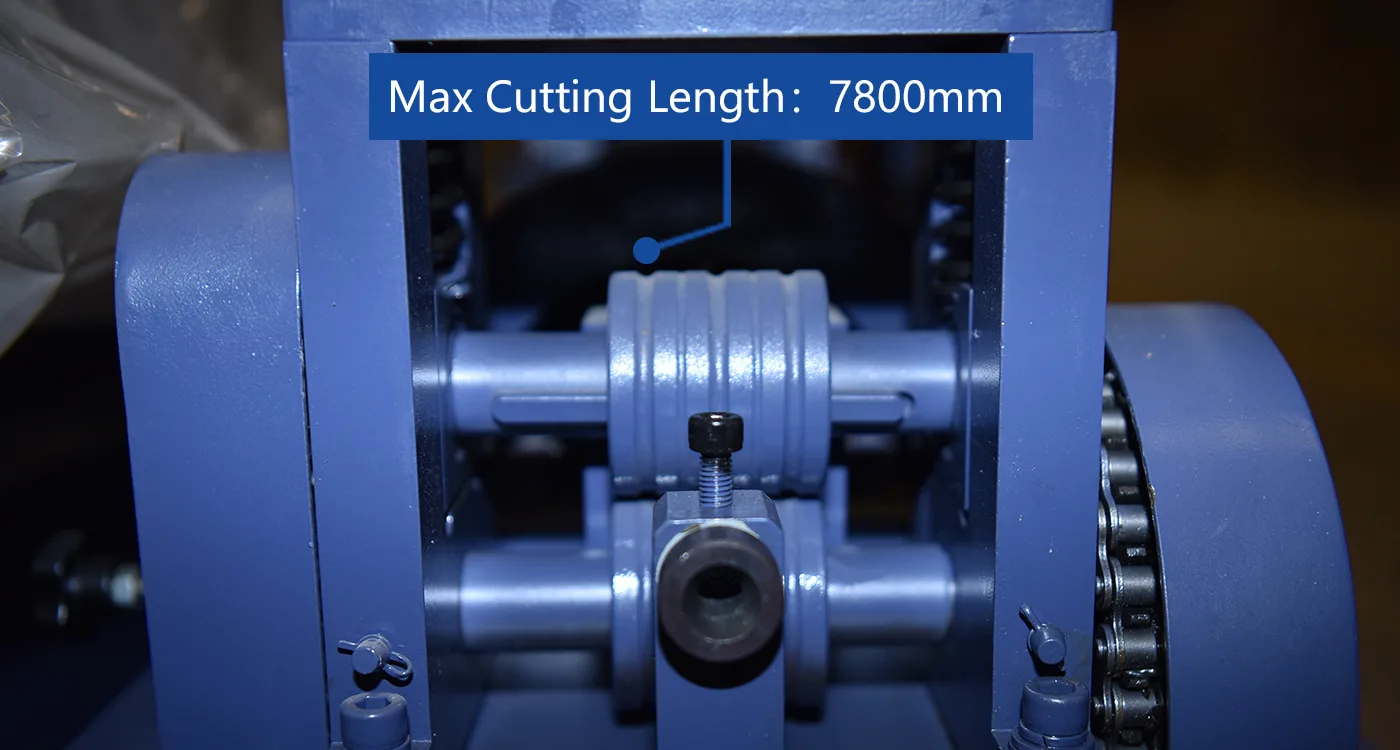

Max Cutting Length

Serving the processing of metal wires in mattress production, it can straighten and cut wires of specific diameters. Through the cooperation of motors with set power and speed, it accurately controls the straightening accuracy and cutting length of wires. It provides regular and consistent wire raw materials for metal frame components such as bed nets and is key equipment for the pretreatment of the metal structure of mattresses.

In terms of price, we have a special quotation sheet for each machine. At the same time, we can also provide professional mattress machinery solutions and quotations according to your manufacturing needs.

If you need more information about wire straightening cutting machine, please leave us a message, or contact our sales representative.

Parameters of YT-ZX-1

Total Power 5.1KW
Power Supply 3-Phase 380V 50Hz
Total Weight 675KG
Max Cutting Length 7800mm
Wire Diameter φ3-φ6mm

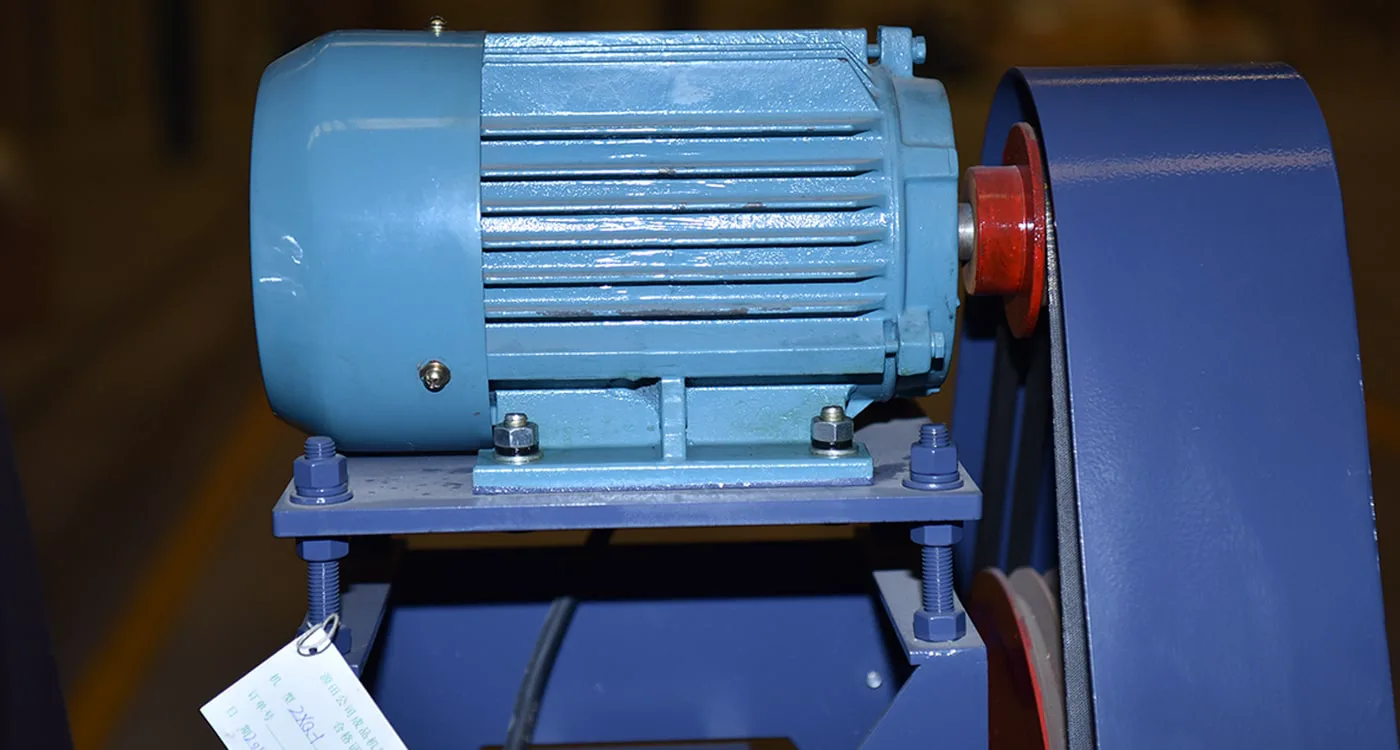

Straightening Motor 4KW, 1440r/min
Cutting Motor 1.1KW, 910r/min

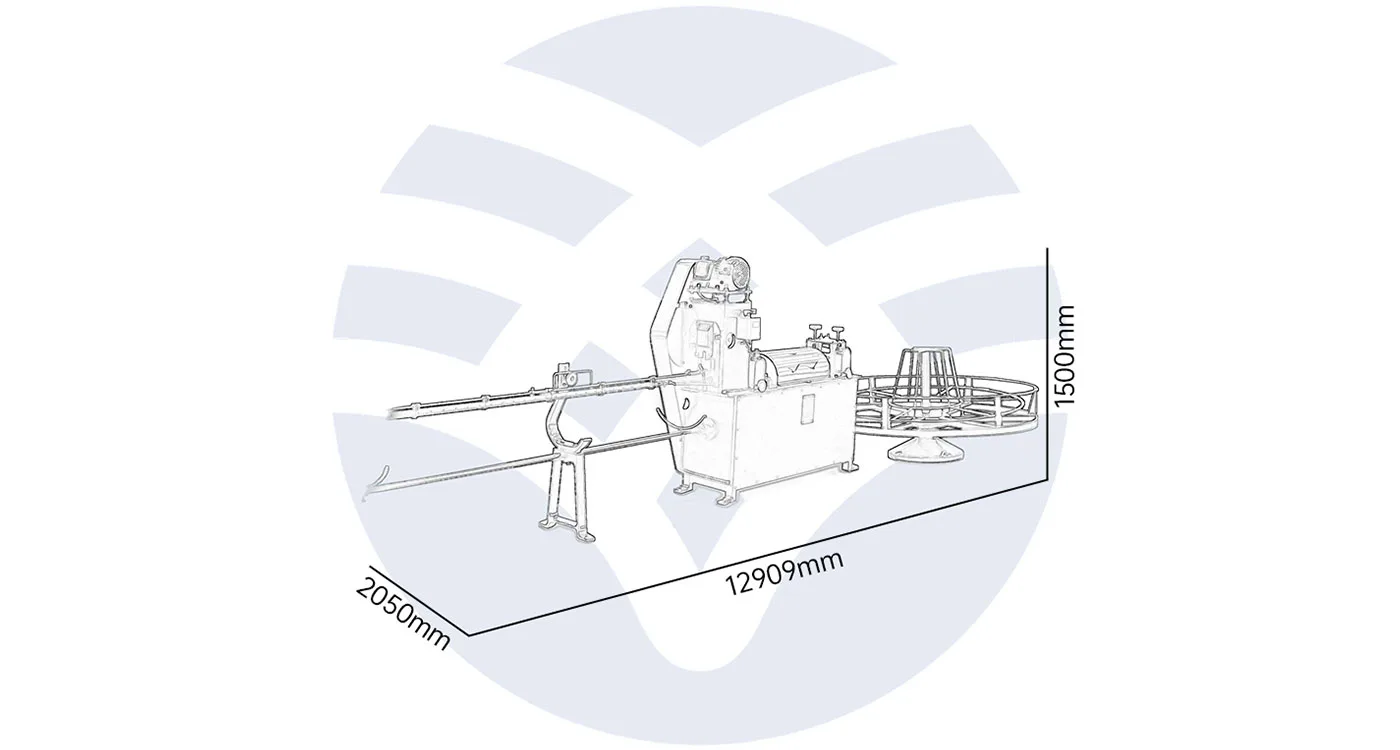

Main Machine Dimension 12909x2050x1500mm
Highly automatic
Straightening function
Automatically measure and cut
