Manual Glue Spraying Machine YT-SDPJ-1

Manual Glue Spraying Machine
Manual Glue Spraying Machine
Manual Glue Spraying Machine
Manual Glue Spraying Machine
Manual Glue Spraying Machine
Manual Glue Spraying Machine
Manual Glue Spraying Machine
Manual Glue Spraying Machine
Manual Glue Spraying Machine
Manual Glue Spraying Machine

This complete handheld hot melt spraying system consists of a manual spray gun and a hot melt glue tank, suitable for manual gluing procedures in mattress, furniture, packaging and automotive interior industries. The spray gun is made of high-temperature resistant material with stable and efficient operation. It supports free switching between line and heliciform glue patterns, adjustable glue output and spraying position, compatible with both ordinary hot melt adhesive and PUR adhesive, and easy to operate and maintain. The matching hot melt glue tank is equipped with a piston pump, featuring a wide temperature control range and stable melting & glue supply output. It can bond various substrates including foam, fabrics and boards. Eco-friendly and low-consumption, the whole system balances easy operation and stable bonding performance, and can be matched with mattress production lines for mattress bonding and edge sealing, serving as flexible supporting gluing equipment for mattress manufacturing.

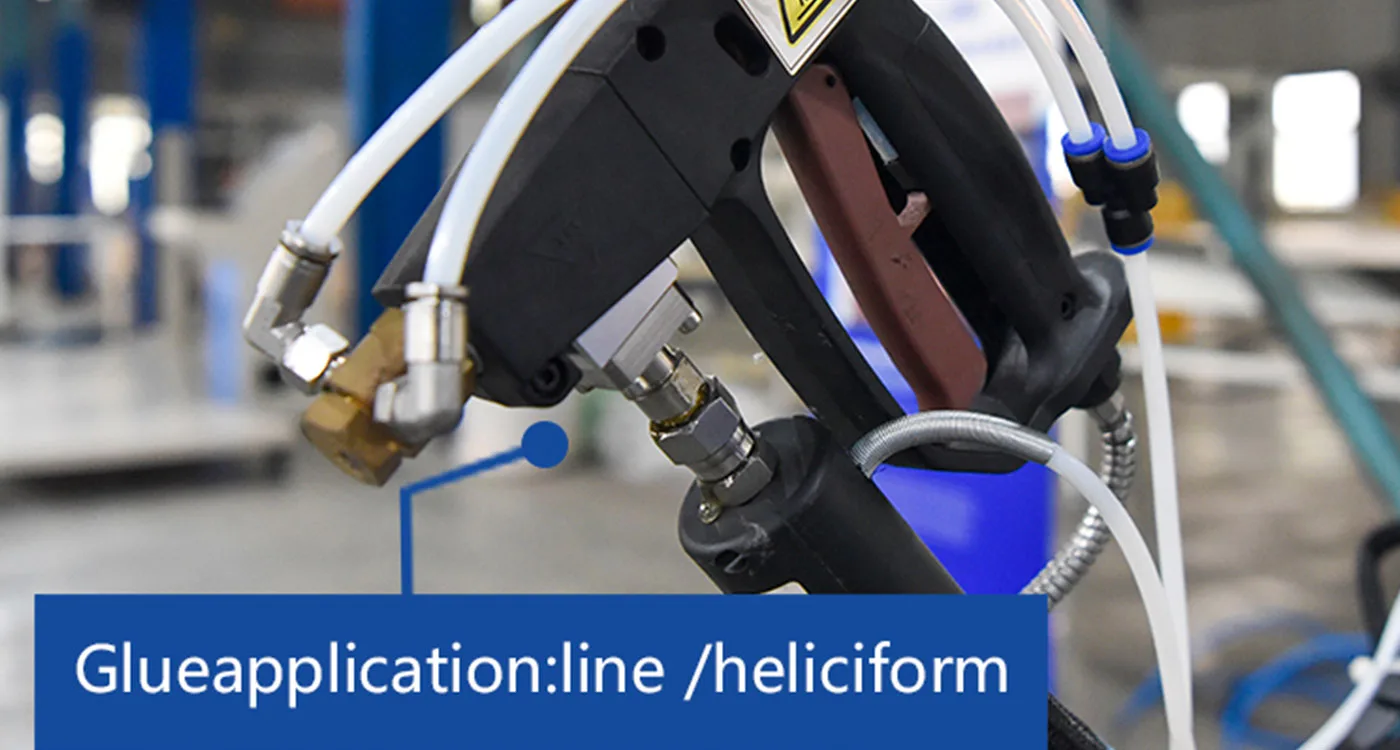

Manual Head

Product information Constructed with high-temperature resistant materials, it delivers efficient and stable performance, significantly improving adhesive application efficiency. Suitable for various automated packaging production lines, it provides precise and controllable glue output. The system supports flexible switching between spiral and bead spray patterns and is compatible with both standard hot melt adhesives and PUR. With adjustable spray positioning, it ensures consistent product quality. Easy to operate and maintain, it is an ideal choice for adhesive applications in the furniture industry.
Technical parameters
Glue application line / heliciform
Gluing width 10-60mm
Operation temperature 40-230℃
Operation frequence 120S/min

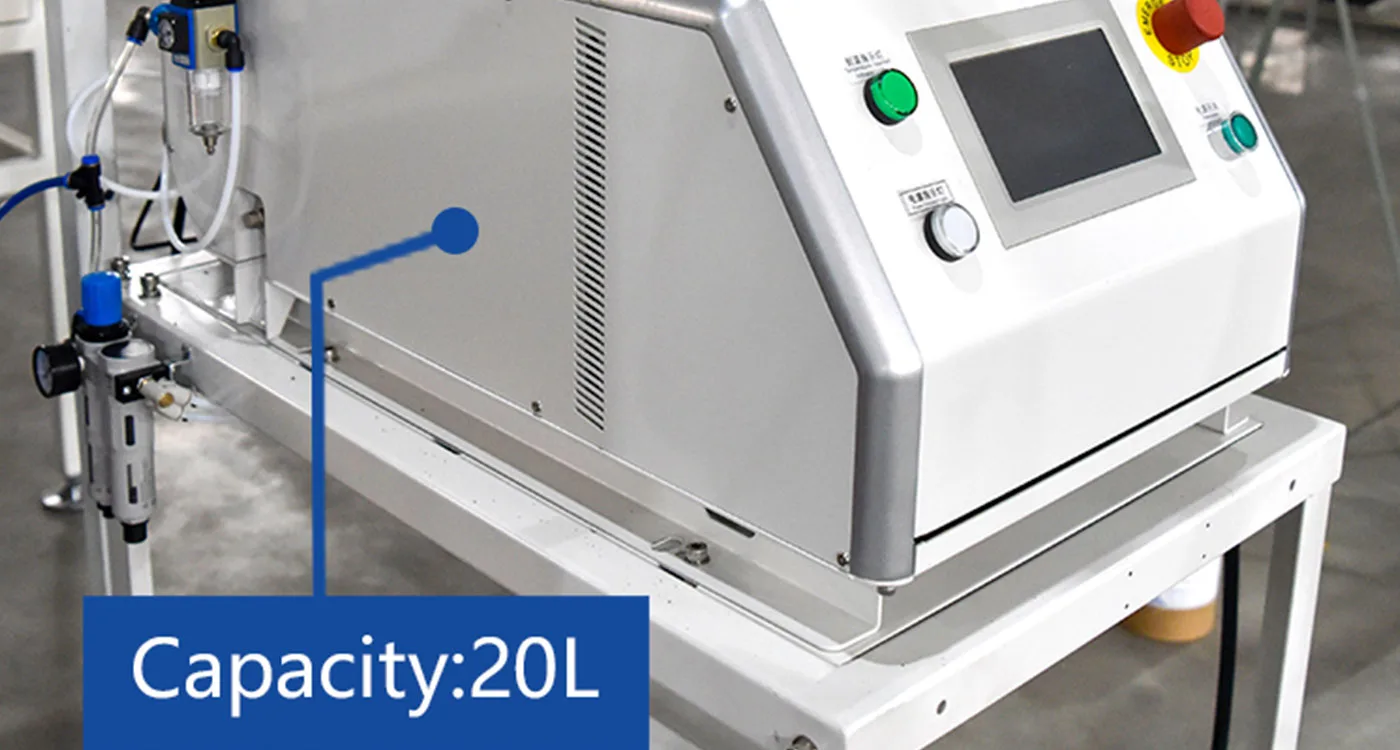

Hot Melt Glue Tank

Product information The handheld hot melt spraying solution is a high-efficient, flexible, and eco-friendly bonding system designed for a wide range of manual applications. It delivers consistent adhesive output with easy operation and stable performance, helping manufacturers improve productivity while reducing material waste and overall production costs.Widely applied across multiple industries, it is ideal for carton sealing and gift box assembly in printing and packaging, panel lamination and upholstery in furniture manufacturing, as well as mattress bonding; it is also suitable for automotive applications such as interior sealing and lamp assembly; and for electronics including component fixing and filter sealing. Compatible with a variety of materials-such as foam, plastics, fabrics, particle boards and composite metals-this system offers excellent versatility, making it a reliable solution for modern manufacturing environments.
Technical parameters
Capacity 20L
Glue pump 20l Piston pump
Melted speed 18.1Kg(40lb)/h
Max air pressure 0.2-0.4Mpa/58 psi
Temperature operation range 38-230℃(100-450℉)
Weight 51kg
Size 405(W)*624(H)*628(L)mm
Max pump speed 32.7Kg(72lb)/h
Max working pressure 6.5MPa(1000psi)
Max power supply (2hoses/guns) 7600W
Max power supply(4 hoses/guns) 8800W
Input voltage 380VAC 3 phases 50/60Hz
