YUANTIAN Mattress Machines spring speed Automatic High Speed Pocket Spring Machine assembling pocket

YUANTIAN Mattress Machines spring speed Automatic High Speed Pocket Spring Machine assembling pocket
  • YUANTIAN Mattress Machines spring speed Automatic High Speed Pocket Spring Machine assembling pocket
  • YUANTIAN Mattress Machines spring speed Automatic High Speed Pocket Spring Machine assembling pocket
  • YUANTIAN Mattress Machines spring speed Automatic High Speed Pocket Spring Machine assembling pocket
  • YUANTIAN Mattress Machines spring speed Automatic High Speed Pocket Spring Machine assembling pocket
  • YUANTIAN Mattress Machines spring speed Automatic High Speed Pocket Spring Machine assembling pocket
  • YUANTIAN Mattress Machines spring speed Automatic High Speed Pocket Spring Machine assembling pocket

YUANTIAN Mattress Machines spring speed Automatic High Speed Pocket Spring Machine assembling pocket

Application:
Mattress, Sofa, Cushion
Model:
DT+DX-012
Brand Name:
YUANTIAN
Place of Origin:
Guangdong, China (Mainland)
Certificates:
ISO9001 / CE
Minimum Order:
1 Set
Price Term:
FOB, C&F, CIF (optional)
Payment Terms:
 L/C T/T
Packaging Details:
Wooden Case
Delivery:
10 - 30 work days
Power Supply: 3Ph,380V 50HZ
Total Power: 65KW
Free Spring Height: 160~260mm
Pocketed Spring Height: 120~220mm
Wire Diameter: Ф1.8〜Ф2.3mm
Mid-Coil Diameter: Ф55〜Ф75mm
Non-Woven Fabric Thickness: ≥70g/m²
Coiling Speed: 170~200 Pcs/min
Assembling Speed: 10 Second / Row
Layout Area: 18m×4m
Air Displacement: 0.6m³
Working Power: 40KW
Non-Woven Fabric Width of Coiling: 400~600mm
Non-Woven Fabric Width of Assembling: 700~2200mm
Max Glue Width: 2100mm
Company Advantages
1. Leveraging on the proficiency of our professionals, we are engaged in providing a wide array of Automatic High Speed Pocket Spring Machine. The sewing speed of the Mattress Flanging Machine is controlled with imported needle position motor and control box
2. Our professionals use superior quality raw material and advanced technology in Automatic Pocket Spring Production Line manufacturing line. Because of mechanical protection devises and safety switches, the machine guarantees maximum safety to operator
3. Our support for your project is completely independent and objective when selecting the suppliers you need to deliver unit machine. DN-4A is exploited for the automatic pocket spring machine, They form a self-contained, high efficiency and high quality product line of mattress
4. YUANTIAN Mattress Machines & Equipment offers a full range of border coiler to fill all your Automatic Pocket Spring Machine needs. Mattress Cutting Machine can be cut continuously, which makes the productivity more efficiency.
5. This machine needs only one operator and there is no need for him to move around or overturn the mattress manually. Thus higher efficiency and less labor is realized, We Always Offers The Latest yuantian, Pocket spring coiling machine, spring coiling machine Designs In Order To Meet Customers' Requirements In Time.

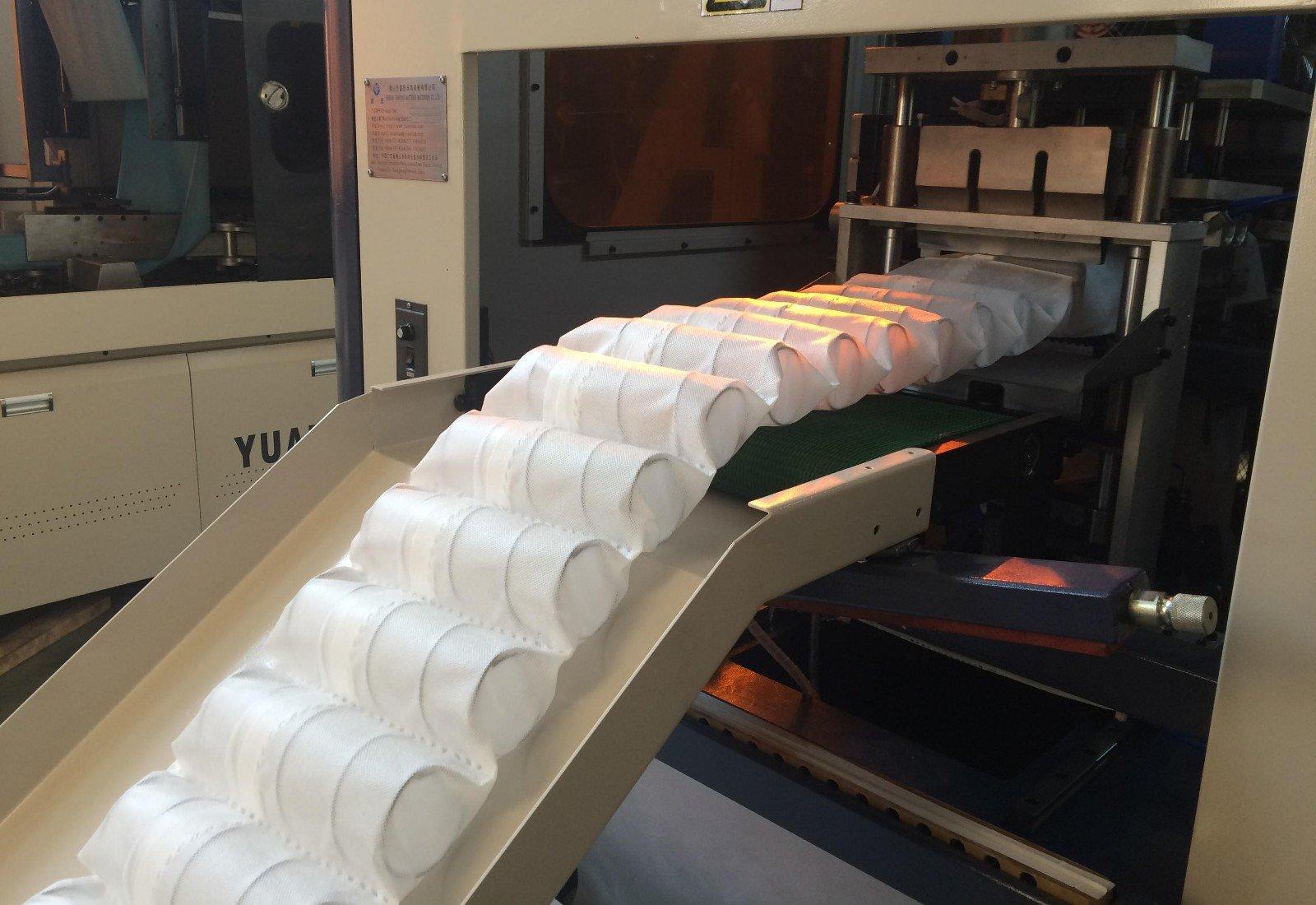

DT+DX-012  Automatic Pocket Spring Production Line



DT+DX-012 is an automatic producion line machine for pocket spring unit with 2 set of DT-012 coiling machine, and 1 set of assembling machine which is with microcomputer NC, self-developed control system,devices for connecting, conveying and glue spraying. It’s the best choice for the production of pocket spring unit production.



1. 2 spring coiler works with 1 assembler to offer high efficiency

2. Microcomputer NC can change parallel or offset assembling without any mechanism  adjusting.

3. Interrupted or continuous glue spray according to production needs.

4. Top and bottom non-woven covers are optional according to production needs.



Main Technical Parameters:



Coiling Speed:170~200 Pcs/min

Assembling Speed:10 Second / Row

Layout Area:18m×4m

Power Supply:3Ph,380V 50HZ

Air Supply:0.6~0.8MPa

Air Displacement:0.6m³

Total Power:65KW

Working Power:40KW

Spring Free Height:160~260mm

Pocket Spring Height:120~220mm

Wire Diameter:Ф1.8~Ф2.3mm

Spring Mid-Coil Diameter:Ф55~Ф75mm

Non-Woven Fabric Width of Coiling:400~600mm

Non-Woven Fabric Width of Assembling:700~2200mm

Max Glue Width:2100mm

Non-Woven Fabric Density:≥70g/m²
