YUANTIAN Mattress Machines mattress tape edge machine edge binding mattress machine

YUANTIAN Mattress Machines mattress tape edge machine edge binding mattress machine
  • YUANTIAN Mattress Machines mattress tape edge machine edge binding mattress machine
  • YUANTIAN Mattress Machines mattress tape edge machine edge binding mattress machine

YUANTIAN Mattress Machines mattress tape edge machine edge binding mattress machine

Application:
Mattress, Sofa, Cushion
Model:
WB-1
Brand Name:
YUANTIAN
Place of Origin:
Guangdong, China (Mainland)
Certificates:
ISO9001 / CE
Minimum Order:
1 Set
Price Term:
FOB, C&F, CIF (optional)
Payment Terms:
 L/C T/T
Packaging Details:
Wooden Case
Delivery:
10 - 30 work days
Productivity: 15units/h
Overall Dimension: 2130×2010×1565mm
Power Supply: Single-Phase, 220V, 50Hz
Total Power: 400W
Machine Weight: 464Kg
Table Size: 2000x1600mm
Mattress Thickness: (40-300)mm
Table Automatic Lifting Range: 260mm
Max Tilting Angle: 40°
Company Advantages
1. Moreover, the entire range of mattress tape edge machine is manufactured by our adroit professionals using premium grade raw material and ultra modern technology. Up to now, we have leaded and completed more than 20 provincial research projects
2. Making waves in universal market, our range of mattress tape edge has gained wide admiration within a short period of time. This heat treatment relaxes the springs from tense and prepares the wire optimally for coiling.
3. Other key features include mattress tape edge machine and mattress tape edge sewing machine. SA-330 High-speed Multi-needle Mattress Quilting Machine is a new high efficiency and high automatic equipment developed by our company.
4. We are specialised in manufacturing and exporting a premium quality range of'mattress edge banding machine', which are used for specially for different kinds of gold and diamond jewellery. Our products enjoy a leading position in the mattress machinery industry

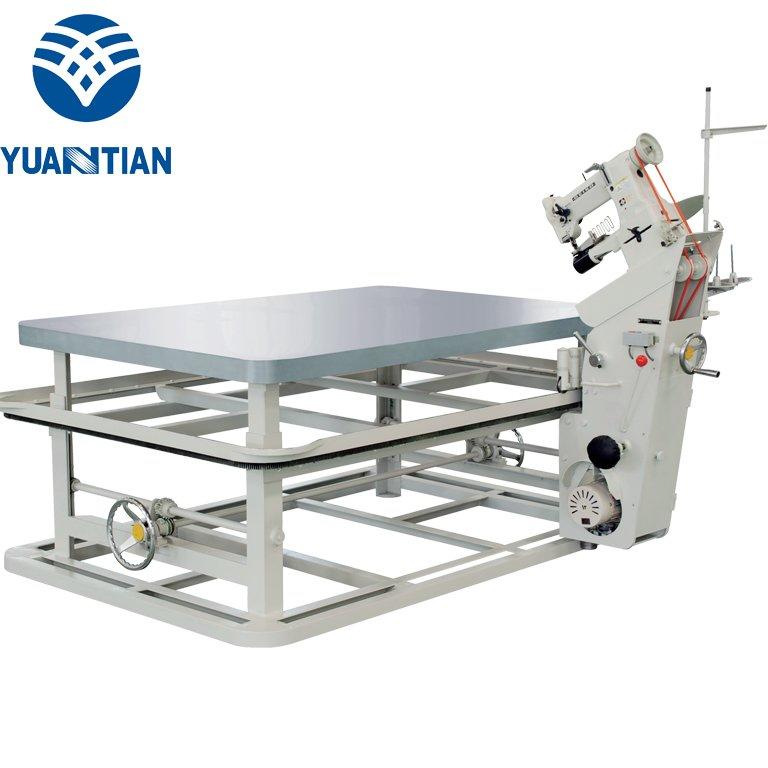

WB-1 YUANTIAN LOCK STITCH TAPE EDGE MACHINE

This machine is mainly used for tape edge sewing of the mattress panels, sleeping bags, tent, cushions, as well as beddings.


TECHNICAL FEATURES:

1. Equipped with imported or China-made sewing head according to customers requirement.
2. Hand-controlled lifting table, hand-controlled titling of sewing head.
3. Hand-controlled speed for moving of carriage and sewing, hand-controlled slowdown at corners.
4. Straight, enen and trim seam.
5. Low noise, low vibration, stable performance.


MAIN TECHNICAL PARAMETERS:

Thickness Of Mattress

40-300)mm

Table Lifting Rang

260mm

Max Tilting Angle40°
Power Supply

Single-Phase, 220V, 50Hz

Table Size

1930×1300mm

Overall Dimension

2130×2010×1565mm

Total Power

400W

Net Weight

464Kg

Capacity

15units/h

Packing Measurement2240*1640*1000mm
Gross Weight575kgs




Company Features
1. YUANTIAN MATTRESS MACHINERY CO LTD. is an award winning mattress tape edge machine based, privately owned property development and bespoke mattress tape edge machine company.
2. Equipped with high precision components and manufactured with latest technology, YUANTIAN Mattress Machines mattress tape edge are used for mattress tape edge sewing machine.
3. In addition to our years of experience, we pride ourselves in our superior workmanship, fair business practice, the highest level of customer service, and our honest and ethical way of doing business. Get Price!
