YUANTIAN Mattress Machines Brand coiler line bonnell spring machine unit

YUANTIAN Mattress Machines Brand coiler line bonnell spring machine unit
  • YUANTIAN Mattress Machines Brand coiler line bonnell spring machine unit
  • YUANTIAN Mattress Machines Brand coiler line bonnell spring machine unit
  • YUANTIAN Mattress Machines Brand coiler line bonnell spring machine unit
  • YUANTIAN Mattress Machines Brand coiler line bonnell spring machine unit

YUANTIAN Mattress Machines Brand coiler line bonnell spring machine unit

Application:
Mattress, Sofa, Cushion
Model:
TX-011
Brand Name:
YUANTIAN
Place of Origin:
Guangdong, China (Mainland)
Certificates:
ISO9001 / CE
Minimum Order:
1 Set
Price Term:
FOB, C&F, CIF (optional)
Payment Terms:
 L/C T/T
Packaging Details:
Wooden Case
Delivery:
10 - 30 work days
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Captcha

Loading verification code...

Please complete verification first

Productivity: 6-15 Unit/H (according to size)
Power Supply: AC380V  50HZ
Total Power: 38KW (Max)
Free Spring Height: 5 Turns:130-180mm,6 Turns:150-180mm
Wire Diameter: (Φ2.0-Φ2.4)mm
Coiling Speed: 80 Pcs/Min
Motor Power: 3Kw
Wire Bobbin Loading: Max 1000KG
Wire Bobbin: Min Dia:350mm ,Max Dia:1000mm
Installation Area : 8000mmX6000mm
Product Comparison
Compared with other products in the same category, china Mattress Machines has the following competitive advantages.
  • v s
Company Advantages
1. It is manufactured based on advanced machines. bonnell spring machine are in high demands among the customers across the country.
2. Excellent performance and long service life make the product competitive. A solution including this product which is to provide the most comprehensive production can be offered
3. The product is sold to over 100 countries and regions. for the development of YUANTIAN Mattress Machines, delicate Automatic Bonnell Spring Coiling Machine,bonnell spring coiling machine are only allowed in the company.

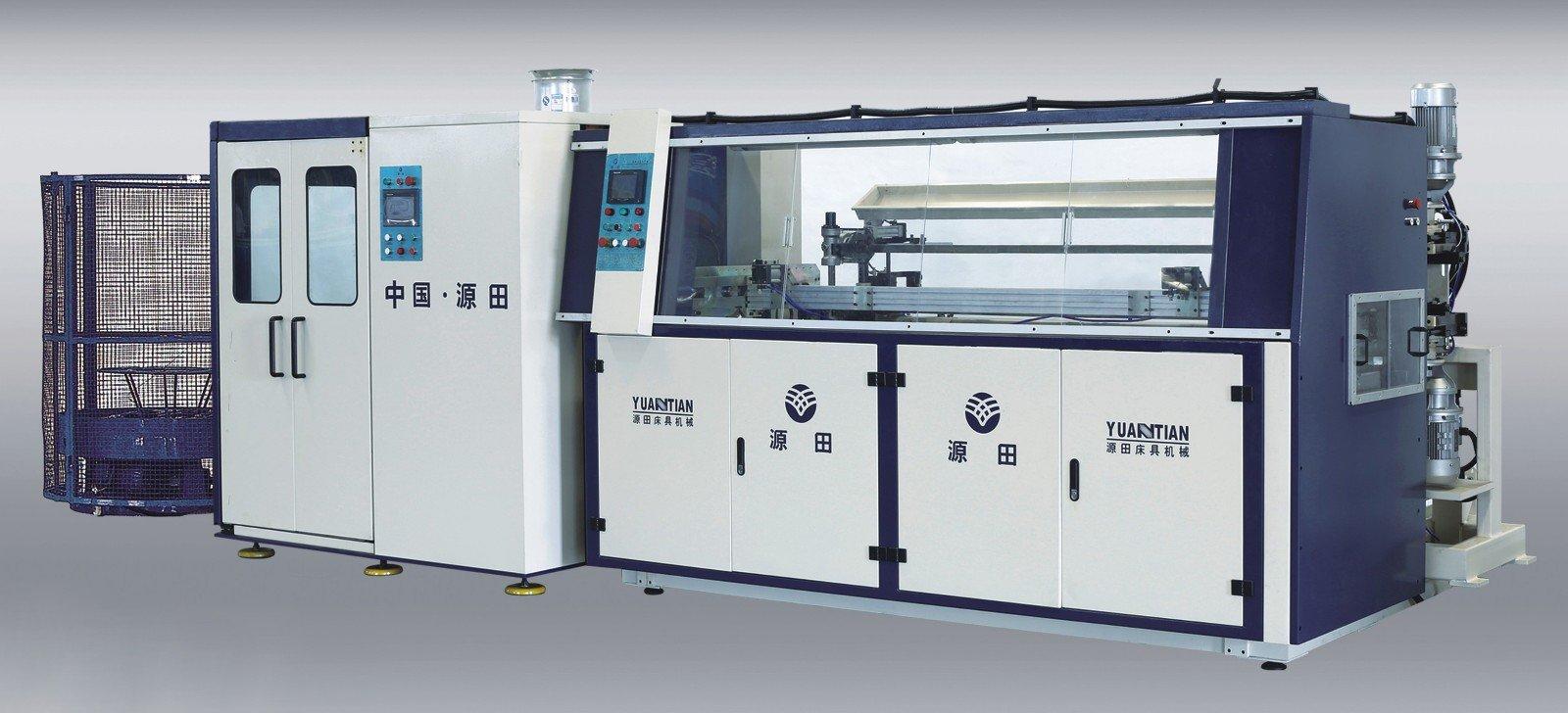

TX-011 Automatic Spring Unit Production Line Machine


This is automatic production line of bonnell spring unit. Feed in wire, spring unit comes out, without collecting or ranging springs by hand. Firstly bonnell spring is made of wire, then is sent to certain place by spring conveyor and into the assembling machines by mechanical arms to assemble spring unit. Spring conveyor is with simple structure, accurate positioning servo, and good stability.





Technical Parameters:



Capacity: 6-15 Unit/H (according to size)

Coiler Speed: 80 Pcs/Min

Power Supply: AC380V  50HZ

Total Power: 38KW (Max)

Air Supply: 0.6Mp

Wire Diameter: Φ2.0-Φ2.4mm

Spring Diameter: (Φ65-Φ90)mm

Height: 5 Turns130-180mm6 Turns150-180mm

Wire Bobbin Loading: Max 1000KG

Wire Bobbin: Min Dia350mm Max Dia1000mm

Installation Area: 8000mmX6000mm

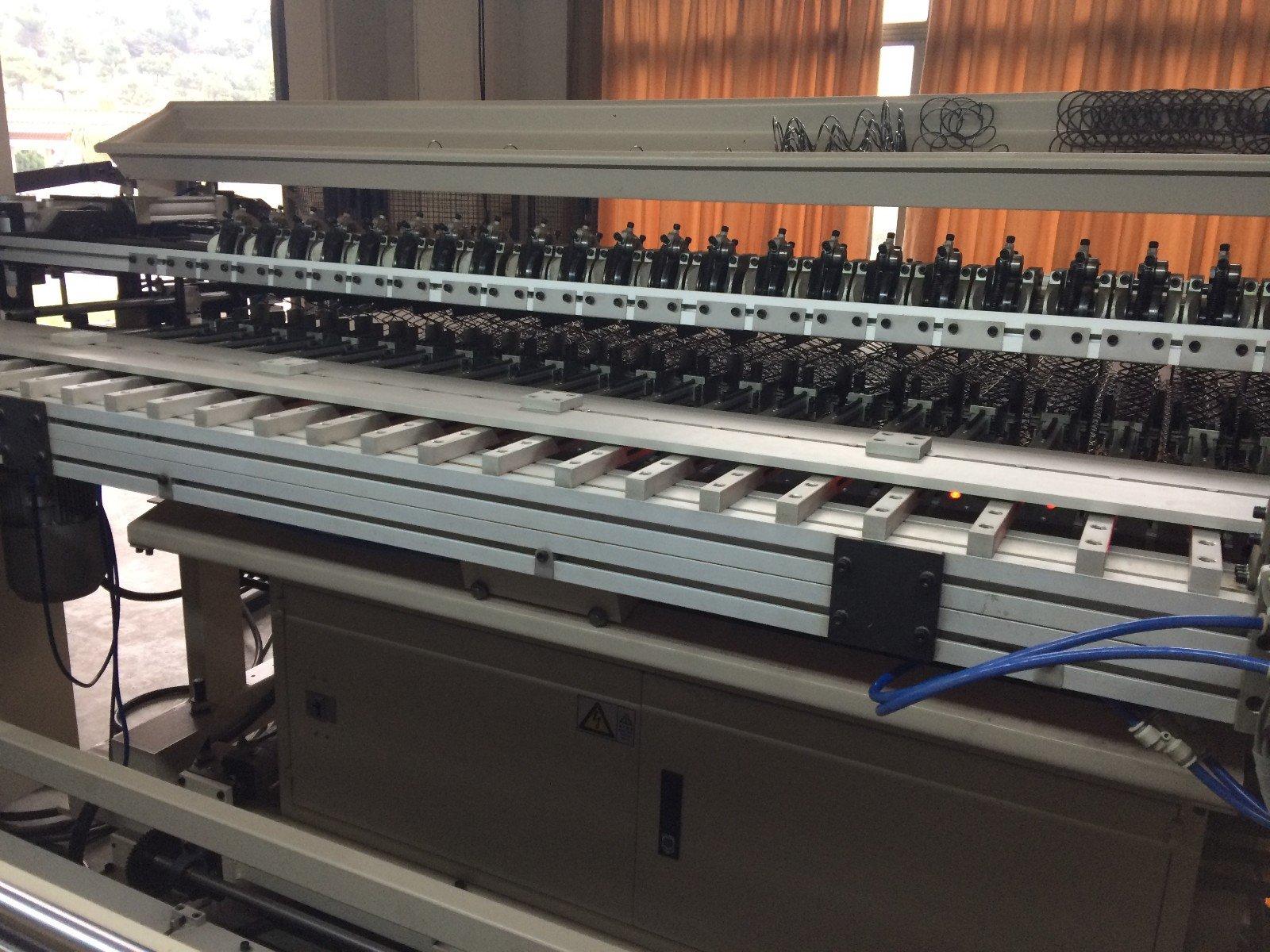

This is the automatic bonnell spring mattress production line, two parts combination. Below shows the part of bonnell spring making.



After bonnell spring coiling, heat treatment, cooling, it will be automatically transferred to assembling part.







Company Features
1. With a solid foundation and technical strength, YUANTIAN MATTRESS MACHINERY CO LTD. is an excellent place for investment in the field of Automatic Bonnell Spring Coiling Machine.
2. We are offering a broad gamut of Bonnell Spring Machine to our respected clients.
3. YUANTIAN Mattress Machines applies high-end technology to produce the highest quality Automatic Bonnell Spring Coiling Machine. Inquire online!
