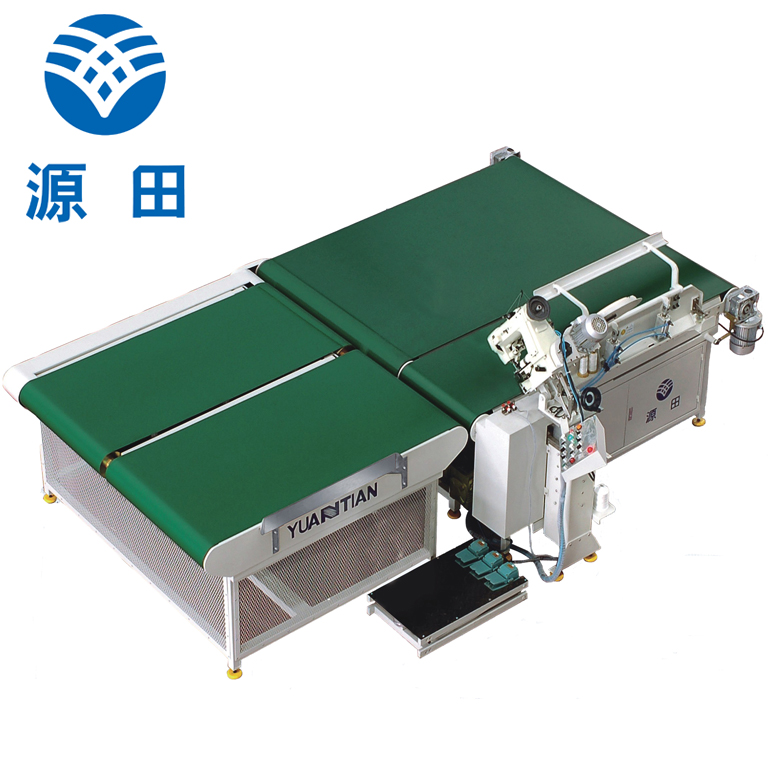

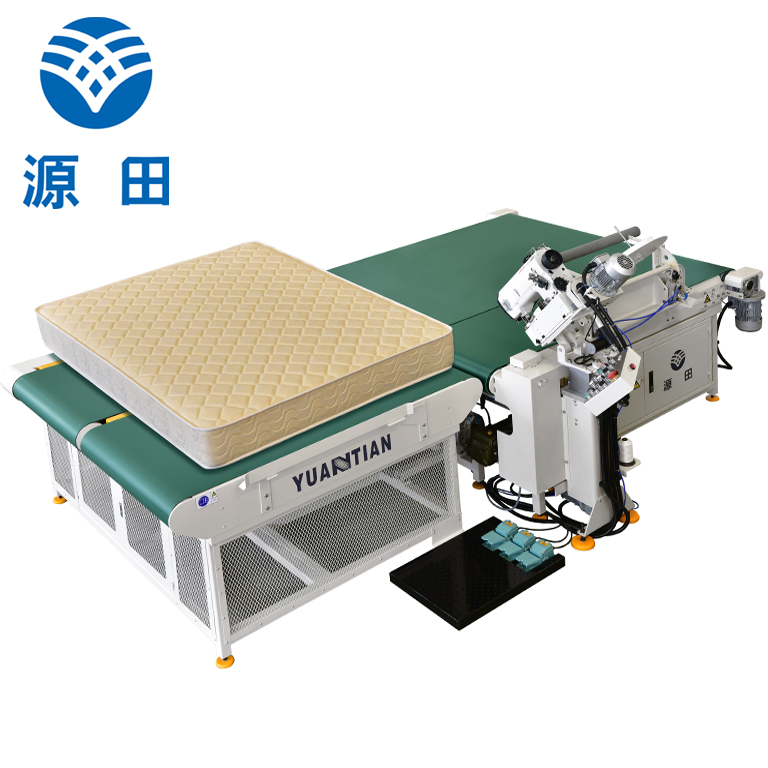

Quality mattress tape edge machine YUANTIAN Mattress Machines Brand tape mattress tape edge machine

Quality mattress tape edge machine YUANTIAN Mattress Machines Brand tape mattress tape edge machine
  • Quality mattress tape edge machine YUANTIAN Mattress Machines Brand tape mattress tape edge machine
  • Quality mattress tape edge machine YUANTIAN Mattress Machines Brand tape mattress tape edge machine
  • Quality mattress tape edge machine YUANTIAN Mattress Machines Brand tape mattress tape edge machine
  • Quality mattress tape edge machine YUANTIAN Mattress Machines Brand tape mattress tape edge machine
  • Quality mattress tape edge machine YUANTIAN Mattress Machines Brand tape mattress tape edge machine
  • Quality mattress tape edge machine YUANTIAN Mattress Machines Brand tape mattress tape edge machine
  • Quality mattress tape edge machine YUANTIAN Mattress Machines Brand tape mattress tape edge machine
  • Quality mattress tape edge machine YUANTIAN Mattress Machines Brand tape mattress tape edge machine

Quality mattress tape edge machine YUANTIAN Mattress Machines Brand tape mattress tape edge machine

Application:
Mattress, Sofa, Cushion
Model:
WB-4A
Brand Name:
YUANTIAN
Place of Origin:
Guangdong, China (Mainland)
Certificates:
ISO9001 / CE
Minimum Order:
1 Set
Price Term:
FOB, C&F, CIF (optional)
Payment Terms:
T/T, L/C
Packaging Details:
Wooden Case
Delivery:
10 - 30 work days
Productivity: 18units/h
Power Supply: 3-Phase 380V 50Hz
Total Power: 3kw
Machine Weight: 1300Kg
Mattress Thickness: 60-350/150-450mm
Table Automatic Lifting Range: 125-450mm
Company Advantages
1. From mattress tape edge machine to mattress tape edge sewing machine, YUANTIAN Mattress Machines mattress tape edge machine offers a wide array of solutions that can be tailored to fit your needs. This machine needs only one operator and there is no need for him to move around or overturn the mattress manually. Thus higher efficiency and less labor is realized.
2. If You Want To Get More Types Of Our Products, Please Contact Us, DN-4A is exploited for the automatic pocket spring machine, They form a self-contained, high efficiency and high quality product line of mattress,Offering Quality mattress tape edge And Sincere Services To Our All Clients Is What YUANTIAN MATTRESS MACHINERY CO LTD. Always Pursue, Pls Contact Us As We Will Give You Our Lowest Quotations.
3. The user can set up machine for various sizes of spring units, the thickness of wire, the height of the spring and diameter of the end ring, YUANTIAN Mattress Machines Is One Of The Largest mattress tape edge Manufacturers In China.
4. All the mattress edge banding machine are widely used in various Automatic Turn Mattress Tape Edge Machine(WB-4A for their ethnic designs. Mattress Cutting Machine can be cut continuously, which makes the productivity more efficiency


This mattress machine is maninly used for taping edge of mattress panel and soft cushion.


Features


The sewing head is fixed but can move up and down to adapt to different height of mattress.


The angle of the head is adjustable.


. When working, the conveying belt drives the mattress to proceed.


When one side is finished, this mattress machine can turn 90° automatically to start taping the next side.


The taping of the corner is finished while turning.



When the top four sides are completed, the machine can turn the mattress over for taping the other four sides.


This machine needs only one operator and there is no need for him to move around or overturn the mattress manually.


Higher efficiency and less labor is realized.


Main Technical Parmeters


Thickness of Mattress60-350mm or 150-450mm
Table Lifting Range125-450mm
Table Size2000*3950*900mm
Overall Dimension3000*4050*1650mm
Gross Weight1300kgs
Capacity18 units per hour
Total Power3KW
Power Supply3-Phase, 380V, 50HZ
Moving StyleBelt Move
SpeedAdjustable


Possible Customized Parameter:


Color on Machine:Blue or to order


Sewing Head: China Chainstitch Sewing Head or PFAFF Chainstitch Sewing Head


Working Table:2000 * 1600mm or 2000 * 1800mm


Installation

We can offer installation, commissioning and training in buyer's factory for domestic and overseas customers.


Product Warranty

2 years, but wearing parts, consumption material and the damage incurred by the Buyer's incorrect operation are out of the warranty range.
