Flanging Machine Series
Manual Flanging Machine

Manual Flanging Machine YT-SB-7

Presser Foot And Position Needles Can Be Controlled, Low Noise, Stable Performance

Manual Flanging Machine

Presser Foot And Position Needles Can Be Controlled, Low Noise, Stable Performance

Max Rotating Speed

Description
Specifications
Sample
Video

Features

Needle cooling system.
JUKI Japanese JUKI sewing head.
Auto lubrication system.
Push-button type regulator.
Double straight needles design.
Presser foot and position needles can be controlled, low noise, stable performance.

In terms of price, we have a special quotation sheet for each machine. At the same time, we can also provide professional mattress machinery solutions and quotations according to your manufacturing needs.

If you need more information about manual flanging machine, please leave us a message, or contact our sales representative.

Parameters of YT-DS-7

Total Power	750W
Power Supply)	Single-Phase 220V 50Hz
Flanging Width	30mm
Needle Gauge	19mm
Stitch Length	2-5.5mm

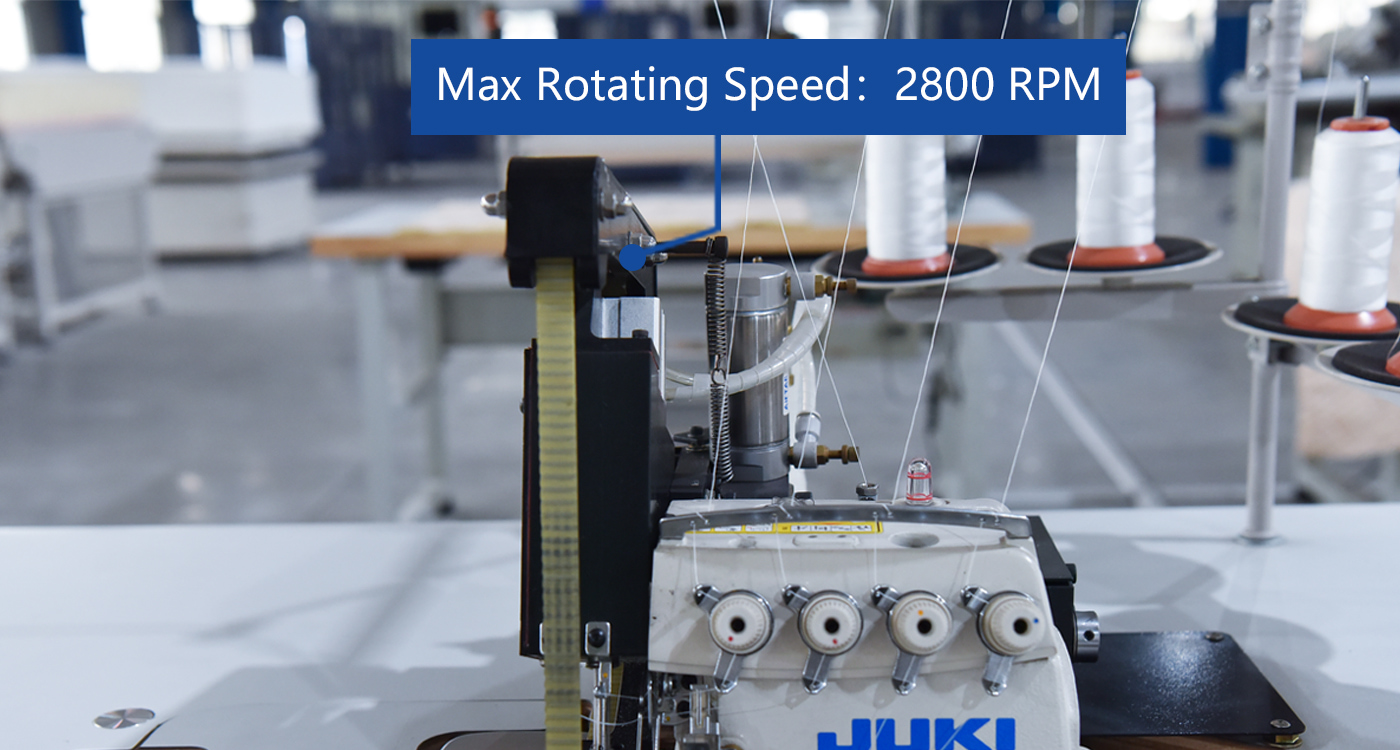

Max Rotating Speed	2800RPM
Flanging Thickness	10-100mm
Needle	DPX5 22#
Lubrication	Shell C 10 Spindle Oil
Air Supply	0.6-0.8Mpa

YT-DS-7 Flanging Machine Sample
