Air Supply
0.5-0.8Mpa
Application:
Mattress, Sofa, Cushion edge overlock sewing
Model:
DS-8A
Brand Name:
YUANTIAN
Place of Origin:
Guangdong, China (Mainland)
Certificates:
ISO9001 / CE
Minimum Order:
1 Set
Price Term:
FOB, C&F, CIF (optional)
Payment Terms:
 L/C T/T
Packaging Details:
Wooden Case
Delivery:
10 - 30 work days
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Packing: 1510*780*770mm
Eco-Friendly: Eco-friendly
Warranty: 1 Year
Flanging width range: 30mm
Flanging speed: 2500Rpm
Needle Model: DPX5 22#
Flanging Stitch Length: 2.5 - 5.5mm
Air Supply: 0.5 - 0.8Mpa
Power Supply: single phase, 220V, 50Hz
Total Power: 750W
Flanging Width: 30mm
Flanging Thickness: 90mm
Lubrication: Shall C 10 Spindle Oil
Needle Gauge: 19mm
Company Advantages
1. YUANTIAN MATTRESS MACHINERY CO LTD. persists in the philosophy of' quality most important, customer first considered', and meanwhile provide customers with high quality products and considerate technical services.Yuantian ZX-1 Wire Straightening Machine, which is mainly used for straightening steel wire from roll and cutting to length needed. It can measure and cut the wire automatically and work continually. The measuring device can be in adjustable
2. YUANTIAN MATTRESS MACHINERY CO LTD. provides customers with professional pre-sales and post-sales technical solutions. Established in 1982, FOSHAN YUANTIAN MATTRESS MACHINERY CO LTD is a professional high-tech enterprise specialized in manufacturing mattress machines and spring mattresses
3. The Mattress Flanging Machineof the products cannot be overemphasized to ensure high durability. Up to now, we have leaded and completed more than 20 provincial research projects
4. Our domain expertise has enabled us to come with an excellent collection of flanging machine china. DN-4A is exploited for the automatic pocket spring machine, They form a self-contained, high efficiency and high quality product line of mattress

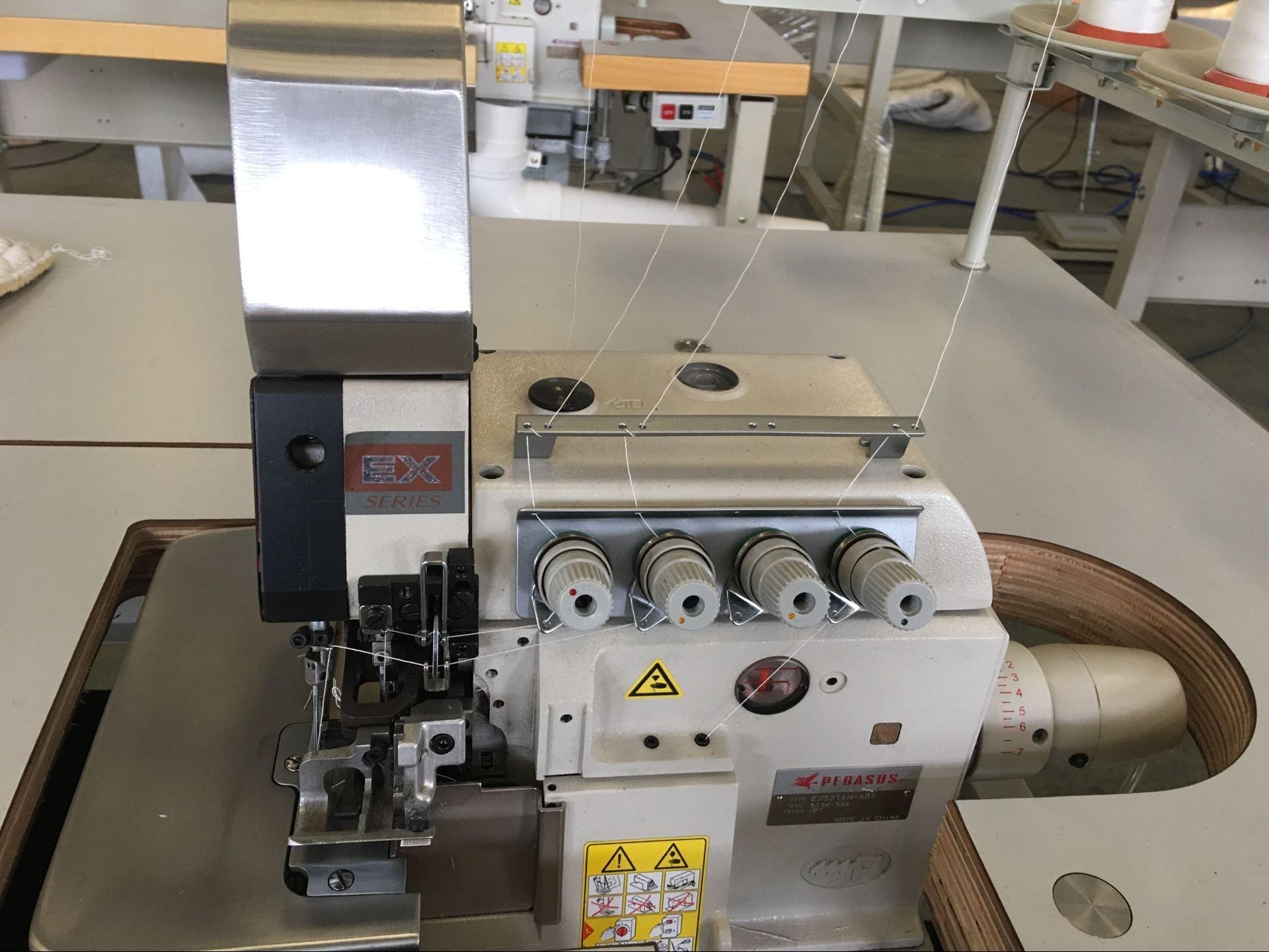

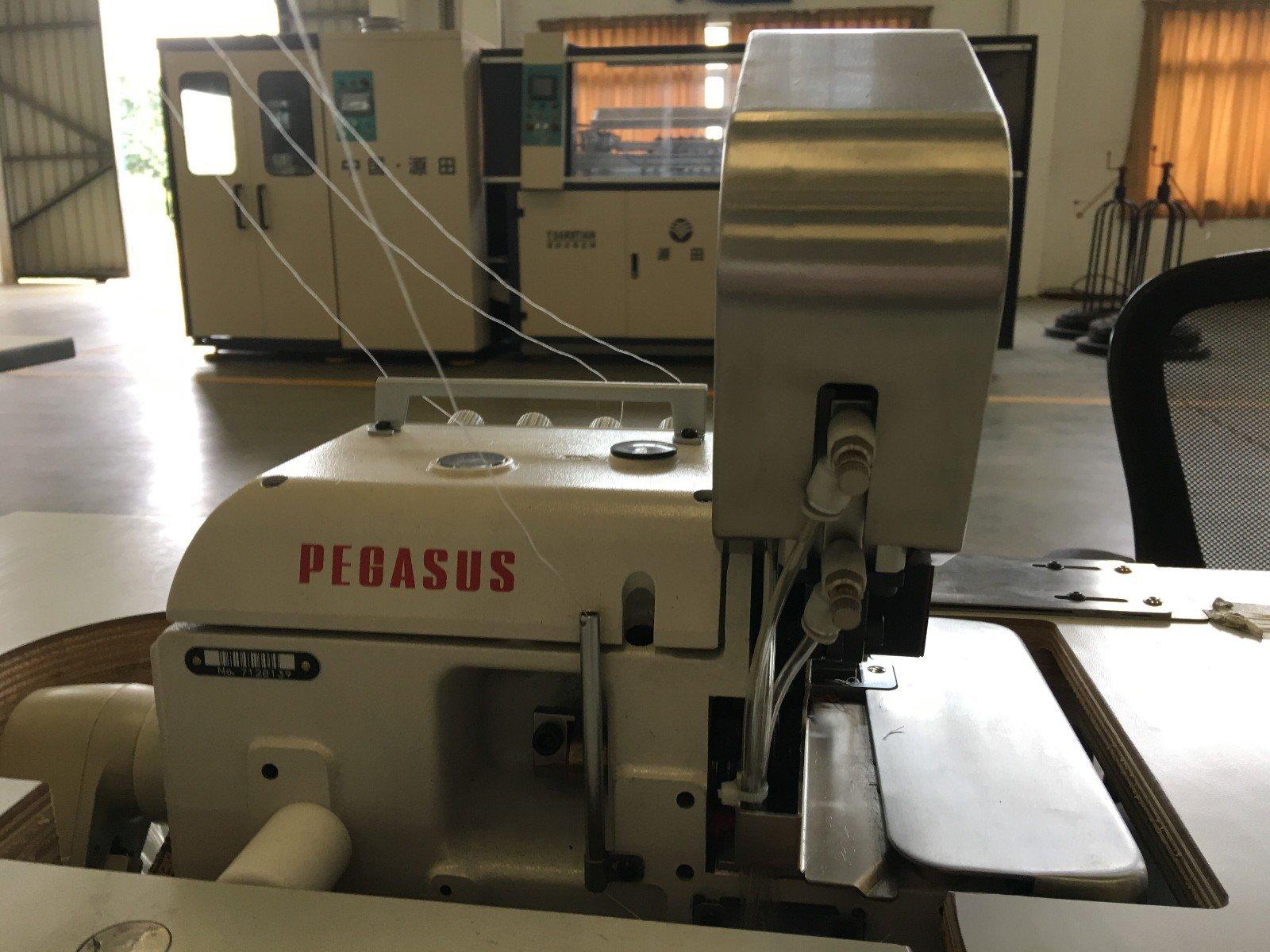

DS-8A Multi-Function High Speed Flanging Machine


This machine is mainly used for flanging mattress panel and over-thick fabric. It can also sew non-woven fabric together with the panel.


Features:


1. Japanese Pagasus sewing head.

2. Double straight needle design.

3. With auto lubrication system ensuring sufficient lubrication;With cartridge oil filter, easy for replacement & cleaning.

4. Push-button type stitch length regulator, no need for changing the cam.

5. With thread &needle cooling system, thread & needle can be lubricated and cooled by C10 oil, avoiding the thread & needle breakage as well as thread leaping.

6. Double-needle-four-thread synchronous structure and strong cloth-feeding system ensuring feeding precision and perfect seam.

7. The sewing speed is controlled with imported needle position motor and control box.

8. Equipped with pneumatic auto presser foot, equipped with special encoder to position needles. Low noise, small vibration, stable performance.



Main Technical Parameter:


Max Speed2500 Rpm
Needle Gauge19mm
Stitch Length2-5.5mm
Flanging Width30mm
Flanging Thickness90mm
LubricationShall C 10 Spindle Oil
NeedleDPX5 22#
Air Supply0.5-0.8Mpa
Total Power750W











Company Features
1. YUANTIAN MATTRESS MACHINERY CO LTD. has a rich experience in Mattress Flanging Machine production, which has long-term relationships with other companies.
2. Contact Us! YUANTIAN Mattress Machines Provides And Tailor Makes A Full Line Of flanging machine china, Double Sewing Heads Flanging Machine, Multi-function Flanging Machine With Many Special Designs. Do Feel Free To Contact Us.
3. Centering on the quality of flanging machine manufacturers, YUANTIAN MATTRESS MACHINERY CO LTD. attaches great importance on sustainable development. Inquire Online!
