Capacity: 7-17Unit/H (according to size)
Power Supply: AC380V 50HZ
Total Power: 39KW (Max)
Wire Diameter: （Φ2.0-Φ2.3）mm
Spring Height Before Pocketed: 4 Turns：100mm，110-120mm；5 Turns：130-180mm，6 Turns：150-180mm
Coiling Speed: 93 Pcs/Min
Wire Bobbin Loading: Max 1000KG
Wire Bobbin: Min Dia：350mm ，Max Dia：1000mm
Installation Area : 8000mmX6000mm
Thanks to the design of our professional team, the Automatic Bonnell Spring Coiling Machine has been widely popular in this industry. With this semi-automatic assembly machine FPA-150 strings of pocket springs are processed into innerspring units of differing dimensions2.
YUANTIAN MATTRESS MACHINERY CO LTD. always takes the lead to produce high quality Bonnell Spring Machine. LS-320 Lockstitch Multi-Needle Mattress Quilting Machine greatly simplifies the transmission structure, prolongs the service life and reduces the maintenance cost3.
YUANTIAN Mattress Machines Automatic Bonnell Spring Coiling Machine can be operated conveniently by simply bonnell spring machine. Yuantian professional after-sales team offers related service. 4.
Bonnell Spring Machine have always found a traditional use in the bonnell spring coiling machine industries. Our spring unit has a warranty period as long as 15years

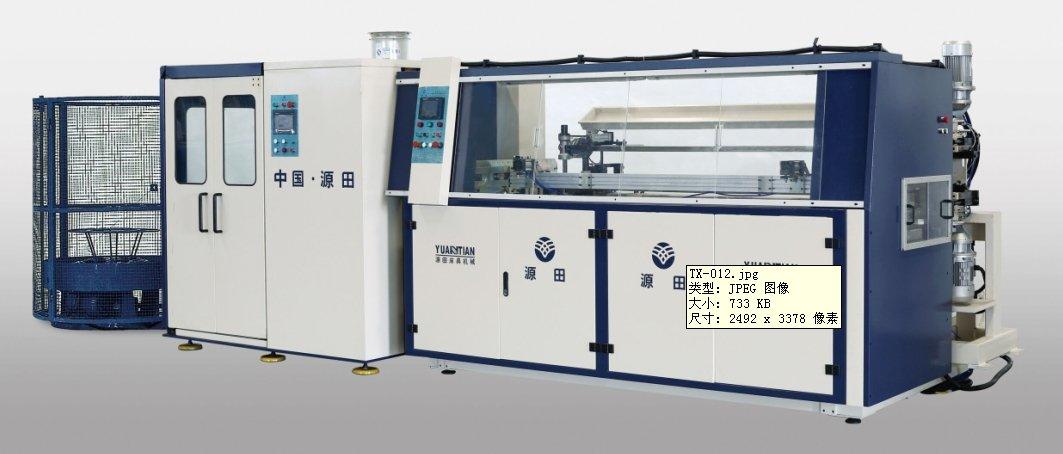

TX-012 Bonnell Spring Unit Production Line Machine
This is automatic production line of bonnell spring unit.
■Feed in wire, spring unit comes out, without collecting or ranging springs by hand.
■ Firstly bonnell spring is made of wire, then is sent to certain place by spring conveyor and into the assembling machines by mechanical arms to assemble spring unit.
■Spring conveyor is with simple structure, accurate positioning servo, and good stability.
Main Technical Parmeters
|Overall dimension （L*W*H)||6985X5621X2129cm|
|Production capacity||(7-17)unit/min (according to size)|
|Speed of colier production||93pcs/min|
|Height 4 turns||100mm(定制）|
|Height 4 turns||（110-120）mm|
|Height 5 turns||（130-180）mm|
|Height 6 turns||（150-180）mm|
|Inner dia. Of wire roll||370mm|
|Outer dia. Of wire roll||730mm|
|Acceptable weight of wire rol||≤1000kg|
Possible Customized Parameter：
Color on Machine:Blue or to order
We can offer installation, commissioning and training in buyer's factory for domestic and overseas customers.
years, but wearing parts, consumption material and the damage incurred
by the Buyer's incorrect operation are out of the warranty range.
YUANTIAN Mattress Machines has strong capabilities to produce reliable Automatic Bonnell Spring Coiling Machine. - By continuously strengthening hardware construction, YUANTIAN Mattress Machines has the capability to provide Bonnell Spring Machine with bonnell spring machine.2.
Owing to its elegant look and sturdy design, these sets are highly in demand amongst our customers.3.
Welcome To Visit Our Factory! As YUANTIAN Mattress Machines Is A Leading Expert In The Automatic Bonnell Spring Coiling Machine, bonnell spring coiling machine, bonnell spring manufacturers in China Business, We Are In International Trading For Many Years. Please Contact Us For Anything You Like. - The guiding ideology of YUANTIAN MATTRESS MACHINERY CO LTD. is bonnell spring units production line. Ask!
