FOSHAN YUANTIAN MATTRESS MACHINERY CO.,LTD



Professional Mattress Machinery Manufacturer in China Since 1982

Home  >  Buy Why Us Bulk  >  Best Company strength  >

heads Double Sewing Heads Flanging Machine heavyduty double YUANTIAN Mattress Machines Brand

heads Double Sewing Heads Flanging Machine heavyduty double YUANTIAN Mattress Machines Brand

Heads Double Sewing Heads Flanging Machine heavyduty double YUANTIAN Mattress Machines Brand

Application:
Mattress, Sofa, Cushion
Model:
DS-5C
Brand Name:
YUANTIAN
Place of Origin:
Guangdong, China (Mainland)
Certificates:
ISO9001 / CE
Minimum Order:
1 Set
Price Term:
FOB, C&F, CIF (optional)
Payment Terms:
 L/C T/T
Packaging Details:
Wooden Case
Delivery:
10 - 30 work days
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Flanging width range: 50-500mm
Flanging speed: 15-30 m/min
Needle Model: RM-6 22-23#
Power Supply: 220V 50HZ, single phase
Total Power: 550W
Air Pressure: (0.5-0.8)Mpa
Stitch length: (2-5)mm
Max Rotating Speed: 2500RPM
Flanging Width: 30mm
Flanging Thickness: (30-70)mm
Lubrication: SHELL C 10 Spindle oil
Needle Gauge: 2.0,3.0,5.0mm
Sewing Thickness: ≤25mm
Company Advantages
1. It is manufactured based on advanced machines. Owing to its various quality attributes, provided Double Sewing Heads Flanging Machine is highly appreciated by YUANTIAN Mattress Machines clients.
2. YUANTIAN MATTRESS MACHINERY CO LTD.'s customer service always works on a professional level. The manufacturing is carried out in high standard workshops
3. It is easy to operate and maintain. Mattress Flanging Machine,Multi-function Flanging Machine has excellent quality and Mattress Flanging Machine feature.
4. Its automation makes it possible for labor saving. Verified by the production, flanging machine china,Heavy Duty Mattress Flanging Machine features reasonable structure, high efficiency and notable economic benefits.
5. With Double Sewing Heads Flanging Machine features and key characteristics, flanging machine manufacturers can well suit customer's application requirements. It has been ISO 9001 and CE certified

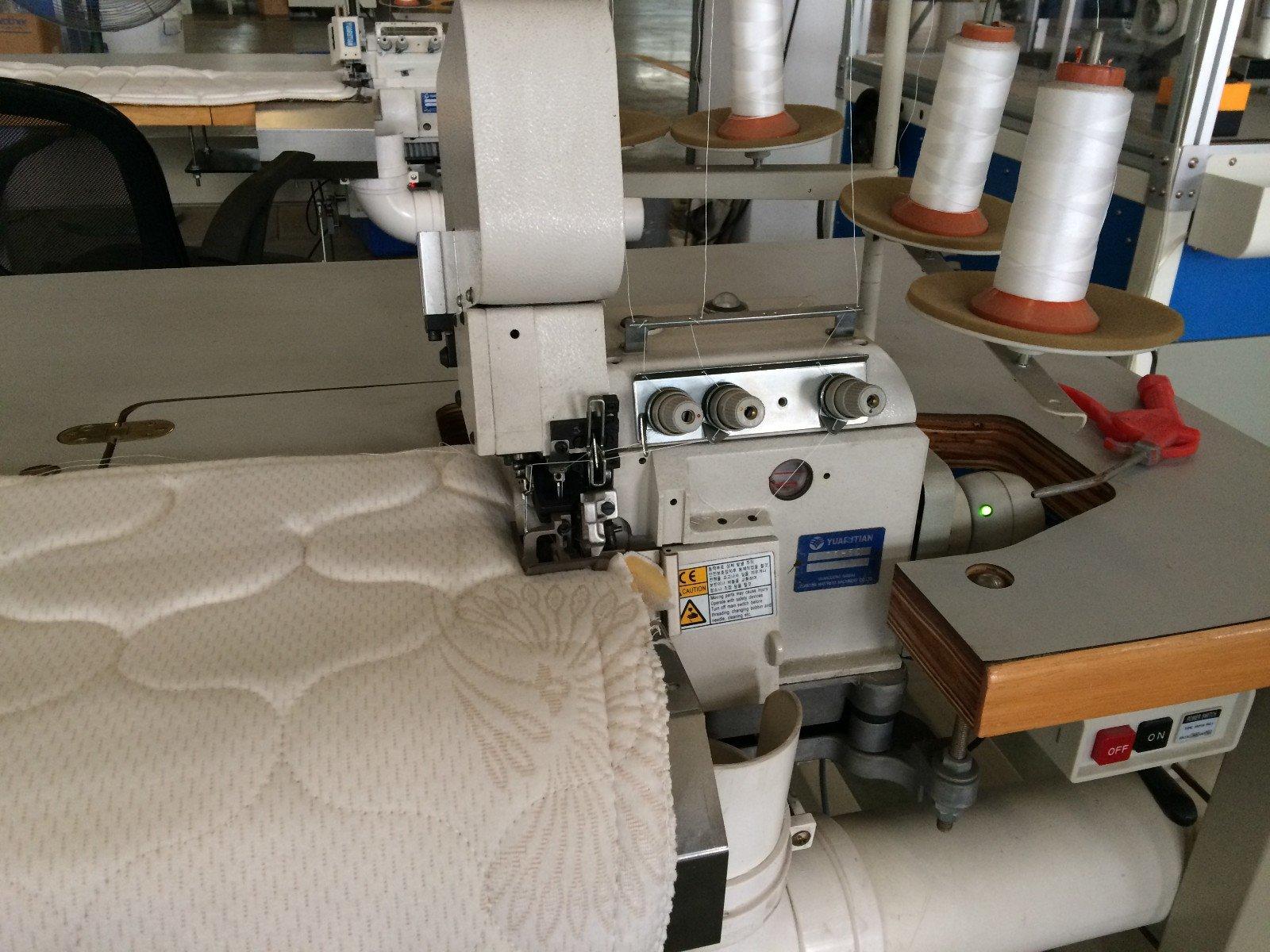

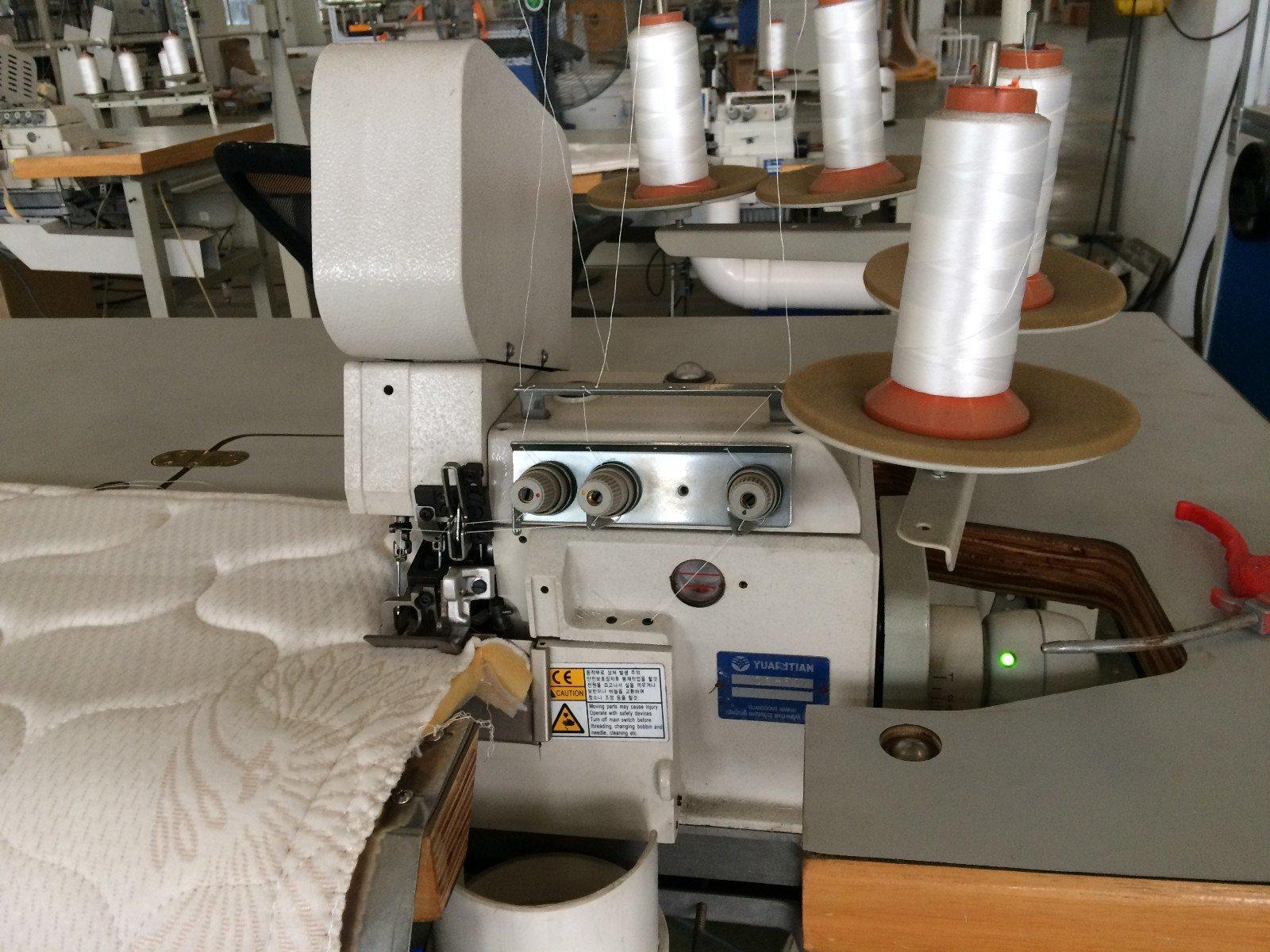

DS-5C Mattress Flanging Machine

This machine is mainly used for flanging mattress panel and over-thick fabric.It can alsi sew non-woven fabric together with the panel.


1.Double straight needle design.
2.With auto oiling system ensuring sufficeient lubrication;with cartridge oil filter,easy for replacement & cleaning.
3.Push-button type stitch length regulator,no need for changing the cam.
4.With thread & needle cooling system,thread&needle can be lubricated and cooled by C10 oil,avoiding the thread & needle breakage as thread leaping.
5.Double-needle-five-thread synchronous structure and strong cloth-feeding system ensuring feeding pecision and perfect seam.
6.The sewing speed is controlled with imported needle position motor and control box.
7.Equipped with pneumatic auto presser foot,equipped with special encoder to position needles.Low noise,small vibration,stable perfomance.



Main Technical Parameters:


Max Rotating Speed: 2500RPM
Flanging Width: 30mm
Flanging Thickness:30-70mm
Stitch Length:2-5mm
Lubrication: SHELL C 10 Spindle oil
Needle Model: RM-6 22-23#
Needle Gauge: 2.0,3.0,5.0mm
Air Pressure:0.5-0.8Mpa
Total Power: 550W
Power Supply: Single-Phase, 220V, 50Hz
