Double Sewing Heads Flanging Machine sewing flanging Mattress Flanging Machine YUANTIAN Mattress Machines Brand

Double Sewing Heads Flanging Machine sewing flanging Mattress Flanging Machine YUANTIAN Mattress Machines Brand

Application:
Mattress, Sofa, Cushion
Model:
DS-5C
Brand Name:
YUANTIAN
Place of Origin:
Guangdong, China (Mainland)
Certificates:
ISO9001 / CE
Minimum Order:
1 Set
Price Term:
FOB, C&F, CIF (optional)
Payment Terms:
 L/C T/T
Packaging Details:
Wooden Case
Delivery:
10 - 30 work days
Flanging width range: 50-500mm
Flanging speed: 15-30 m/min
Needle Model: RM-6 22-23#
Power Supply: 220V 50HZ, single phase
Total Power: 550W
Air Pressure: (0.5-0.8)Mpa
Stitch length: (2-5)mm
Max Rotating Speed: 2500RPM
Flanging Width: 30mm
Flanging Thickness: (30-70)mm
Lubrication: SHELL C 10 Spindle oil
Needle Gauge: 2.0,3.0,5.0mm
Sewing Thickness: ≤25mm
Company Advantages
1. Apart from this, our offered fixtures can be availed by our clients at feasible prices.
2. Moreover, YUANTIAN MATTRESS MACHINERY CO LTD. has a separate quality team who scrutinize all our products to ensure that all they reinforce the highest standards of productivity, reliability and quality. This machine needs only one operator and there is no need for him to move around or overturn the mattress manually. Thus higher efficiency and less labor is realized
3. You can count on lifetime technical support by phone from a team of reps with hands-on machine experience. Movable pocket spring buffer/Quickly & expediently to feed pocket springs.

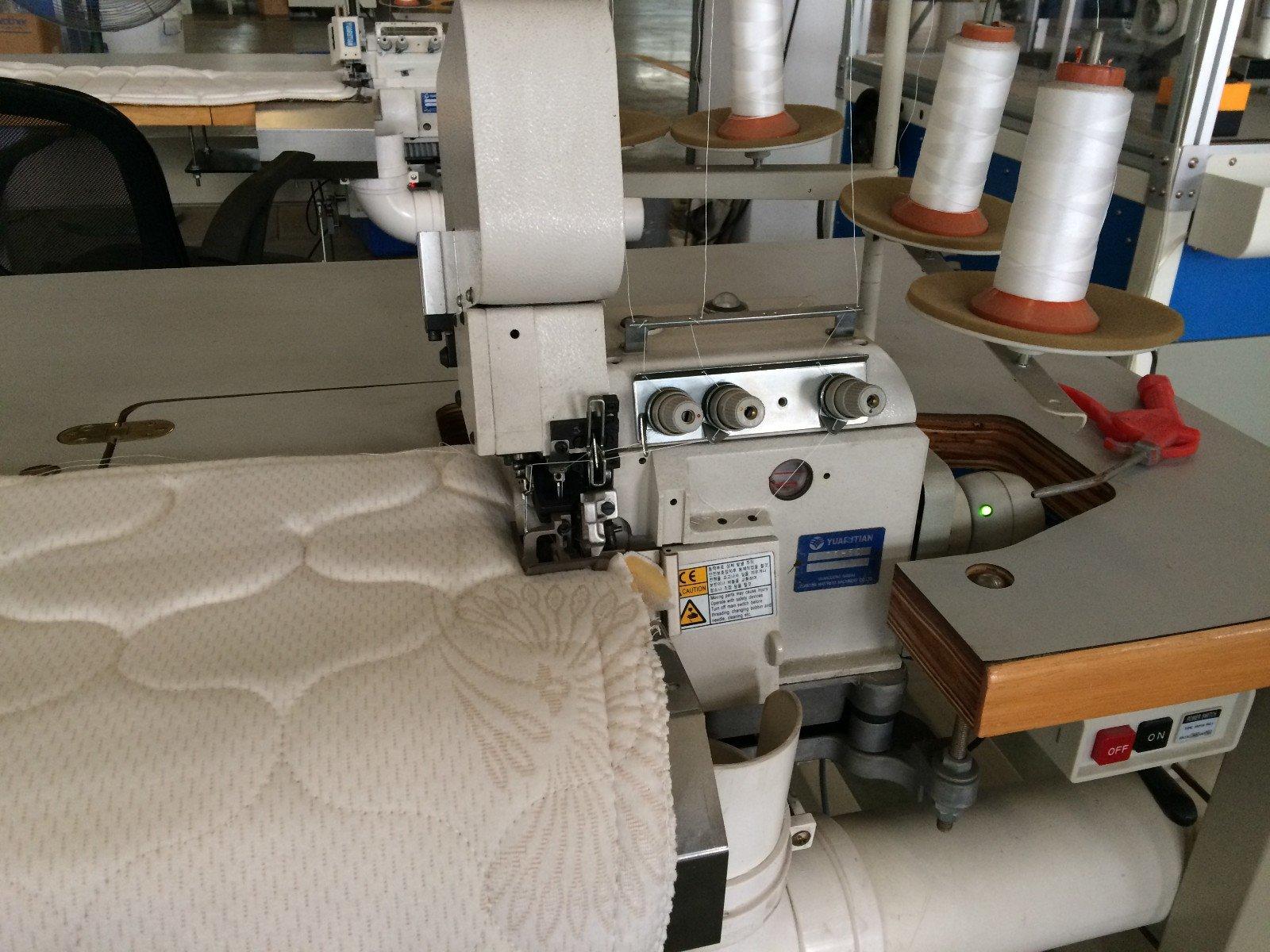

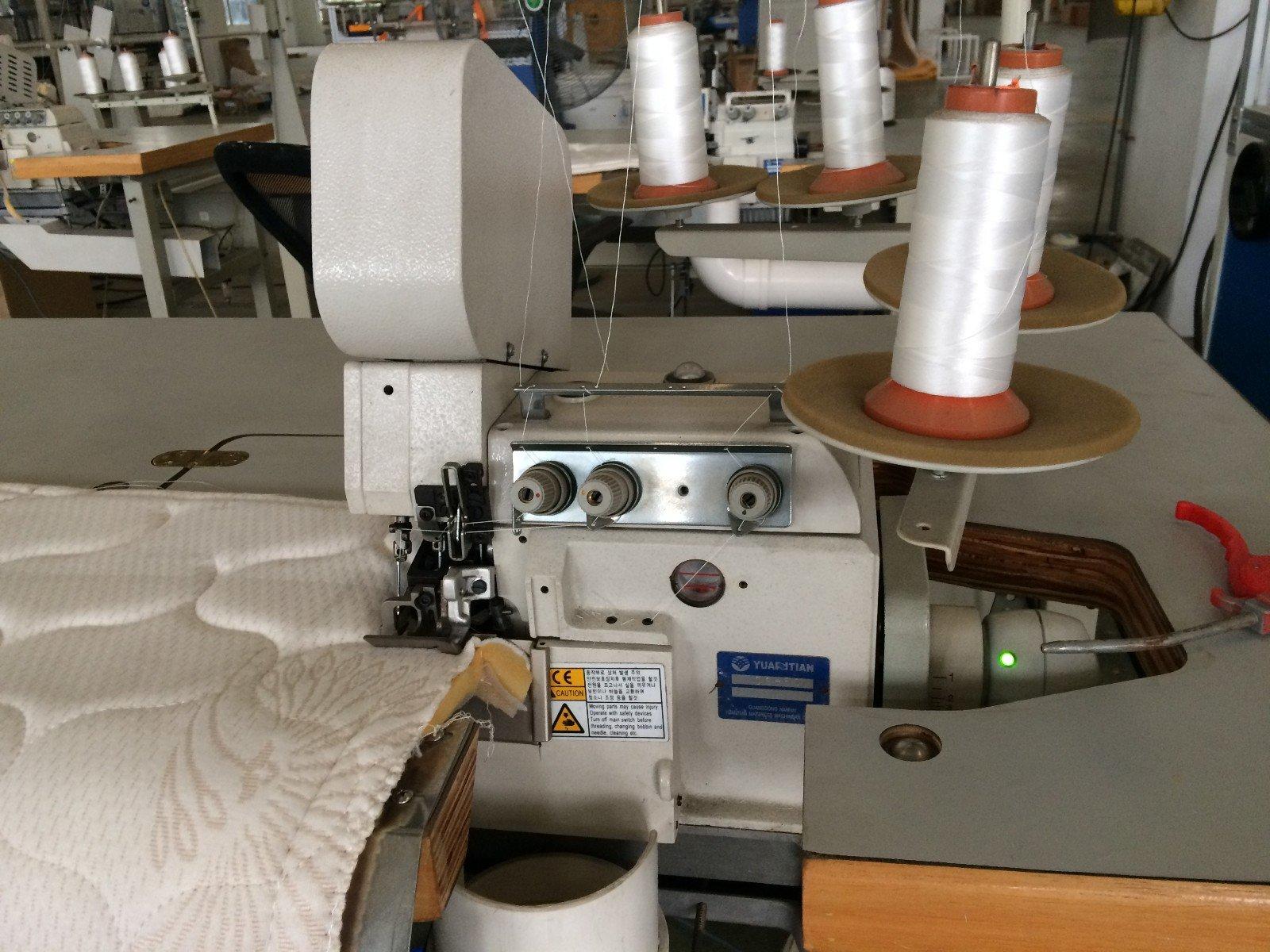

DS-5C Mattress Flanging Machine

This machine is mainly used for flanging mattress panel and over-thick fabric.It can alsi sew non-woven fabric together with the panel.


1.Double straight needle design.
2.With auto oiling system ensuring sufficeient lubrication;with cartridge oil filter,easy for replacement & cleaning.
3.Push-button type stitch length regulator,no need for changing the cam.
4.With thread & needle cooling system,thread&needle can be lubricated and cooled by C10 oil,avoiding the thread & needle breakage as thread leaping.
5.Double-needle-five-thread synchronous structure and strong cloth-feeding system ensuring feeding pecision and perfect seam.
6.The sewing speed is controlled with imported needle position motor and control box.
7.Equipped with pneumatic auto presser foot,equipped with special encoder to position needles.Low noise,small vibration,stable perfomance.


Main Technical Parameters:


Max Rotating Speed: 2500RPM
Flanging Width: 30mm
Flanging Thickness:30-70mm
Stitch Length:2-5mm
Lubrication: SHELL C 10 Spindle oil
Needle Model: RM-6 22-23#
Needle Gauge: 2.0,3.0,5.0mm
Air Pressure:0.5-0.8Mpa
Total Power: 550W
Power Supply: Single-Phase, 220V, 50Hz
