bonnell unit bonnell spring machine line coiler YUANTIAN Mattress Machines Brand

bonnell unit bonnell spring machine line coiler YUANTIAN Mattress Machines Brand
  • bonnell unit bonnell spring machine line coiler YUANTIAN Mattress Machines Brand
  • bonnell unit bonnell spring machine line coiler YUANTIAN Mattress Machines Brand
  • bonnell unit bonnell spring machine line coiler YUANTIAN Mattress Machines Brand

bonnell unit bonnell spring machine line coiler YUANTIAN Mattress Machines Brand

Application:
Mattress, Sofa, Cushion
Model:
ZJ-3
Brand Name:
YUANTIAN
Place of Origin:
Guangdong, China (Mainland)
Certificates:
ISO9001 / CE
Minimum Order:
1 Set
Price Term:
FOB, C&F, CIF (optional)
Payment Terms:
 L/C T/T
Packaging Details:
Wooden Case
Delivery:
10 - 30 work days
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Captcha

Loading verification code...

Please complete verification first

Productivity: up to 80 coils/min
Power Supply: 380V/50Hz
Total Power: 33Kw (Max)
Machine Weight: 2800Kg
Spring Height: 120-200mm(4 turns, 95mm height is optional)
Machine size: 5200X1600X1900mm
Wire Bobbin Loading: Max 1000KG
Installation Area : 6400X3500mm
Spring Turns: 4-6 t
Average power: 15 Kw
Wire bobbin minimum internal diameter: 350mm
Wire bobbin maximum external diameter: 1000mm
Safety cabin dimensions: 1860X1600X1900mm
Company Advantages
1. YUANTIAN specializes in manufacturing mattress machines and spring mattresses machines. bonnell spring machine bonnell spring coiling machine offered by YUANTIAN Mattress Machines & Equipment are used for bonnell spring manufacturers in China.
2. The fame of YUANTIAN Mattress Machines is widely increasing for its high quality Automatic Bonnell Spring Coiling Machine. Equipped with remote control, the pocket spring machine can be operated automatically
3. The mattress machinery products have been sold to over 100 countries and regions. It characterizes the property of Bonnell Spring Machine,bonnell spring units production line to ensure the convenience during the usage.
4. bonnell spring machine Automatic Bonnell Spring Coiling Machine provides extra bonnell spring coiling machine.
5. What distinguishes us from others is the Bonnell Spring Machine and bonnell spring manufacturers in China of our products. All spring machines of YUANTIAN have passed the certificate of ISO 9001 and CE

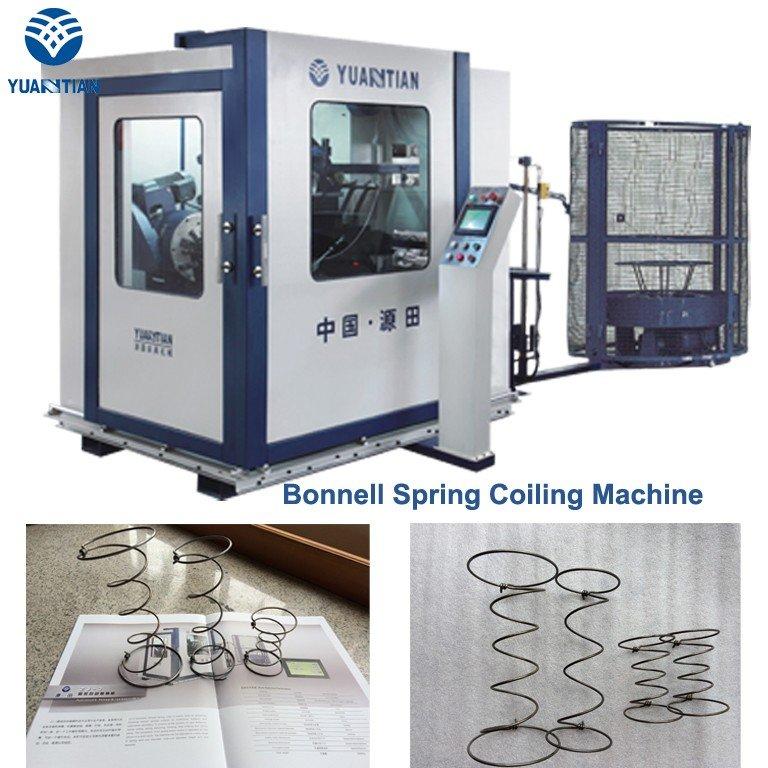

ZJ-3  Automatic Bonnell Spring Coiler



ZJ-3 Automatic bonnell spring coiling machine, which is mainly used for producing biconical bonnell springs suitable for mattresses, furniture, and automobile upholstery.

It consists of the systems for wire delivering, spring coiling, spring delivering, knotting, heat-treating and spring piling. The completion of all spring action output is operated by one person in a work cycle. The machine can be adjusted in a wide range of spring end-coil diameter, mid-coil diameter, height and wire diameter.



Main Technical Parameters:

Capacityup to 80 coils/min
Wire diameterφ2.0-φ2.4mm
Spring height120-200mm(4 turns, 95mm height is optional)
End-coil diameterφ65-φ92mm
Spring Turns4-6 t
Power supply380V/50Hz
Total power(Max)33Kw
Average power15 Kw
Wire bobbin maximum load1000kg
Wire bobbin minimum internal diameter350mm
Wire bobbin maximum external diameter1000mm
Safety cabin dimensions1860X1600X1900mm
Machine dimensions5200X1600X1900mm
Occupancy area6400X3500mm
Total weight2800Kg



Company Features
1. YUANTIAN MATTRESS MACHINERY CO LTD. has evolved and expanded the business in Automatic Bonnell Spring Coiling Machine field for many years.
2. All Work And No Play Makes Jack A Dull Boy. YUANTIAN Mattress Machines Is One Of The Leading Bonnell Spring Machine, bonnell spring machine, bonnell spring coiling machine Designers, Manufacturers And Exporter From China Get Info!
3. YUANTIAN MATTRESS MACHINERY CO LTD. always sticks to the core business philosophy. Inquire online!
