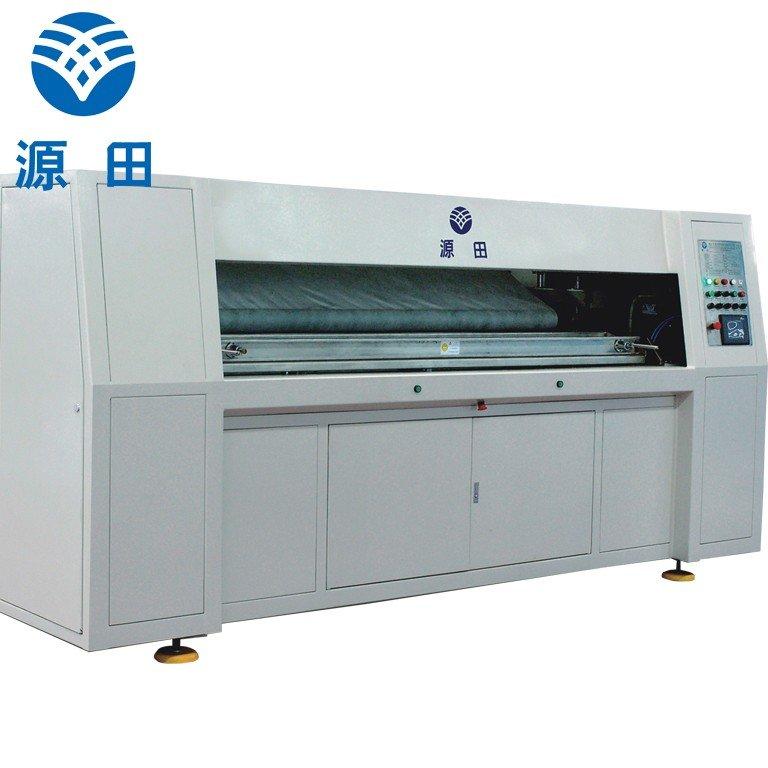

Automatic Pocket Spring Assembling Machine pocket Pocket Spring Assembling Machine assembling YUANTIAN Mattress Machines

Automatic Pocket Spring Assembling Machine pocket Pocket Spring Assembling Machine assembling YUANTIAN Mattress Machines
  • Automatic Pocket Spring Assembling Machine pocket Pocket Spring Assembling Machine assembling YUANTIAN Mattress Machines
  • Automatic Pocket Spring Assembling Machine pocket Pocket Spring Assembling Machine assembling YUANTIAN Mattress Machines
  • Automatic Pocket Spring Assembling Machine pocket Pocket Spring Assembling Machine assembling YUANTIAN Mattress Machines
  • Automatic Pocket Spring Assembling Machine pocket Pocket Spring Assembling Machine assembling YUANTIAN Mattress Machines
  • Automatic Pocket Spring Assembling Machine pocket Pocket Spring Assembling Machine assembling YUANTIAN Mattress Machines

Automatic Pocket Spring Assembling Machine pocket Pocket Spring Assembling Machine assembling YUANTIAN Mattress Machines

Air Supply
(0.8-1.2)Mpa
Application:
Mattress, Sofa, Cushion
Model:
DN-3A
Brand Name:
YUANTIAN
Place of Origin:
Guangdong, China (Mainland)
Certificates:
ISO9001 / CE
Minimum Order:
1 Set
Price Term:
FOB, C&F, CIF (optional)
Payment Terms:
 L/C T/T
Packaging Details:
Wooden Case
Delivery:
10 - 30 work days
Spring Type: pocket spring rows
Non Woven Fabric: 70g per square meter, or upper
Size: 3700×3060×1800mm
Packing: 3900*1900*2010mm
Eco-Friendly: Eco-Friendly
Warranty: 1 year
Zones: to customized
Capacity: 6-8pcs mattress per hour (1500*1900mm mattress unit)
Overall Dimension: 3700×3060×1800mm
Power Supply: 3-Phase, 380V, 50HZ
Air Consumption: 0.1 m3/min
Total Power: 9.09KW
Wire Diameter: Ф1.8〜Ф2.3mm
Mid-Coil Diameter: Ф55〜Ф75mm
Air Pressure: (0.8-1.2)Mpa
End-Coil Diameter: (Φ40-Φ80)mm
Spring Shape: Barrel, Cylindrical
Gluing Width: ≤2100mm
Outer Diameter Of Non-Woven Fabric Reel: ≤Φ750mm
Machine Weight: 1903Kg
Spring Height: 120-180mm, 80-120mm((160-220),(90-120),(60-90)mm
Company Advantages
1. Each raw material is carefully selected. DN-4A is exploited for the automatic pocket spring machine, They form a self-contained, high efficiency and high quality product line of mattress
2. YUANTIAN Mattress Machines has gained the trust of the clients around the world. Because of mechanical protection devises and safety switches, the machine guarantees maximum safety to operator
3. Automation of Pocket Spring Assembling Machine is conceived for Automatic Pocket Spring Assembling Machine through Spring Assembling Machine. SA-330 High-speed Multi-needle Mattress Quilting Machine is a new high efficiency and high automatic equipment developed by our company.

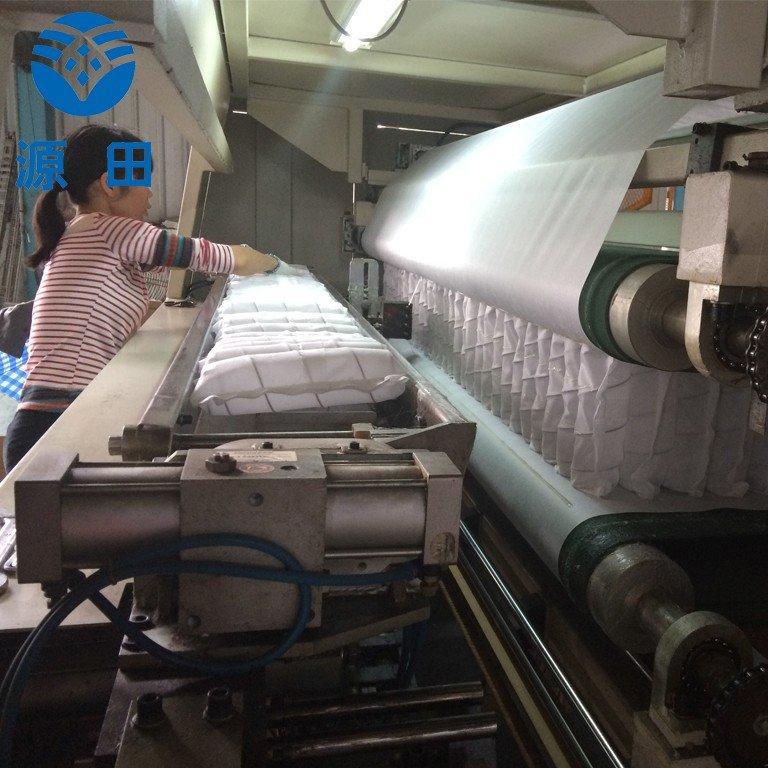

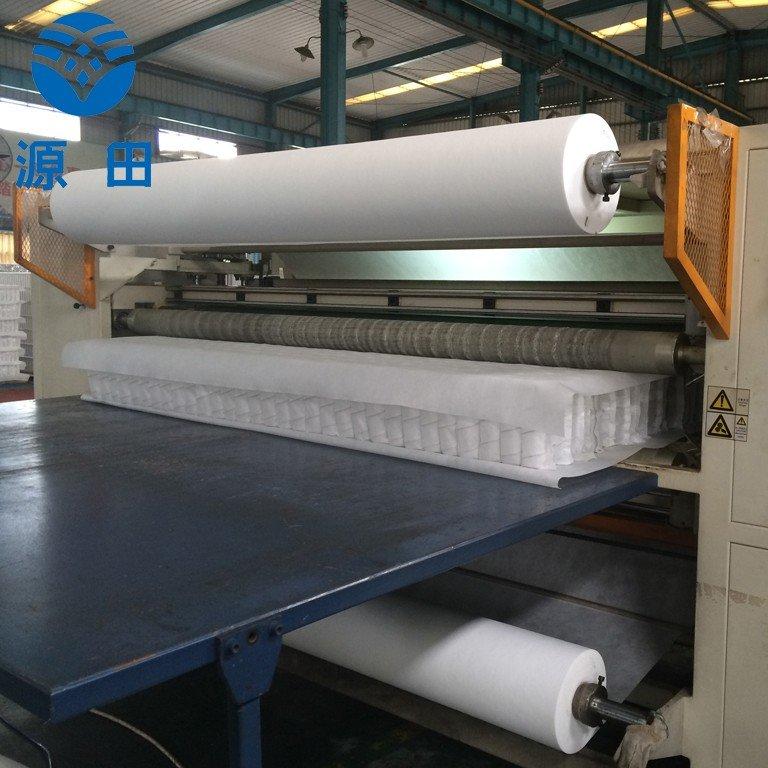

This machine is mainly used for assembling pocket-spring rows, upper and lower non-woven fabric to pocket-spring unit and cut off automatically.

Technical Features:
1、Controlled with PLC, high-automatic and stable performance.
2、Suitable to assemble barrel or cylindrical pocket springs; parallel or offset assembly according to different requirements.
3、Continuous or intermittant glue-extruding mode as per different requirement;save up the glue cost when adopting intermittant mode.
4、Assembling with or without upper and lower non-woven cover is optional.
5、Equipped with moderm for the convenience of remote control, supervision, program modification and update.


Main Technical Parmeters
Spring Shape: Barrel, Cylindrical
Gluing Width: ≤2100mm
Production Speed: 6-7Pcs/H(1.5×1.9m)
End-Coil Diameter:Φ40-Φ80mm
Spring Height: 120-180mm, 80-120mm(160-220),90-120),60-90mm
Outer Diameter Of Non-Woven Fabric Reel: ≤Φ750mm
Non-Woven Fabric Reel Weight: ≤150Kg
Power Supply: 3-Phase, 380V, 50HZ
Air Consumption: 0.1 m3/min
Air Pressure:0.8-1.2Mpa
Total Power: 9.09KW
Overall Dimension: 3700×3060×1800mm
Machine Weight: 1903Kg
Packing Size3900*1900*2010mm
G.W.2235KGS








Company Features
1. Good Company On The Road Is The Shortest Cut. YUANTIAN Mattress Machines Supplies A Full Line Of Pocket Spring Assembling Machine, Automatic Pocket Spring Assembling Machine, Spring Assembling Machine In Different Styles. Inquire Online!
2. We create, revitalize, and enhance Spring Assembling Machine in a thoughtful and intelligent manner. Welcome To Visit Our Factory!
