automatic coiler machine YUANTIAN Mattress Machines Automatic Bonnell Spring Coiling Machine

automatic coiler machine YUANTIAN Mattress Machines Automatic Bonnell Spring Coiling Machine
  • automatic coiler machine YUANTIAN Mattress Machines Automatic Bonnell Spring Coiling Machine
  • automatic coiler machine YUANTIAN Mattress Machines Automatic Bonnell Spring Coiling Machine

automatic coiler machine YUANTIAN Mattress Machines Automatic Bonnell Spring Coiling Machine

Application:
Mattress, Sofa, Cushion
Model:
TX-012
Brand Name:
YUANTIAN
Place of Origin:
Guangdong, China (Mainland)
Certificates:
ISO9001 / CE
Minimum Order:
1 Set
Price Term:
FOB, C&F, CIF (optional)
Payment Terms:
 L/C T/T
Packaging Details:
Wooden Case
Delivery:
10 - 30 work days
Capacity: 7-17Unit/H (according to size)
Power Supply: AC380V 50HZ
Total Power: 39KW (Max)
Wire Diameter: (Φ2.0-Φ2.3)mm
Spring Height Before Pocketed: 4 Turns:100mm,110-120mm;5 Turns:130-180mm,6 Turns:150-180mm
Coiling Speed: 93 Pcs/Min
Wire Bobbin Loading: Max 1000KG
Wire Bobbin: Min Dia:350mm ,Max Dia:1000mm
Installation Area : 8000mmX6000mm
Company Advantages
1. We produce Automatic Bonnell Spring Coiling Machine products from various materials including bonnell spring machine, bonnell spring coiling machine and bonnell spring manufacturers in China,etc. This machine needs only one operator and there is no need for him to move around or overturn the mattress manually. Thus higher efficiency and less labor is realized.
2. YUANTIAN MATTRESS MACHINERY CO LTD. listens to the needs of customers, and our products are assured to meet the highest quality Bonnell Spring Machine standards in order to become a trusted top provider. Mattress Cutting Machine can be cut continuously, which makes the productivity more efficiency.
3. YUANTIAN Mattress Machines multi-needle high speed quilting machine is highlighted with bonnell spring units production line. All machine functions include wire feeding length, knotting, heat treatment, lubrication and self-protecting are automatically controlled.
4. unpressing offered by YUANTIAN Mattress Machines & Equipment are used in many china multi-patterns and multi-needle quilting machine supplier industries. LS-320 Lockstitch Multi-Needle Mattress Quilting Machine greatly simplifies the transmission structure, prolongs the service life and reduces the maintenance cost.


This is automatic production line of bonnell spring unit.


Features


Feed in wire, spring unit comes out, without collecting or ranging springs by hand.


Firstly bonnell spring is made of wire, then is sent to certain place by spring conveyor and into the assembling machines by mechanical arms to assemble spring unit.


Spring conveyor is with simple structure, accurate positioning servo, and good stability.



Main Technical Parmeters

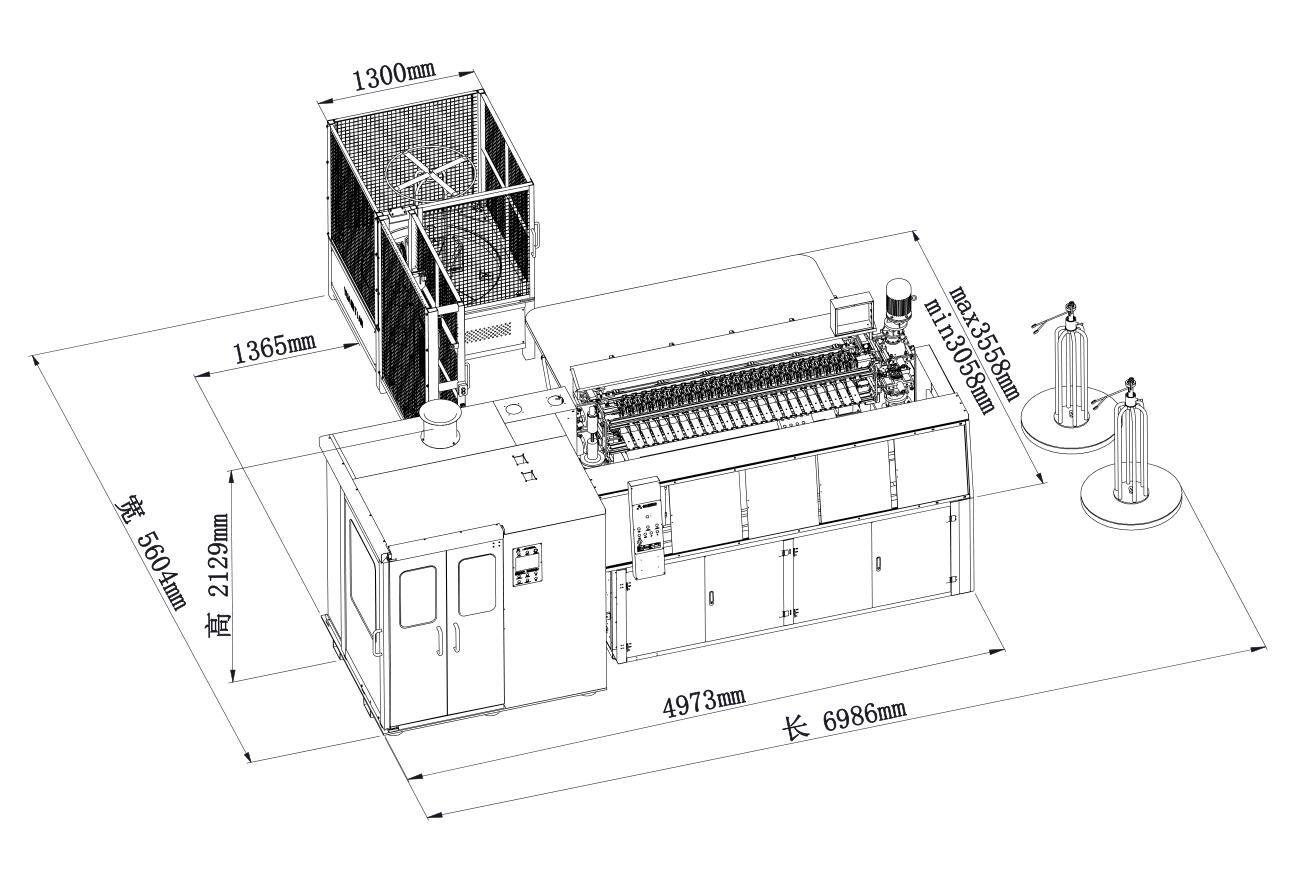

Overall dimension (L*W*H)
6985X5621X2129cm
Production capacity
(7-17)unit/min  (according to size)
Speed of colier production
93pcs/min
Total power39kW
Power supply3-Phase,380V,50Hz
Air pressure0.6Mpa
Machine weight6500Kg
End-coil diameter(Φ65-Φ90)mm
Height 4 turns100mm(定制)
Height 4 turns(110-120)mm
Height 5 turns(130-180)mm
Height 6 turns(150-180)mm
Wire diameter(Φ2.0-Φ2.4)mm
Inner dia. Of wire roll370mm
Outer dia. Of wire roll730mm
Acceptable weight of wire rol≤1000kg


Possible Customized Parameter:

Color on Machine:Blue or to order


Installation

We can offer installation, commissioning and training in buyer's factory for domestic and overseas customers.


Product Warranty

2 years, but wearing parts, consumption material and the damage incurred by the Buyer's incorrect operation are out of the warranty range.
