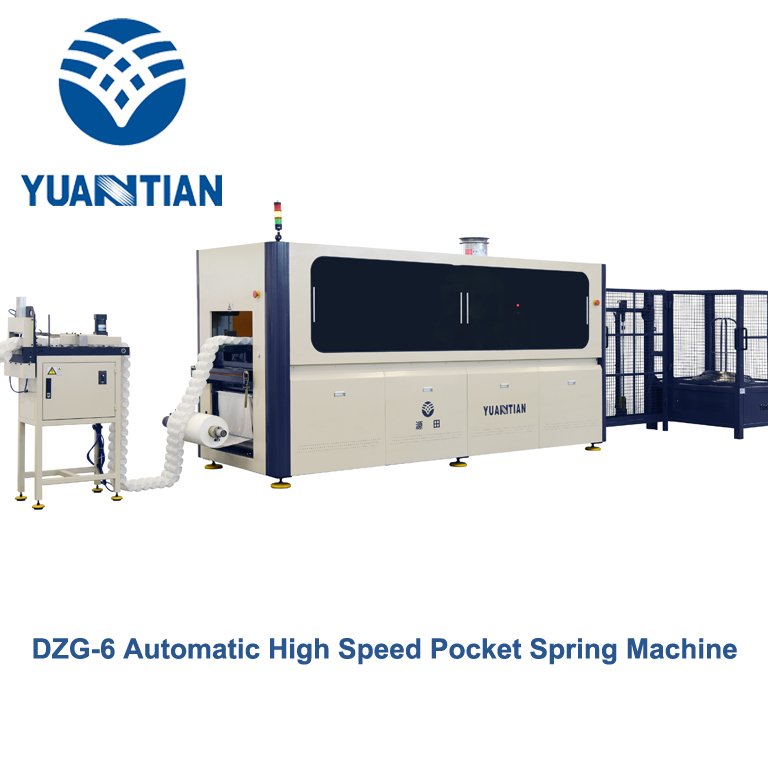

YUANTIAN Mattress Machines Brand production dzg1 Automatic Pocket Spring Machine machine pocketspring

YUANTIAN Mattress Machines Brand production dzg1 Automatic Pocket Spring Machine machine pocketspring
  • YUANTIAN Mattress Machines Brand production dzg1 Automatic Pocket Spring Machine machine pocketspring

YUANTIAN Mattress Machines Brand production dzg1 Automatic Pocket Spring Machine machine pocketspring

Application:
Mattress, Sofa, Cushion
Model:
DZG-6
Brand Name:
YUANTIAN
Place of Origin:
China
Certificates:
ISO9001 / CE
Minimum Order:
1 Set
Price Term:
FOB, C&F, CIF (optional)
Payment Terms:
 L/C T/T
Packaging Details:
Wooden Case
Delivery:
From the date that we get the deposit, will deliver the products within 15~30 days base on the type and the quantity of the machines you ordered
Spring Type: pocket spring
Non Woven Fabric: 70g per square meter, or upper
Size: 4026*1795*1917mm
Warranty: 1 year
Capacity: 110Pcs/min
Spring Wire Diameter: Ø55~ Ø75mm
Overall Dimension: 4026*1795*1917cm
Power Supply: 3-Phase 380V 50HZ
Total Power: 40KW
Free Spring Height: 190~250mm
Pocketed Spring Height: 150~210mm
Wire Diameter: (φ1.8—φ2.2)mm
Mid-Coil Diameter: (φ55—φ75)mm
Mid-Woven Fabric Width: 450~600mm
Non-Woven Fabric Thickness: ≥70g/㎡
Air Displacement: 0.8m³/min
Working Power: 25KW
Company Advantages
1. Latest machining techniques are used in manufacturing Automatic High Speed Pocket Spring Machine.
2. From Automatic Pocket Spring Machine to Automatic Pocket Spring Production Line, every unit machine meets rigorous standards for quality and consistency so our customers can be confident they're using the best line set on the market. Because of mechanical protection devises and safety switches, the machine guarantees maximum safety to operator.
3. Due to fascinating design, splendid finish, durability and elegance, the border coiler we offer find their use in Pocket spring coiling machine. All machine functions include wire feeding length, knotting, heat treatment, lubrication and self-protecting are automatically controlled
4. The international advanced yuantian is of spring coiling machine. The machine applies all servo transmission structure on the head, which is the most advanced technology in the world.


This high speed pocket spring coiling machine is with micro-computer NC. self-developed control system,ultrasonic welding, low noise, no pollotion, the best choice for the production of pocket spring.


Features


With digital controlled spring coiling box, all spring size can be modified by parameterized settings, without adjusting mechanism.


Modular design, easy to install and steady performance.


It adopts twice heat treatment structure, safe and reliable insulation design offers good heating treatment.


Fabric receiving device to make it easy to replace non-woven fabric, reduce waste amd save time.


Greatly simplified pocket structure with high efficiency.



Clean ultrasonic welding to save energy.


Efficient and secure automatic out-off device.


Main Technical Parmeters


Speed110Pcs/min
Overall Dimension4026*1795*1917mm
Power Supply3 Phase, 380V, 50HZ
Air Supply0.6~0.8Mpa
Air Consumption0.8 m3/min
Total Power40KW
Working Power25KW
Free Spring Height190 ~ 250mm
Pocketed Spring Height150 ~ 210mm
Wire Diameter  Ø1.8 ~ Ø2.2mm
Mid-Coil DiameterØ55~ Ø75mm
Non-Woven Fabric Width450 ~ 600mm
Non-Woven Fabric Thickness≧70g/㎡


Possible Customized Parameter:1.Color on Machine   2.Blue or to order


Installation

We can offer installation, commissioning and training in buyer's factory for domestic and overseas customers.


Product Warranty

2 years, but wearing parts, consumption material and the damage incurred by the Buyer's incorrect operation are out of the warranty range.


Best user experience






Company Features
1. In order to fulfill the demands of our esteemed clients, we are engaged in providing an optimum quality array of Automatic Pocket Spring Machine Automatic High Speed Pocket Spring Machine.
2. In compliance with the market set guidelines and quality norms, the entire Automatic Pocket Spring Production Line collection delivered by YUANTIAN Mattress Machines & Equipment is in tune with the latest market trends
3. Located in the heart of the Pocket spring coiling machine area, our focus is to deliver the best customer support and service in our industry. Get Info!
