Air Consumption: 0.1m3/min
Total Power: 9.0kW
Air Pressure: 0.8～1.2MPa
Spring Shape: Barrel and Cylindrical Shape
Spring Height: 120～220mm
Power supply(customize): 3Ph 380V 50Hz
Productivity (spring diameter 65mm): Pocket spring unit，15～20 pcs/h
Spring Unit Width: ≤2100mm
Spring Mid-coil Diameter: （50～70）mm
Non-woven Width: 700～2100mm
Non-woven Size: Outer Diameter≤750mm，weight≤150Kg
The products and services offered by us are available with customization, so that our clients can avail these as per their specific requirements. With this semi-automatic assembly machine FPA-150 strings of pocket springs are processed into innerspring units of differing dimensions2.
This Automatic High Speed Pocket Spring Machine is made in a sophisticated production unit and is impeccable in terms of finish. DN-4A is exploited for the automatic pocket spring machine, They form a self-contained, high efficiency and high quality product line of mattress3.
Unique Automatic Pocket Spring Production Line structure to ensure Automatic Pocket Spring Machine. Movable pocket spring buffer/Quickly & expediently to feed pocket springs.4.
Because of mechanical protection devises and safety switches, the machine guarantees maximum safety to operator, We Can Customize All Sorts Of unit machine, Pocket spring coiling machine, spring coiling machine According To Your Special Demands.5.
The parameters such as spring unit size, helical wire diameter, end coil diameter, spring height can be set within a certain range, YUANTIAN Mattress Machines Is An International Company Specialized In The Manufacture And Export Of border coiler.

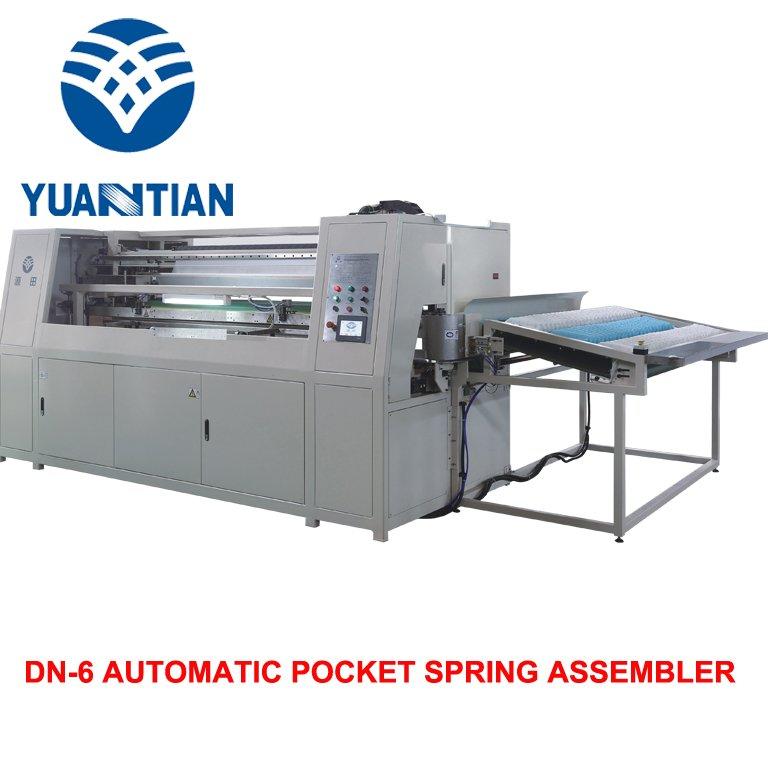

DN-6 Automatic Pocket Spring Assembling Machine

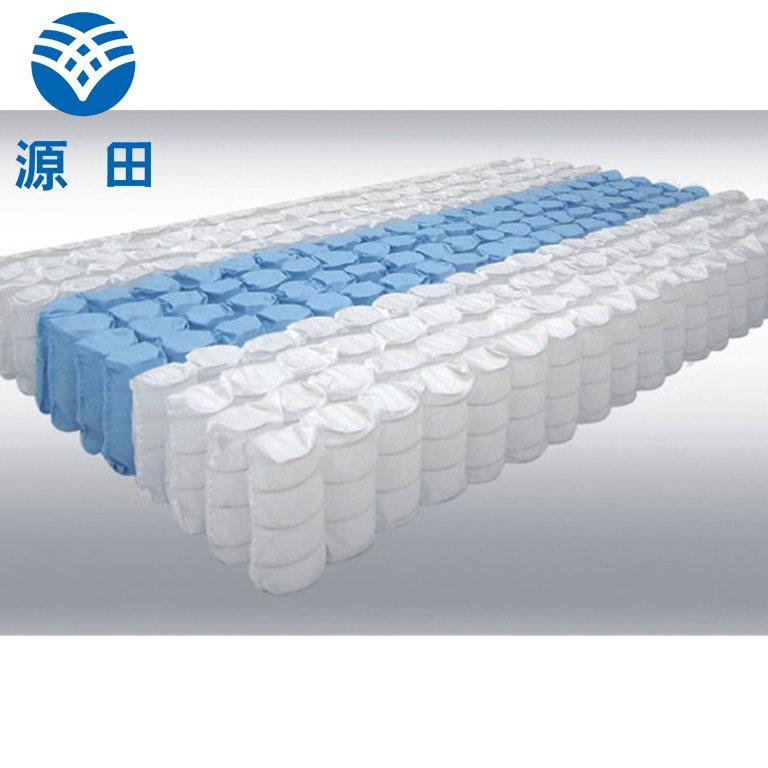

Digital control pocket spring assembling machine, which is used for assembling pocket spring rows with or without non-woven fabric covers.
Operator just needs simply and continuously to put pocket spring rows onto the conveyor device. The machine will automatically deliver, reorganize springs, spray the glue, press and join the spring rows until a complete spring unit is finished.
It will also cut the pocket spring unit to the set size automatically ad push it out.
During the whole process, the operator does not need to put the spring rows in good order. The width of pocket spring unit is simply adjusted by the wheel adjustment structure and clamping belt speed. Conveyor belt position is adjusted electrically by gear motor jogging, in order to adapt to different pocket spring height accordingly. This has simplified the conversion procedure, increased productivity and saved labor. it will be the most ideal and popular equipment for pocket spring mattress production.
Main Technical Parameters
|Spring Shape||Barrel and Cylindrical Shape|
|Spring Unit Width||≤2100mm|
|Productivity||Pocket spring unit，15～20 pcs/h|
|Spring Mid-coil Diameter||（f50～f70）mm|
|Non-woven Size||Outer Diameter≤f750mm, weight≤150Kg|
|Power Supply||3Ph 380V 50Hz|
