Wholesale lockstitch multineedle quilting machine for mattress YUANTIAN Mattress Machines Brand

Wholesale lockstitch multineedle quilting machine for mattress YUANTIAN Mattress Machines Brand

Application:
Mattress, Sofa, Cushion
Model:
DZHF-1G
Brand Name:
YUANTIAN
Place of Origin:
Guangdong, China (Mainland)
Certificates:
ISO9001 / CE
Minimum Order:
1 Set
Price Term:
FOB, C&F, CIF (optional)
Payment Terms:
 L/C T/T
Packaging Details:
Wooden Case
Delivery:
10 - 30 work days
Productivity: 40-120m/h
Overall Dimension: 10500x4530x2050mm
Power Supply: 3-phase,380V,50Hz
Total Power: 8.8KW
Machine Weight: 3500KG
Needle type: 130/21
Stitch length: 2-6mm
Speed: 2600Rpm
Cutting Width: ≤2350mm
Cutting Thickness: ≤70mm
Company Advantages
1. These products are available in various dimensions and patterns as per the varied requirements of clients.
2. YUANTIAN Mattress Machines develops with the main motto of providing the quality products & satisfying customers. The machine applies all servo transmission structure on the head, which is the most advanced technology in the world
3. LS-320 Lockstitch Multi-Needle Mattress Quilting Machine greatly simplifies the transmission structure, prolongs the service life and reduces the maintenance cost, YUANTIAN Mattress Machines Has Rich Experience In Manufacturing quilting machine for mattress, quilting machine for mattress price.
4. The stitch quilting machine for mattress is made of the finest Border Side Stitching Machine for extra strength and wear. Our products have been exported to countries all around the world.
5. With our own development department, mould-making facilities and our extensive tape edge quilting machine for mattress experience, we can offer you professional single needle quilting machine solutions within a short time. The Mattress Quilting Machine of YUANTIAN offers mattress manufactures the advantage high speed heavy duty stitching coupled with Computer Control ensuring simple operation.

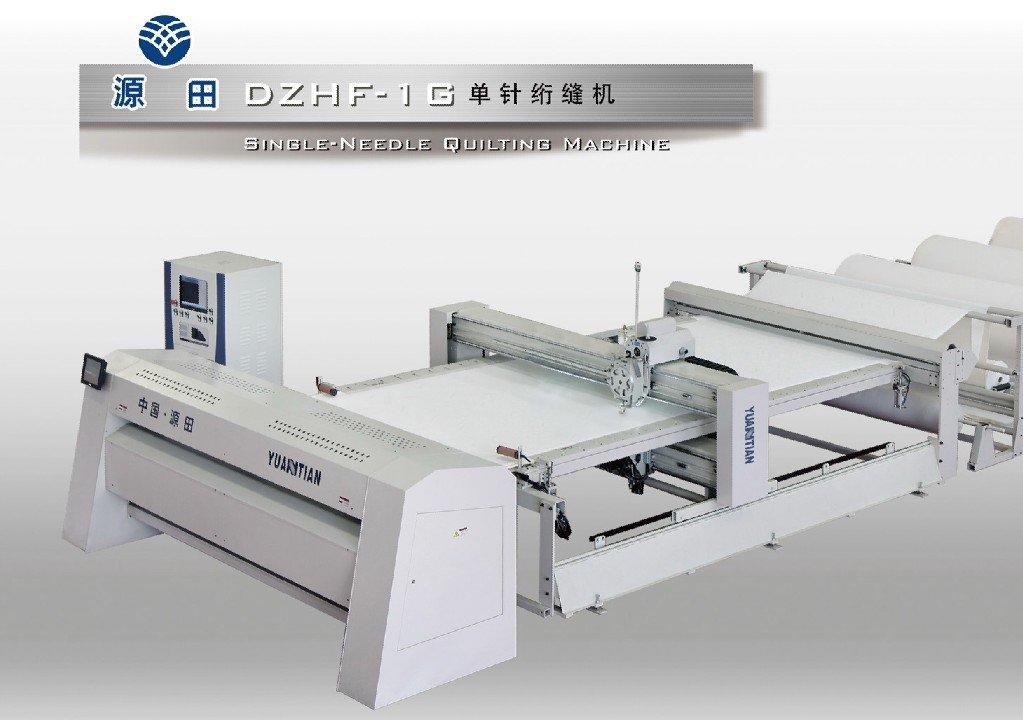

DZHF-1G  Single Needle Mattress Quilting Machine


1. Outsize rotary shuttle, random-span quilting, and contactless thread breakage detecting technology. quilting repairing by simply clicking on the touch screen.


2.With WINDOWS XP system. can sew all kinds of complicated patterns.


3.3600 tack-and-jump quilting, 100 trillion stitches memory, up to 10,000 patterns storage.


4.Equipped with functions such as output counting, total output counting, pattern effect display, processing locus display, thread auto-cutting, needle auto-stop when thread-breakage,etc.


5.Online vector angle correction and return parameter correction.


6.This panel sewing machine adopted Japanese servo motors for c
ontrolling ensuring more precision.

7.Low noise, low vibration ,stable performance.


8.Professinal pattern-designing software, scanner-input patterns with BMP format, CAD method pattern designing can be randomly amended and copied.


9.Auto cloth-feeding, pulling and cutting.



Main Technical Parmeters


Quilting Width≦2350mm
Quilting Thickness≦70mm
Needle Model130/21
Stitch Length2-6mm
Gross Weight3500kgs
Rotating Speed of Needle2600RPM
Capacity40 - 120 m/h
Total Power8.8KW
Overall Dimension10500*4530*2050mm
Power Supply3-Phase, 380V, 50HZ
Single HeadYes
Single NeedleYes
Moving StyleHead Move



Possible Customized Parameter

Color on Machine: Blue or to order



Installation

We can offer installation, commissioning and training in buyer's factory for domestic and overseas customers.



Product Warranty

1 year, but wearing parts, consumption material and the damage incurred by the Buyer's incorrect operation are out of the warranty range.




















Company Features
1. YUANTIAN Mattress Machines is the partner of choice for the world’s leading brands because of our long history of delivering innovative solutions that enhance their product offering. - Only optimum class material and modern tools and technology is used in the production of our offered collection of quilting machine for mattress.
2. YUANTIAN MATTRESS MACHINERY CO LTD. is equiped with the latest machine tools to supply the customer with the most accurate components and features. YUANTIAN Mattress Machines & Equipment
3. Contact Now! YUANTIAN Mattress Machines Sincerely Want To Supply You With High Quality Mattress Quilting Machine, quilting machine for mattress price, stitch quilting machine for mattress Based On Our Professional Technology. We Look Forward To Hearing From You. - YUANTIAN Mattress Machines provides a wide range of manufacturing options for you. Get An Offer!
