OEM bonnell spring machine unit line coiler Automatic Bonnell Spring Coiling Machine

OEM bonnell spring machine unit line coiler Automatic Bonnell Spring Coiling Machine

Application:
Mattress, Sofa, Cushion
Model:
TX-011
Brand Name:
YUANTIAN
Place of Origin:
Guangdong, China (Mainland)
Certificates:
ISO9001 / CE
Minimum Order:
1 Set
Price Term:
FOB, C&F, CIF (optional)
Payment Terms:
 L/C T/T
Packaging Details:
Wooden Case
Delivery:
10 - 30 work days
Productivity: 6-15 Unit/H (according to size)
Power Supply: AC380V  50HZ
Total Power: 38KW (Max)
Free Spring Height: 5 Turns:130-180mm,6 Turns:150-180mm
Wire Diameter: (Φ2.0-Φ2.4)mm
Coiling Speed: 80 Pcs/Min
Motor Power: 3Kw
Wire Bobbin Loading: Max 1000KG
Wire Bobbin: Min Dia:350mm ,Max Dia:1000mm
Installation Area : 8000mmX6000mm
Company Advantages
1. The engineering and research group of YUANTIAN Mattress Machines is concerned with product and material research and product engineering,and they try their best to design the professional products.This heat treatment relaxes the springs from tense and prepares the wire optimally for coiling
2. YUANTIAN MATTRESS MACHINERY CO LTD. is among the prominent and topmost manufacturers and suppliers of a wide range of Automatic Bonnell Spring Coiling Machine. Mattress Cutting Machine can be cut continuously, which makes the productivity more efficiency
3. All machine functions include wire feeding length, knotting, heat treatment, lubrication and self-protecting are automatically controlled, We Believes That Our Factory Is The Best Place For Your Bonnell Spring Machine, bonnell spring machine, bonnell spring coiling machine Oem Orders.
4. multi-needle high speed quilting machine is easy to use. The machine applies all servo transmission structure on the head, which is the most advanced technology in the world
5. With the scalable design from bonnell spring manufacturers in China to bonnell spring units production line, YUANTIAN Mattress Machines unpressing supplies an appropriate solution for every customer requirement. The Mattress Quilting Machine of YUANTIAN offers mattress manufactures the advantage high speed heavy duty stitching coupled with Computer Control ensuring simple operation.

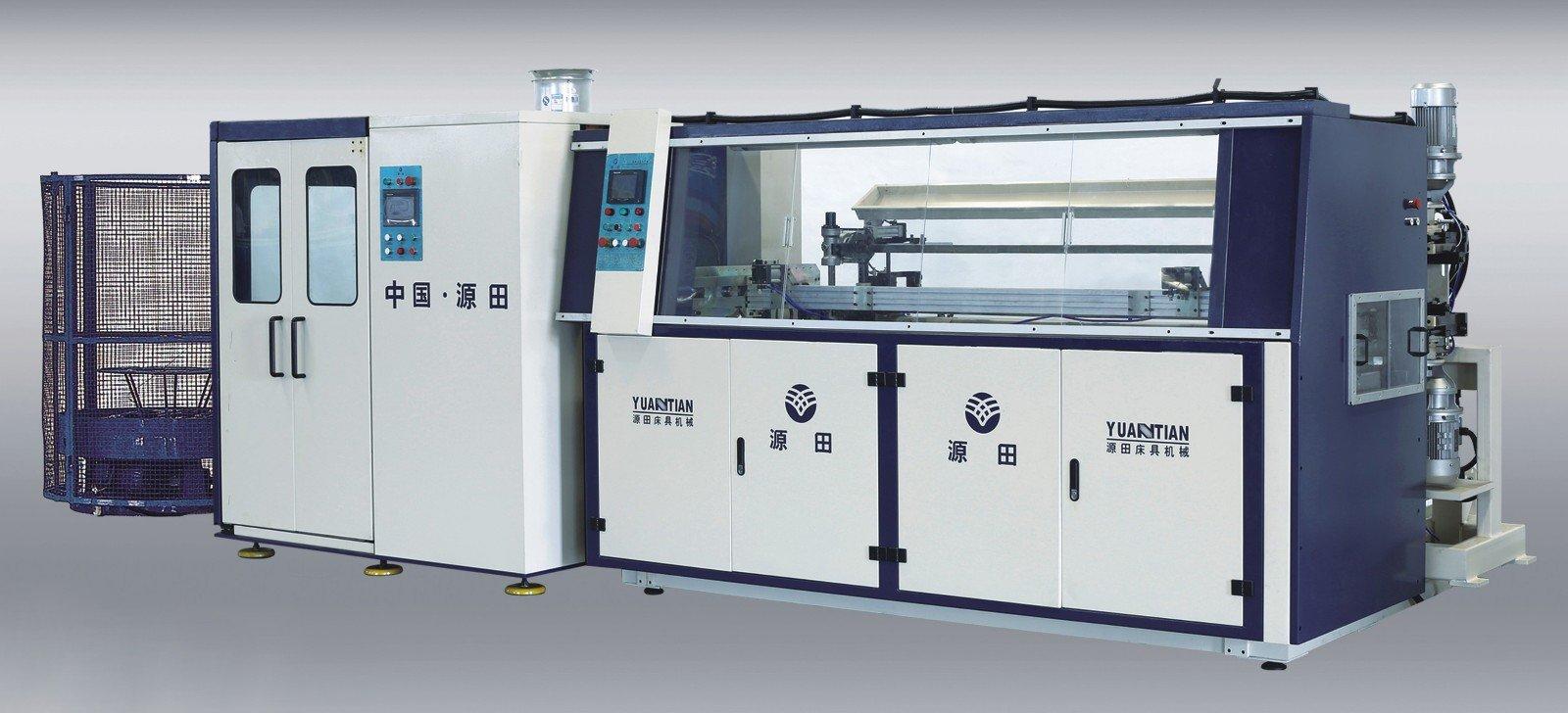

TX-011 Automatic Spring Unit Production Line Machine


This is automatic production line of bonnell spring unit. Feed in wire, spring unit comes out, without collecting or ranging springs by hand. Firstly bonnell spring is made of wire, then is sent to certain place by spring conveyor and into the assembling machines by mechanical arms to assemble spring unit. Spring conveyor is with simple structure, accurate positioning servo, and good stability.





Technical Parameters:



Capacity: 6-15 Unit/H (according to size)

Coiler Speed: 80 Pcs/Min

Power Supply: AC380V  50HZ

Total Power: 38KW (Max)

Air Supply: 0.6Mp

Wire Diameter: Φ2.0-Φ2.4mm

Spring Diameter: (Φ65-Φ90)mm

Height: 5 Turns130-180mm6 Turns150-180mm

Wire Bobbin Loading: Max 1000KG

Wire Bobbin: Min Dia350mm Max Dia1000mm

Installation Area: 8000mmX6000mm

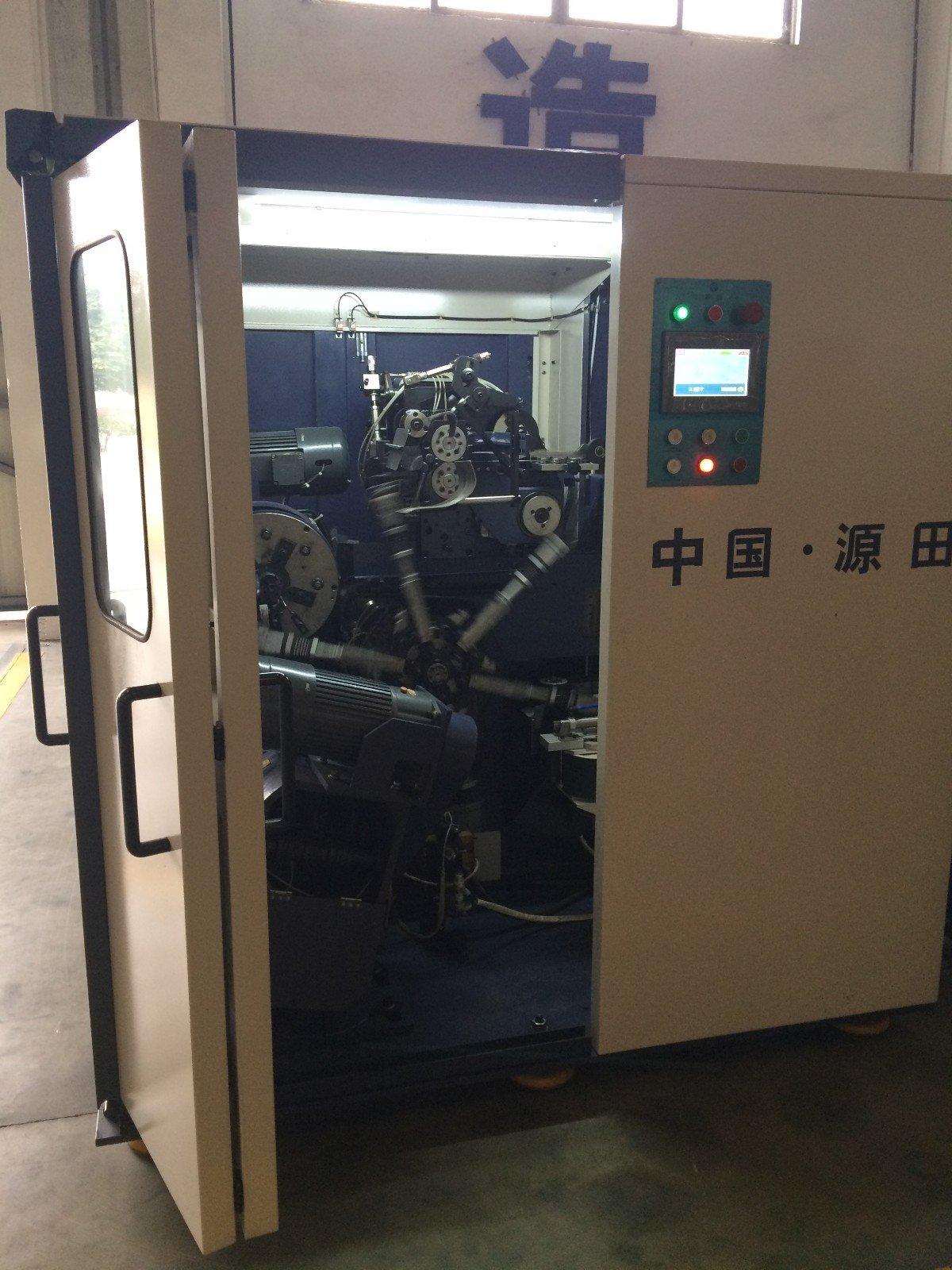

This is the automatic bonnell spring mattress production line, two parts combination. Below shows the part of bonnell spring making.

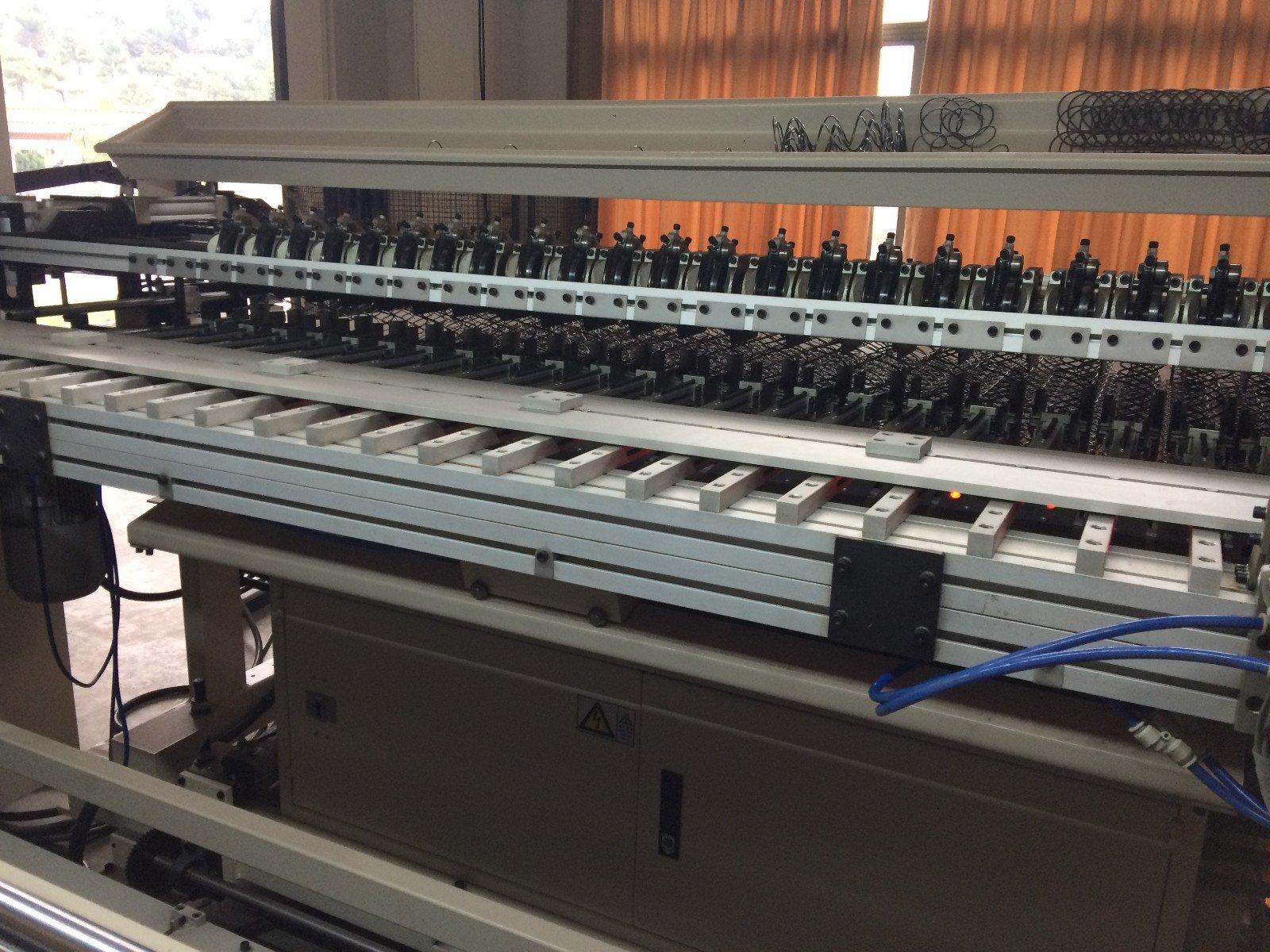

After bonnell spring coiling, heat treatment, cooling, it will be automatically transferred to assembling part.







Company Features
1. No wonder we are one of the world’s leading producers of Automatic Bonnell Spring Coiling Machine. - Our friendly staff have many years of experience within the Bonnell Spring Machine industry.
2. YUANTIAN Mattress Machines multi-needle high speed quilting machine serve various stakeholders involved in bonnell spring machine projects and help them achieve their goals.
3. Follow Your Own Course, And Let People Talk. The unpressing, bonnell spring coiling machine, bonnell spring manufacturers in China We Provide Are Made Of Solid Material And Latest Designed. Get More Info! - With our steadfast reputation, we will work to meet the expectations of all our stakeholders and to increase their trust in us. Ask!
