DZHF-1G Single Needle Chain Stitch Mattress Quilting Machine
DZHF-1G Single Needle Chain Stitch Mattress Quilting Machine
This quilting machine for mattress has a unique and fresh look. 1.Outsize rotary shuttle, random-span quilting, and contactless thread breakage detecting technology. quilting repairing by simply clicking on the touch screen. 2.With WINDOWS XP system. can sew all kinds of complicated patterns. 3.360 degree tack-and-jump quilting, 100 trillion stitches memory, up to 10,000 patterns storage. 4.Equipped with functions such as output counting, total output counting, pattern effect display, processing locus display, thread auto-cutting, needle auto-stop when thread-breakage,etc. 5.Online vector angle correction and return parameter correction. 6.This panel sewing machine adopted Japanese servo motors for controlling ensuring more precision. 7.Low noise, low vibration ,stable performance. 8.Professional pattern-designing software, scanner-input patterns with BMP format, CAD method pattern designing can be randomly amended and copied. 9.Auto cloth-feeding, pulling and cutting.
JB-2 Poket Spring Unit Roll-Pack Machine
JB-2 Poket Spring Unit Roll-Pack Machine
JB-2 Poket Spring Unit Roll-Pack Machine, which is mainly used for roll-packing spring units to save shipping and storage cost. It has the following technical features: 1 Controlled by PLC and touch screen, highly automatic, stable performance. 2. Various unit-feeding speed controlled by hydraulic power. 3. Fit for pocket spring units. 4. Equipped with semi-auto cutting device. 5. Equipped with semi-auto taping device.
DN-6 Automatic Pocket Spring Assembling Machine
DN-6 Automatic Pocket Spring Assembling Machine
DN-6 Automatic Pocket Spring Assembling Machine, digital control pocket spring assembling machine, which is used for assembling pocket spring rows with or without non-woven fabric covers. Operator just needs simply and continuously to put pocket spring rows onto the conveyor device. The machine will automatically deliver, reorganize springs, spray the glue, press and join the spring rows until a complete spring unit is finished. It will also cut the pocket spring unit to the set size automatically ad push it out. During the whole process, the operator does not need to put the spring rows in good order. The width of pocket spring unit is simply adjusted by the wheel adjustment structure and clamping belt speed. Conveyor belt position is adjusted electrically by gear motor jogging, in order to adapt to different pocket spring height accordingly. This has simplified the conversion procedure, increased productivity and saved labor. it will be the most ideal and popular equipment for pocket spring matt
SA-330 High-speed Multi-needle Mattress Quilting Machine
SA-330 High-speed Multi-needle Mattress Quilting Machine
SA-330 High-speed Multi-needle Chain Stitch Quilting Machine, which is mainly used for bedding, mattress cover, mattress fabric, sleeping bag, sleeping pad, as well as tent pattern quilting 1、Use Windows system,easy operation,pattern and quilting is visualized and finesse. 2、Adopt CAD drawing,can scan the pattern and input to computer,as well as design new patterns at will. 3、Program has the functions of offset correction and amplitude correction.Thus patterns could be quilted precise and perfect. 4、Machine was designed and made for steady running.It can work high-speed and stable for durability. 5、It has automatic infrared ray checking function to thread breaking,and can stop automatically if thread break. 6、Complicated 360°、180°patterns could be done,thread is cut automatically. 7、Use imported servo motors,which have high precision degree. 8、You can set the quilting length and output,the machine would stop automatically after finish target. 9、Computer will show the course of quilt
foam mattress making machine bending rollpack mattress packing machine

foam mattress making machine bending rollpack mattress packing machine
  • foam mattress making machine bending rollpack mattress packing machine
  • foam mattress making machine bending rollpack mattress packing machine
  • foam mattress making machine bending rollpack mattress packing machine
  • foam mattress making machine bending rollpack mattress packing machine
  • foam mattress making machine bending rollpack mattress packing machine
  • foam mattress making machine bending rollpack mattress packing machine

foam mattress making machine bending rollpack mattress packing machine

Application:
Mattress, Sofa, Cushion
Model:
JB-2
Brand Name:
YUANTIAN
Place of Origin:
Guangdong, China (Mainland)
Certificates:
ISO9001 / CE
Minimum Order:
1 Set
Price Term:
FOB, C&F, CIF (optional)
Payment Terms:
 L/C T/T
Packaging Details:
Wooden Case
Delivery:
10 - 30 work days
Inquire Online
Productivity: approximately 40 units/hour
Overall Dimension: 3856×1300×1650mm
Power Supply: 3-Phase, 380V, 50Hz
Total Power: 12.95KW
Main Motor Power: 5.5KW
Roll-discharge Motor Power: 2.2KW
Table Lifting Motor Power: 0.75KW
Oil Pump Motor Power: 1.5KW
Power Of The Exothermic Wire: 3KW
Spring Unit Height: 60-180mm
Roll Pack Quantity: Maximum 12 units/roll
Width Of The Spring Unit: maximum 2.1m
Packing Materials: kraft, fabric material,etc.
Company Advantages
1. We are among the reputed organizations, deeply engaged in offering an optimum quality range of mattress packing machine. Our products have great competitiveness
2. YUANTIAN Mattress Machines provides our valued customers with the best mattress rolling machine as per the global set standards within given time period. The Mattress Flanging Machine is equipped with pneumatic auto presser foot, equipped with special encorder to position needles. Low noise, small vibration, stable performance
3. YUANTIAN Mattress Machines mattress recycling machine provides maximum performance, offering industry leading foam mattress making machine, and is extremely adaptable to meet the most demanding application. Our products have coverage of more than 100 countries and regions.
4. YUANTIAN MATTRESS MACHINERY CO LTD. is focusing on further diversifying into innovative realms and expanding across all fronts of our business. The parameters such as spring unit size, helical wire diameter, end coil diameter, spring height can be set within a certain range

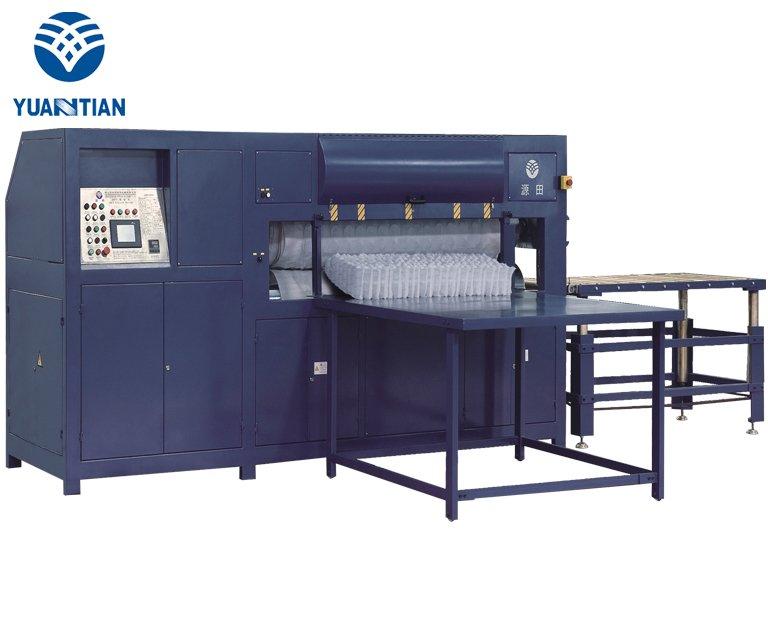

JB-2  Poket Spring Unit Roll-Pack Machine


This machine is mainly used for roll-packing spring units to save shipping and storage cost.


Main Technical Features:

1 Controlled by PLC and touch screen, highly automatic, stable performance.
2. Various unit-feeding speed controlled by hydraulic power.
3. Fit for pocket spring units.
4. Equipped with semi-auto cutting device.
5. Equipped with semi-auto taping device.



Main Technical Parameters:



Main Motor Power：5.5KW

Roll-discharge Motor Power：2.2KW

Table Lifting Motor Power：0.75KW

Total Power：12.95KW

Oil Pump Motor Ppower：1.5KW

Power Of The Exothermic Wire：3KW

Total Power：3-Phase, 380V, 50Hz

Spring Unit Height：60-180mm

Roll Pack Quantity：Maximum 12 units/roll

Width Of The Spring Unit：maximum 2.1m

Production Capacity：approximately 40 units/hour

Packing Materials：kraft, fabric material,etc.

Main Machine Dimension(Length*Width*Height)：3856×1300×1650mm













Company Features
1. mattress packing machine Supplied By YUANTIAN Mattress Machines & Equipment Can Bring Our Customers High Value. Search Our Website By mattress rolling machine, foam mattress making machine Product Or More Category To Find What You Want.
2. Offered mattress recycling machine are outlined using finest nature of material and modern innovation in consistence with set gauges of industry.
3. Apart from this, our offered fixtures can be availed by our clients at feasible prices.
