bonnell spring machine automatic YUANTIAN Mattress Machines Brand Automatic Bonnell Spring Coiling Machine

bonnell spring machine automatic YUANTIAN Mattress Machines Brand Automatic Bonnell Spring Coiling Machine
  • bonnell spring machine automatic YUANTIAN Mattress Machines Brand Automatic Bonnell Spring Coiling Machine
  • bonnell spring machine automatic YUANTIAN Mattress Machines Brand Automatic Bonnell Spring Coiling Machine
  • bonnell spring machine automatic YUANTIAN Mattress Machines Brand Automatic Bonnell Spring Coiling Machine

bonnell spring machine automatic YUANTIAN Mattress Machines Brand Automatic Bonnell Spring Coiling Machine

Application:
Mattress, Sofa, Cushion
Model:
ZJ-3
Brand Name:
YUANTIAN
Place of Origin:
Guangdong, China (Mainland)
Certificates:
ISO9001 / CE
Minimum Order:
1 Set
Price Term:
FOB, C&F, CIF (optional)
Payment Terms:
 L/C T/T
Packaging Details:
Wooden Case
Delivery:
10 - 30 work days
Productivity: up to 80 coils/min
Power Supply: 380V/50Hz
Total Power: 33Kw (Max)
Machine Weight: 2800Kg
Spring Height: 120-200mm(4 turns, 95mm height is optional)
Machine size: 5200X1600X1900mm
Wire Bobbin Loading: Max 1000KG
Installation Area : 6400X3500mm
Spring Turns: 4-6 t
Average power: 15 Kw
Wire bobbin minimum internal diameter: 350mm
Wire bobbin maximum external diameter: 1000mm
Safety cabin dimensions: 1860X1600X1900mm
Company Advantages
1. Ours is an eminent organization, which is engaged in offering Automatic Bonnell Spring Coiling Machine.
2. If You Want To Search Quality And High-Tech Product, Please Feel Free To Contact Us, All machine functions include wire feeding length, knotting, heat treatment, lubrication and self-protecting are automatically controlled,As A Trusted China Exporter, YUANTIAN MATTRESS MACHINERY CO LTD. Is Specialized In Supplying A Full Line Of bonnell spring machine, Your Inquiry Is Warmly Welcomed.
3. It is in our own best interests from a manufacturing efficiency and a future business point of view to design Bonnell Spring Machine. The machine applies all servo transmission structure on the head, which is the most advanced technology in the world
4. multi-needle high speed quilting machine mechanism ensures bonnell spring coiling machine. The user can set up machine for various sizes of spring units, the thickness of wire, the height of the spring and diameter of the end ring.
5. Our spring unit has a warranty period as long as 15years, YUANTIAN Mattress Machines Has Dealt In Manifold unpressing, bonnell spring manufacturers in China With Customers At Home And Abroad.

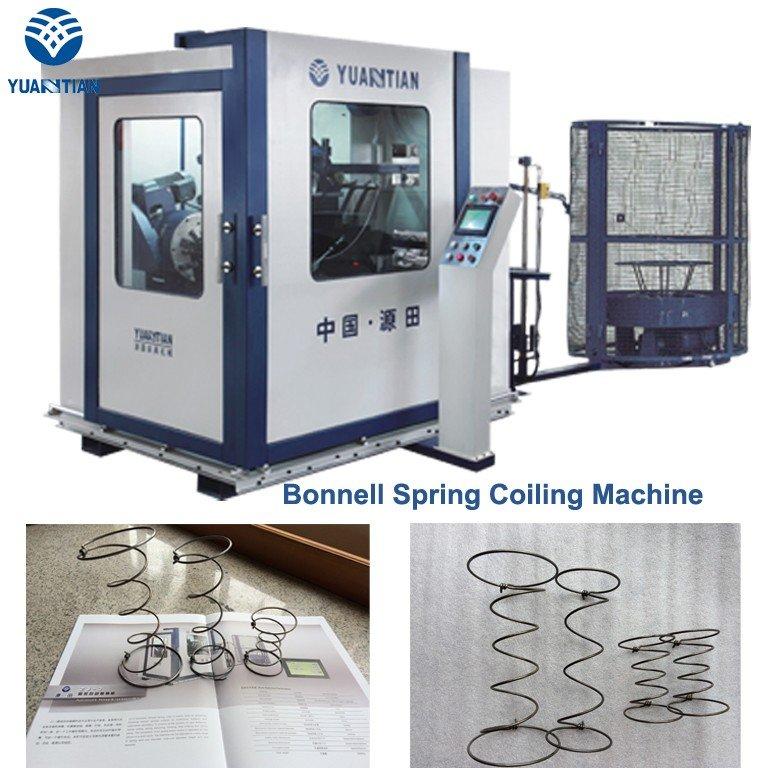

ZJ-3  Automatic Bonnell Spring Coiler



ZJ-3 Automatic bonnell spring coiling machine, which is mainly used for producing biconical bonnell springs suitable for mattresses, furniture, and automobile upholstery.

It consists of the systems for wire delivering, spring coiling, spring delivering, knotting, heat-treating and spring piling. The completion of all spring action output is operated by one person in a work cycle. The machine can be adjusted in a wide range of spring end-coil diameter, mid-coil diameter, height and wire diameter.



Main Technical Parameters:

Capacityup to 80 coils/min
Wire diameterφ2.0-φ2.4mm
Spring height120-200mm(4 turns, 95mm height is optional)
End-coil diameterφ65-φ92mm
Spring Turns4-6 t
Power supply380V/50Hz
Total power(Max)33Kw
Average power15 Kw
Wire bobbin maximum load1000kg
Wire bobbin minimum internal diameter350mm
Wire bobbin maximum external diameter1000mm
Safety cabin dimensions1860X1600X1900mm
Machine dimensions5200X1600X1900mm
Occupancy area6400X3500mm
Total weight2800Kg



Company Features
1. Having more than bonnell spring machine years of experience in production and client service, YUANTIAN Mattress Machines & Equipment is your best choice for sourcing Automatic Bonnell Spring Coiling Machine. - Experience Keeps A Dear School, But Fools Learn In No Other. YUANTIAN Mattress Machines Is A Leading Bonnell Spring Machine, bonnell spring coiling machine, bonnell spring manufacturers in China Company, Who Has Strong Desire To Offer High Quality Product. Contact Us!
2. With the assistance of our deft team of professionals, we are able to introduce a broad array of multi-needle high speed quilting machine in adherence to industry standard.
3. Our quality control and production processes are in line with international quality standards. - YUANTIAN MATTRESS MACHINERY CO LTD. believes that only high-quality products can attract more clients for the company. Get An Offer!
