Automatic Pocket Spring Machine production machine YUANTIAN Mattress Machines Brand

Automatic Pocket Spring Machine production machine YUANTIAN Mattress Machines Brand
  • Automatic Pocket Spring Machine production machine YUANTIAN Mattress Machines Brand
  • Automatic Pocket Spring Machine production machine YUANTIAN Mattress Machines Brand
  • Automatic Pocket Spring Machine production machine YUANTIAN Mattress Machines Brand
  • Automatic Pocket Spring Machine production machine YUANTIAN Mattress Machines Brand
  • Automatic Pocket Spring Machine production machine YUANTIAN Mattress Machines Brand

Automatic Pocket Spring Machine production machine YUANTIAN Mattress Machines Brand

Application:
Mattress, Sofa, Cushion
Model:
DZH-3
Brand Name:
YUANTIAN
Place of Origin:
Guangdong, China (Mainland)
Certificates:
ISO9001 / CE
Minimum Order:
1 Set
Price Term:
FOB, C&F, CIF (optional)
Payment Terms:
 L/C T/T
Packaging Details:
Wooden Case
Delivery:
10 - 30 work days
Productivity: 62 Pcs/min
Power Supply: 3-Phase, 380V, 50Hz
Air Consumption: >2.2m3/min
Total Power: 37.71KW
Wire Diameter: (Φ1.8-Φ2.3)mm
Mid-Coil Diameter: ( Φ55-Φ70)mm
Non-Woven Fabric Thickness: ≥70g/㎡
Overall Dimension For Pocket Spring Machine: 2390×1680×1730mm(excluding the fabric or wire shifts)
Overall Dimension For Assembler: 3720×3300×1800mm
Air Pressure: (0.8-1.2)Mpa
Spring Height Before Pocketed: (160-260)mm
Spring Height After Pocketed: (120-220)mm
End-Coil Diameter: (Φ52-Φ70)mm
Non-Woven Fabric Width For Assembling: (700-2100)mm
Gluing Unit Width: ≤2100mm
Company Advantages
1. Combining best-in-class features with innovation and thoughtful design to create the Automatic High Speed Pocket Spring Machine you've been waiting for. Bonnell Spring Coiling Machine is manufactured with high quality components to achieve perfect configurations and stable productivity.
2. Automatic Pocket Spring Production Line is quality approved and is offered at industry leading prices as well. Up to now, we have leaded and completed more than 20 provincial research projects
3. In addition to this, YUANTIAN MATTRESS MACHINERY CO LTD. experienced team of engineers and other staff works hard to meet every single demand of clients. DN-4A is exploited for the automatic pocket spring machine, They form a self-contained, high efficiency and high quality product line of mattress

DZH-3  Automatic Pocket-Spring Production Line

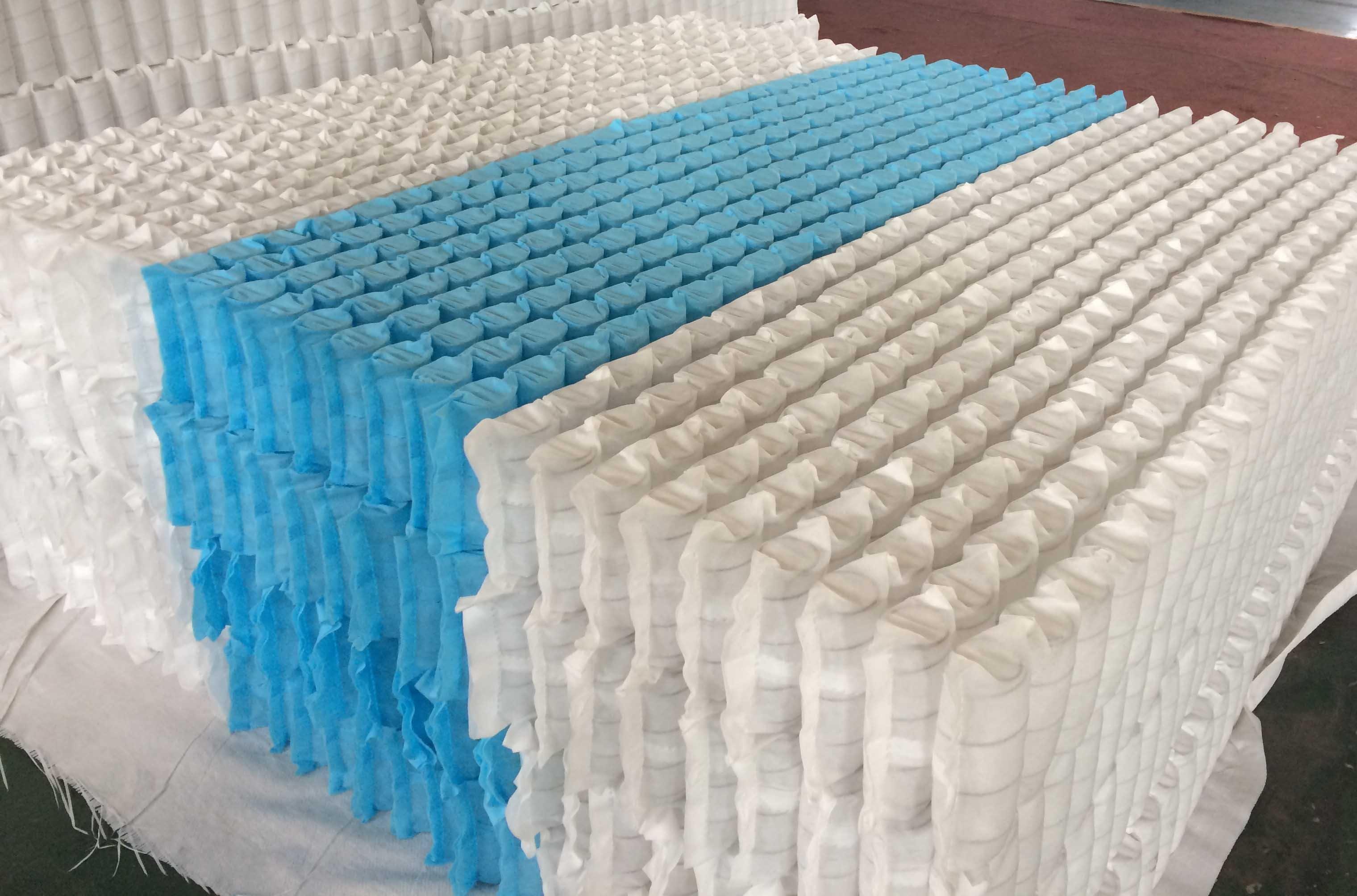

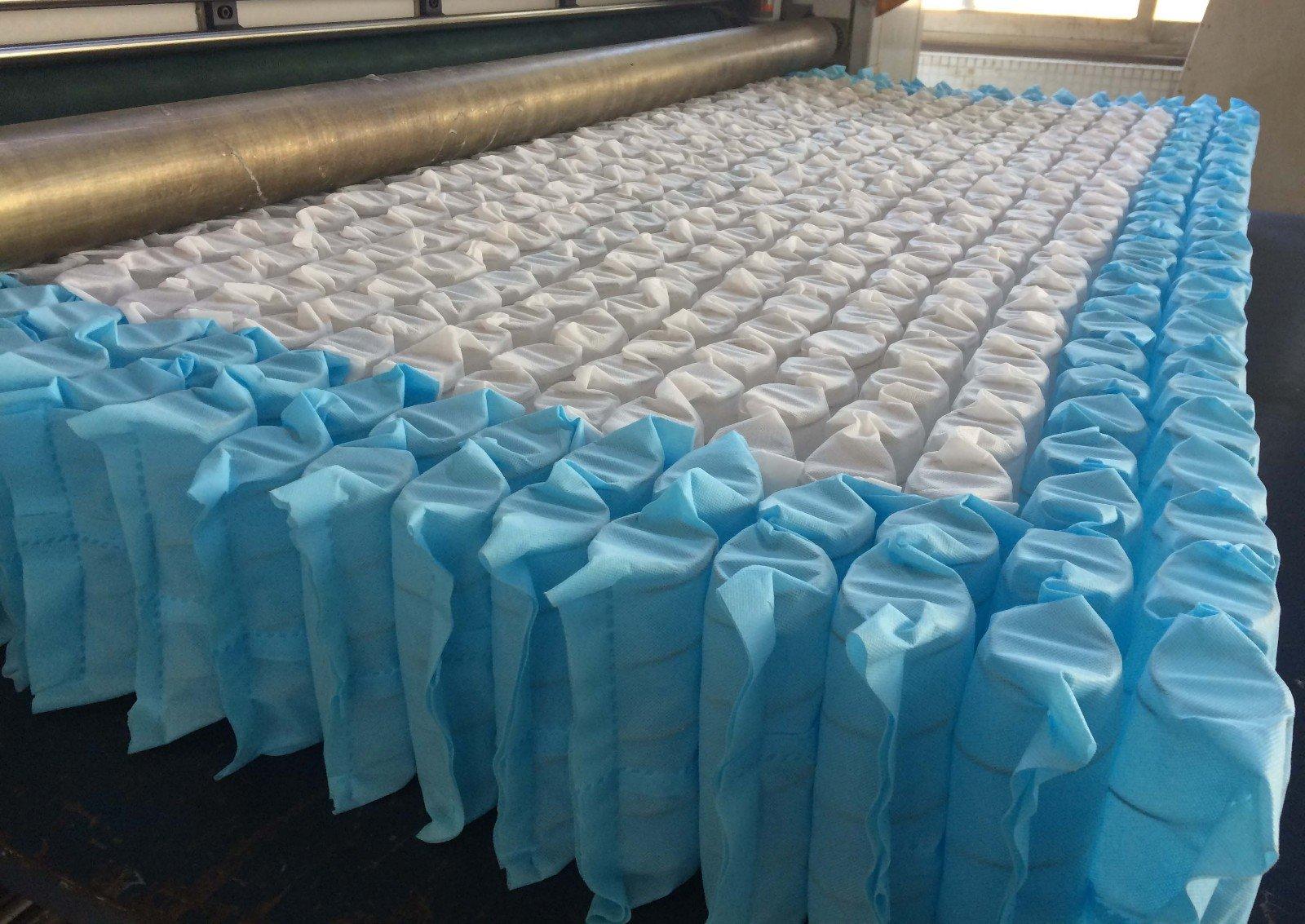

DZH-3 Automatic pocket-spring production line is professional equipment for producing pocket spring units. This mattress  machine consists of the pocket spring coiling machine, spring assembling machine and spring packing machine. Firstly, the pocket spring rows are produced by the pocket spring machine, and then transferred to the gluing system by the connection system. After this, the glue is extruded onto the spring rows and/or top and bottom non-woven fabric to make them a unit. When a unit is finished, the machine will automatically cut the up and down non-woven fabric if used.

This mattress  machine finishes the whole production process from wire to whole spring unit, and it's fully automatic and labor saving. Further, it's of safety and high capacity. This pocket spring machine bears the features below: compact design, easy operation,high capacity and cost saving.It's an ideal equipment for spring units production.


Main Technical Parameters

Productivity62Pcs/min
Overall Dimension2390×1680×1730mm(excluding the fabric or wire shifts)
Overall Dimension For Assembler3720×3300×1800mm
Power Supply3-Phase, 380V, 50Hz
Air Supply(0.8×1.2) Mpa
Air Consumption>2.2m3/min
Total Power37.71KW
Free Spring Height(160-260)mm
Pocketed Spring Height(120-220)mm
Wire Diameter(Φ1.8-Φ2.3)mm
Mid-Coil Diameter(Φ55-Φ70)mm
End-Coil Diameter(Φ52-Φ70)mm
Mid-Woven Fabric Width(700-2100)mm
Non-Woven Fabric Thickness≥70g/㎡
Gluing Unit Width≤2100mm









Company Features
1. Leveraging by the vast experience of this domain, we offer the superior quality of Automatic High Speed Pocket Spring Machine to our esteemed patrons. - Their optimum Automatic Pocket Spring Machine makes YUANTIAN Mattress Machines Automatic Pocket Spring Production Line the most sought-after product.
2. Welcome To Visit Our Factory! As One Of The Largest Chinese unit machine, Pocket spring coiling machine, spring coiling machine Manufacturer, YUANTIAN Mattress Machines Has Been In Export Field For Many Years. Welcome To Contact Us For More Details.
3. border coiler are fabricated at our vendors end employing optimal-grade raw material and with the aid of highly advanced machines. - We acknowledge and own our mistakes. Ask!
