Overall Dimension: 2390×1720×1730mm
Power Supply: 3Ph, 380V, 50HZ
Air Consumption: ＞0.8m3/min
Total Power: 35KW
Free Spring Height: （160～260）mm
Pocketed Spring Height: （120～220）mm
Wire Diameter: （Φ1.8～Φ2.3）mm
Mid-Coil Diameter: （Φ62～Φ75）mm
Mid-Woven Fabric Width: (380～600)mm
Non-Woven Fabric Thickness: ≥70g/㎡
YUANTIAN MATTRESS MACHINERY CO LTD. has not only enjoyed high polularity and good reputation from end-user, but also established solid and long-term business relationship with all sorts of companies. The parameters such as spring unit size, helical wire diameter, end coil diameter, spring height can be set within a certain range2.
We are one of the foremost manufacturers and suppliers of superior quality Automatic High Speed Pocket Spring Machine. The Mattress Flanging Machine is equipped with pneumatic auto presser foot, equipped with special encorder to position needles. Low noise, small vibration, stable performance3.
Mattress Cutting Machine can be cut continuously, which makes the productivity more efficiency, YUANTIAN Mattress Machines Frequently Improve Our Automatic Pocket Spring Production Line, Automatic Pocket Spring Machine As Technology Changes Fast In This Industry.4.
We are one of the leading manufacturers, wholesalers, retailers, exporters and suppliers of a superior quality range of unit machine. Movable pocket spring buffer/Quickly & expediently to feed pocket springs

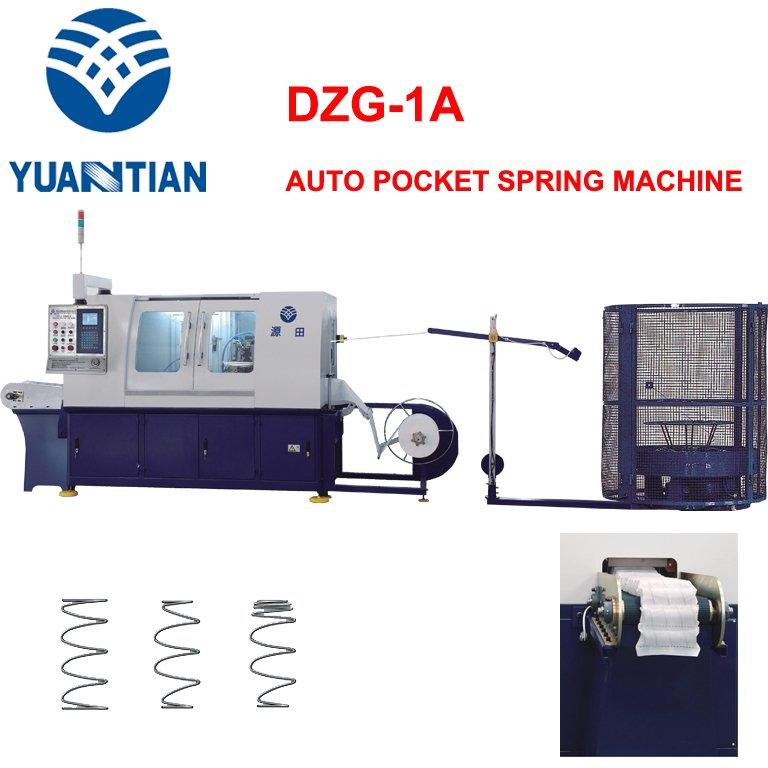

DZG-1A Automatic Pocket Spring Machine
This machine is maninly used for producing center-welded pocket spring rows for upholstered spring mattresses. This pocket spring machine is controlled by PLC and touch screen, and can run automatically.
1. Coiling part is controlled by servo motor.Technical parameters can be preset and automatically stored within certain range for use whenever needed.Changing to different specifications can be realized without adjustment of the coiling device.It is easy to install and with high safety.
2. It produces center-welded pocket spring rows without spring-upright process,to avoid pocket breakage.
3. Equipped with automatic cutting device for spring rows.
4. Equipped with accident detector safety device, automatically stops when no material.
Main Technical Parmeters
|Power Supply||3 Phase, 380V, 50HZ|
|Air Consumption||over 0.8m3/min|
|Free Spring Height||160 ~ 260mm|
|Pocketed Spring Height||120 ~ 220mm|
|Wire Diameter||Ø1.8 ~ Ø2.3mm|
|Mid-Coil Diameter||Ø62 ~ Ø75mm|
|Non-Woven Fabric Width||380 ~ 600mm|
|Non-Woven Fabric Thickness||≥70g/㎡|
Possible Customized Parameter
Pocketed Spring Height : 80 ~ 160mm
Color on Machine: Blue or to order
We can offer installation, commissioning and training in buyer's factory for domestic and overseas customers.
1 year, but wearing parts, consumption material and the damage incurred by the Buyer's incorrect operation are out of the warranty range.
